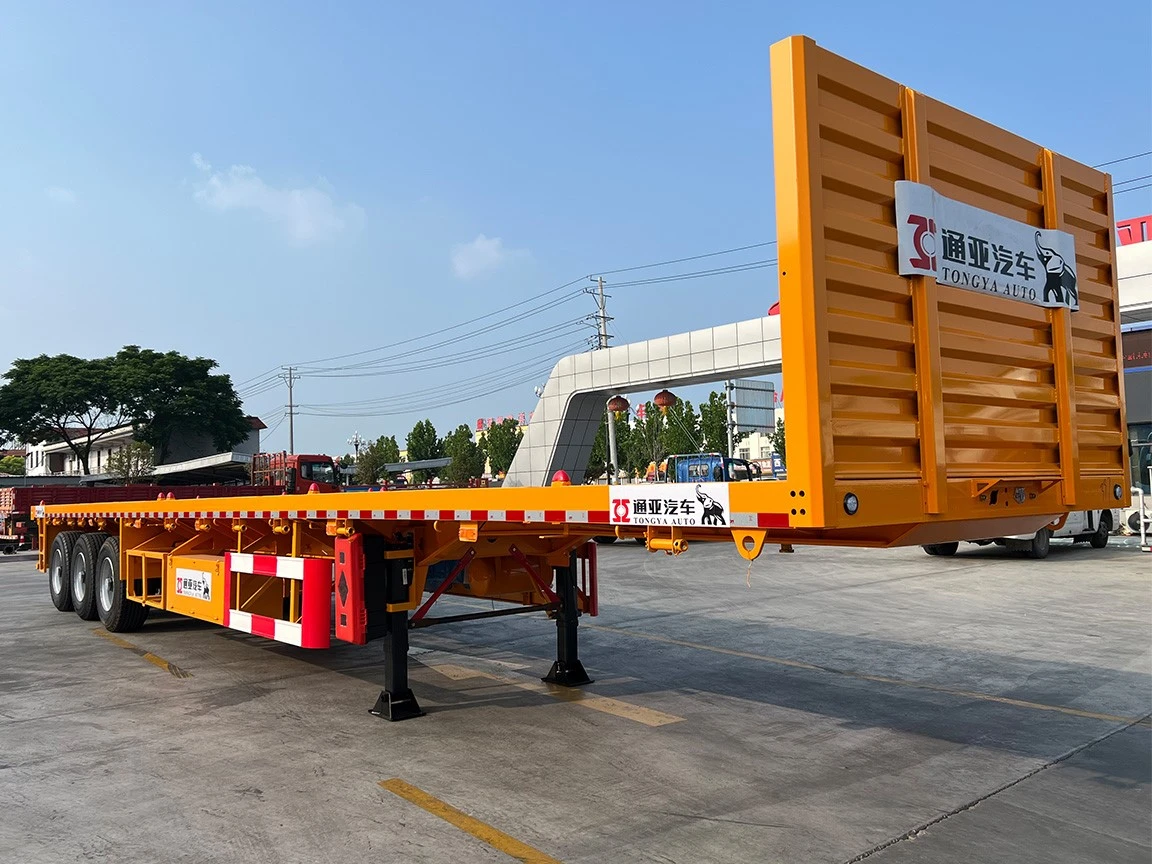

3 Axle Fuwa Flatbed Semi Trailer With Ladder
3 Axle Flatbed Semi Trailer with Ladder is popular in Asia. It was designed according to the overseas local road condition. We can also supply customized semi trailer solution according to customer's transportation demand . So, it can makes the transportation much more easier.
Product Introduction
Products Description

China Manufacture Flatbed Semi Trailer for customized
3 Axle Flatbed Semi Trailer with Ladder is popular in Asia. It was designed according to the overseas local road condition. We can also supply customized semi trailer solution according to customer's transportation demand . So, it can makes the transportation much more easier.
Products Specification
3 Axle Flatbed Semi Trailer with Ladder Specification:
| Specification | ||
| Tare weight (kg) | approx 8,500 kg | |
| Payload (kg) | 60,000 | |
| Main beam | Height 520mm, Q345B | |
| Side beam | 18# channel steel | |
| Platform | 3mm diamond platform | |
| Twist lock | 12 pcs | |
| Landing gear | JOST A300C | |
| Kingpin | 50# or 90# | |
| Brake system | Dual air brake system, WABCO brake valve | |
| ABS | According to customer's request | |
| Suspension | Air suspension | |
| Axle | 13T, 3axles, FUWA | |
| Tire | 385/65R22.5,TRIANGLE | |
| Toolbox | 1 steel box | |
