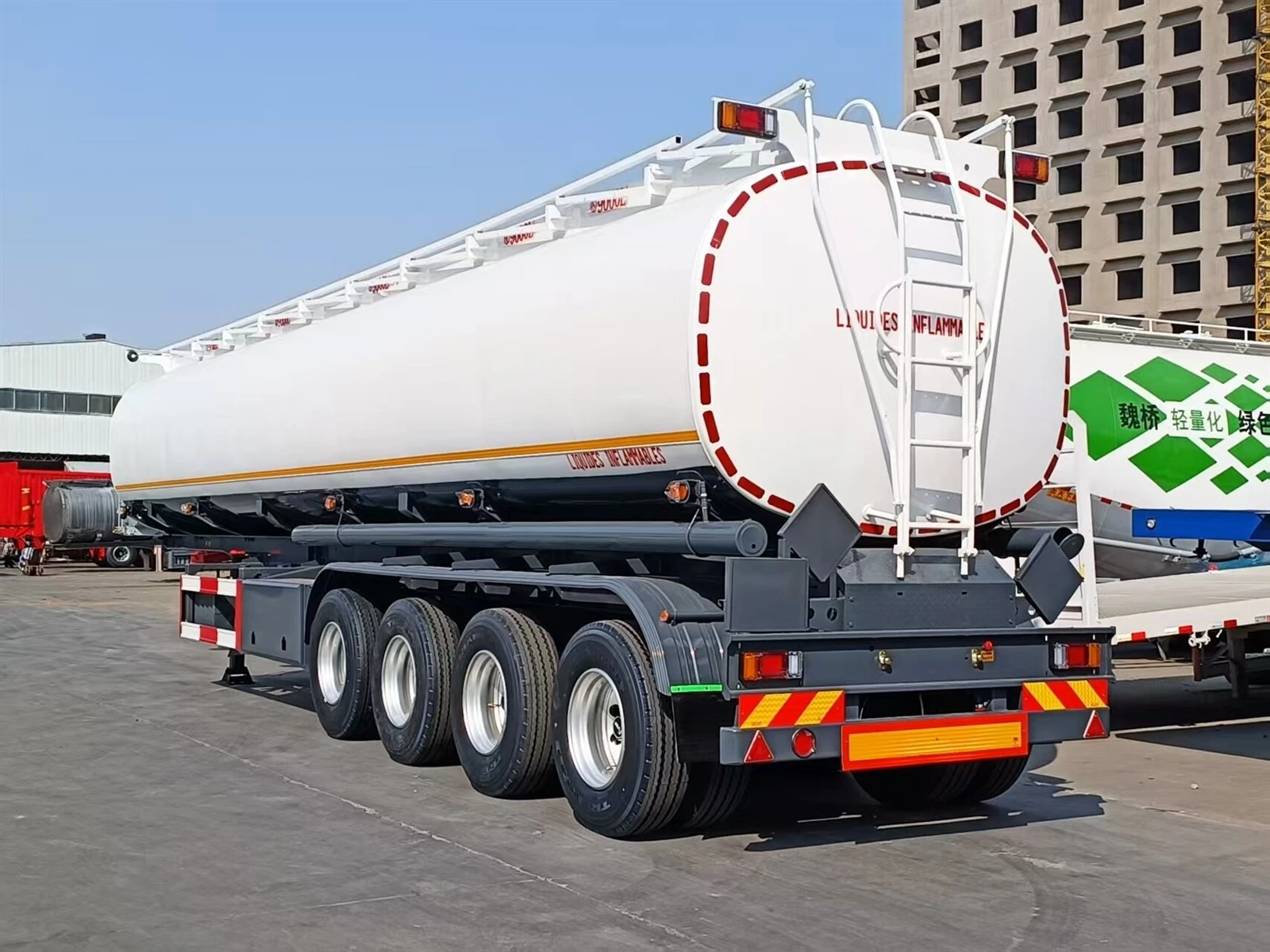

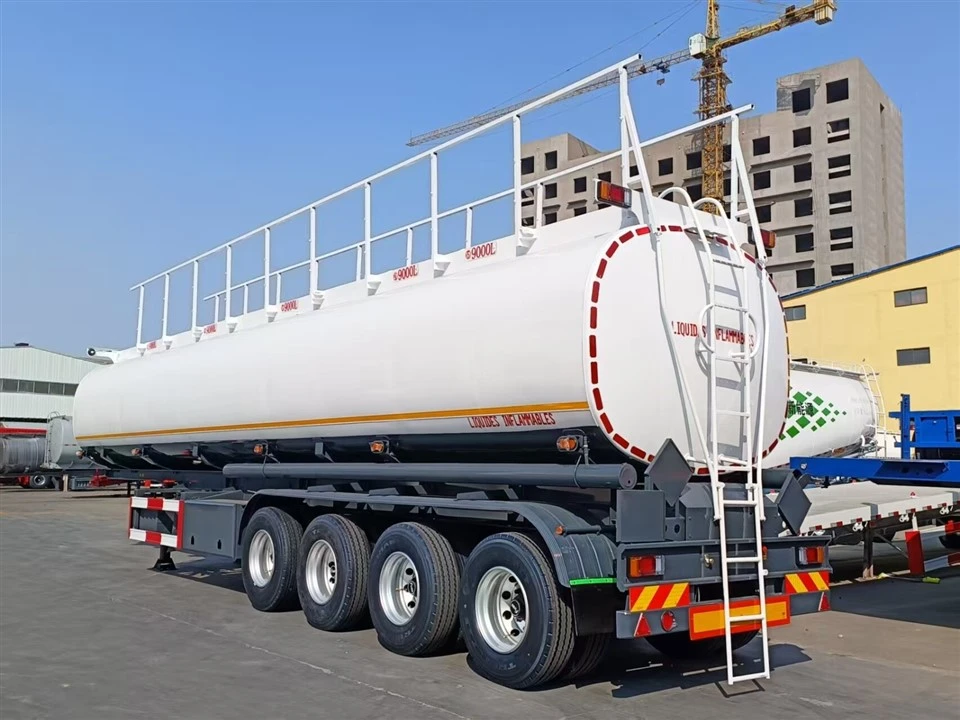

4 Axle Fuel Tanker Semi Trailer
4 Axle Fuel Tanker Semi Trailer has independent joist structure, the tank is connected to the frame through the joist, which can better distribute the weight of the tank, enhance the frame load-bearing capacity, and adapt to a variety of road conditions.
Product Introduction
Products Description
4 Axle Fuel Tanker Semi Trailer has independent joist structure, the tank is connected to the frame through the joist, which can better distribute the weight of the tank, enhance the frame load-bearing capacity, and adapt to a variety of road conditions.
4 Axle Fuel Tanker Semi Trailer has strong structure and carrying capacity, which can transport many kinds of oil products; it has good passability and can adapt to complex road conditions; there is a certain buffer space between the tank and the frame, which can reduce the shaking and bumping of the tank during transportation.
Products Specification
|
Product |
4 Axle Fuel Tanker Semi Trailer |
||
|
Tare Weight |
About 12T |
||
|
Dimension ( The exact size depends on final design) |
Length:13200 mm (outside dimension) |
||
|
Width: 2500 mm ( outside dimension) |
|||
|
Height: 3850mm (outside dimension) |
|||
|
Running mechanism |
Axle |
Brand |
BPW/Fuwa |
|
Type |
13T |
||
|
Number |
4 pcs(front axle can be lifed) |
||
|
Tyre |
Type |
12R22.5 |
|
|
Number |
17pcs(Including 1 spare tyre) |
||
|
Suspension |
Front axle with air suspension . American type mechanical suspension for 3 axle, |
||
|
Spring leaf |
Leaf width |
90mm |
|
|
Leaf thickness |
13mm |
||
|
Layer/ set |
10 Layer |
||
|
Kingpin |
Brand |
JOST brand |
|
|
Type |
Bolts type |
||
|
Diameter |
3.5 inch |
||
|
Landing gear |
Brand |
JOST brand |
|
|
Accessories |
Spare tyre carrier |
2 set |
|
|
Light |
LED light |
||
|
Voltage |
24V |
||
|
Receptacle |
7 ways (7 wire harness) and quick change type |
||
|
Toolbox |
One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
||
|
Painting |
color advised by client |
||

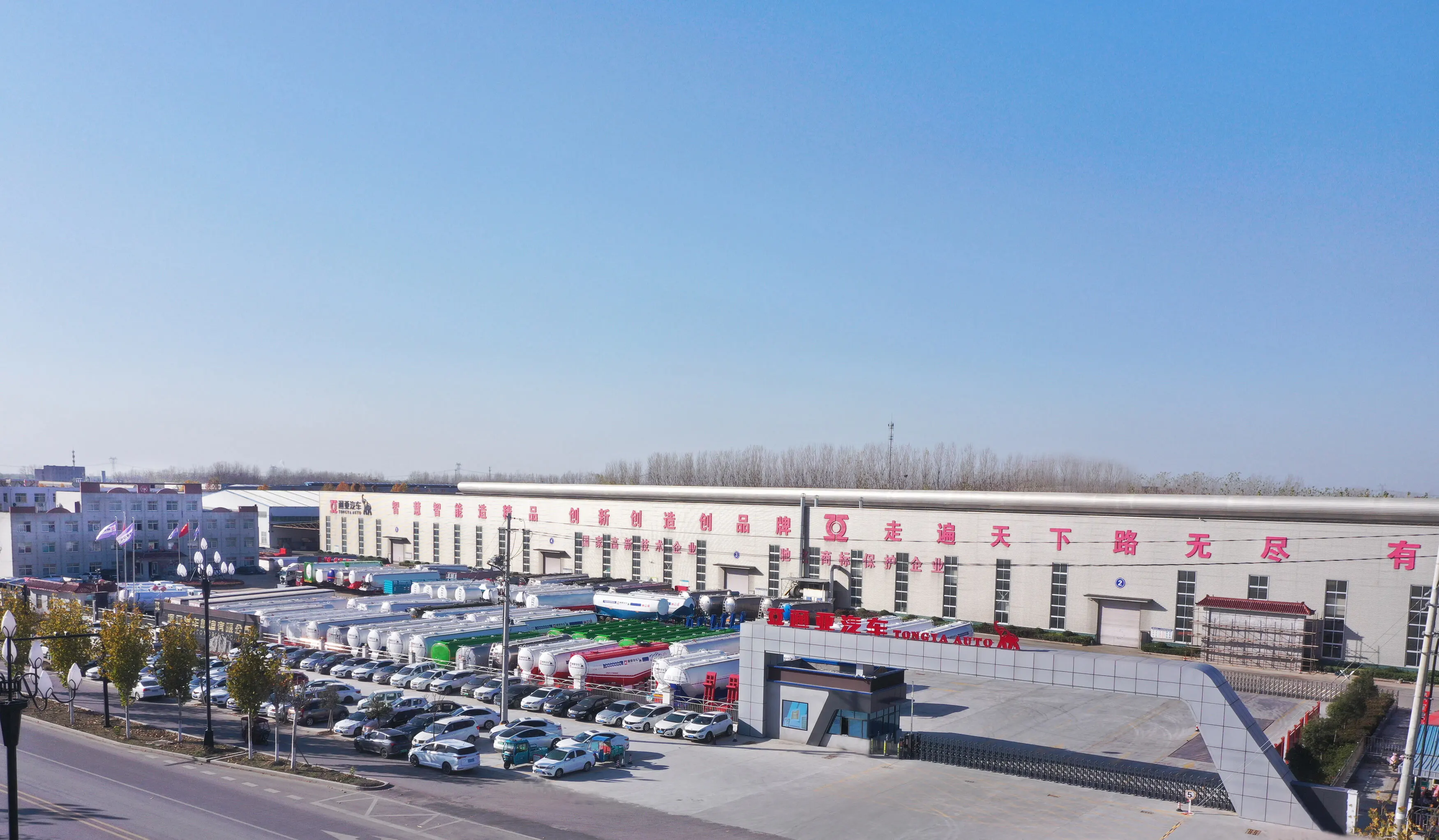

TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.
Start export business since 2006, with a complete,professional and efficient export team. We start to send engineers, factory production supervisors, purchasing manager and sales to attend international exhibition since 2008, include IAA Transportation Fair in Hanover Germany, Mid-America trucking show in USA. Every Canton Fair and Bauma China.
Hot Tags: 4 axle fuel tanker semi trailer, China 4 axle fuel tanker semi trailer manufacturers, suppliers, 18 wheeler flatbed trailer, aluminum trailer step, custom water tanks for trucks, horse and trailer trucks, under trailer fuel tank, water sprinkler tanker
