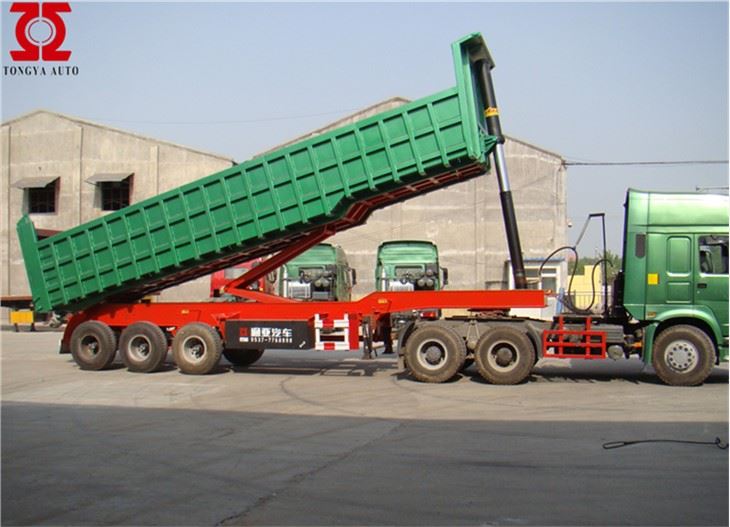

Rear Dump Trailer
Rear dump trailer is a new type of semi-trailer dump truck developed by our company. It is has lower tare weight and easy to lift and more safe, not easy to roll over.
Product Introduction
Product introduction
The Rear Dump Trailer it has low tare weight, has the characteristics of convenient lifting, high safety and not easy to overturn. Secondly, our frame and carriage have obtained national certification, and the rear discharge trailer is suitable for the transportation of bulk and scattered goods such as coal, ore, earthwork, construction materials, etc. Finally, if you are interested in our products, please contact and communicate with us in time.
Product Feature
The Rear Dump Trailer have rear tilting, fast unloading and clean unloading. Secondly, we have . Different lengths are available. High fence up to 2000mm. What's more, we have multiple ways of door opening and can provide container twist lock. Finally, our products are suitable for different road conditions.
Product Specification
Rear dump tipper Specification | |
Product name | Rear Dump semi Trailer |
Material | Q345B carbon steel |
Color | Customers Optional |
Usage | Transport Bulk Cargo,Transport sand,stone |
Main Beam | Q345B carbon steel “H”beam |
Lifting System | HYVA Brand |
Loading capacity | 80tons |
Tare weight | 8.5tons |
Painting | Sand Blasting, Anti corrosive Prime |
Dimension | 9500X2500X3700mm |
Floor | 6mm Checkered Plate |
Lighting | LED Light |
Suspension | Mechanical Suspension |
Axle | 16 Ton Fuwa/BPW |

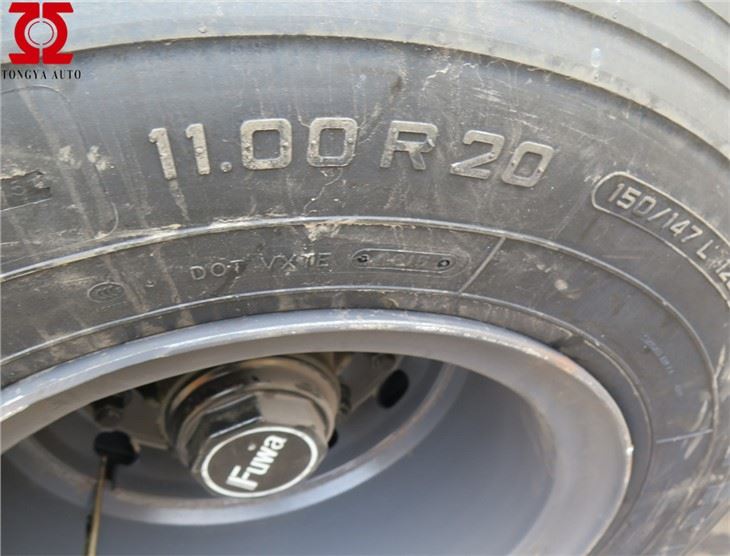

Tire | 12R20 |

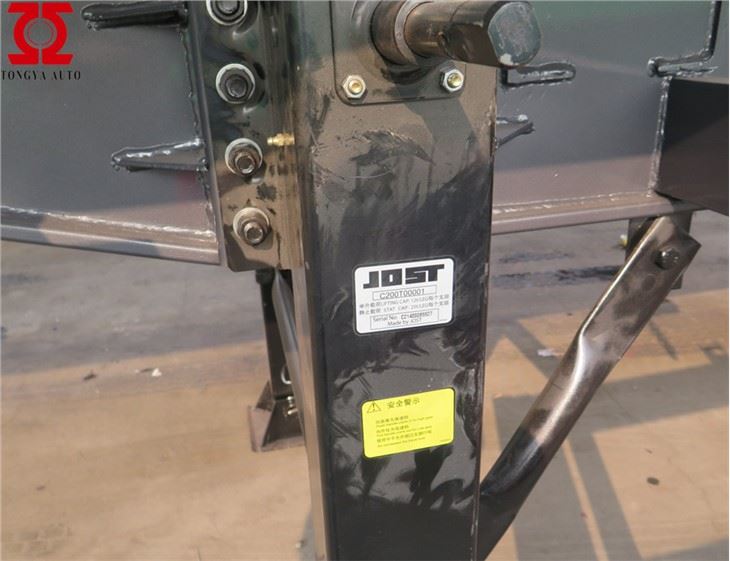

Landing Gear | Standard 28Ton |
King pin | 3.5"(90mm) |
Brake System | Dual Line Braking System |
Rim | 8.0-20 |
Leaf Spring | 90(W)mm*16 (Thickness)mm*10(Layer) |
