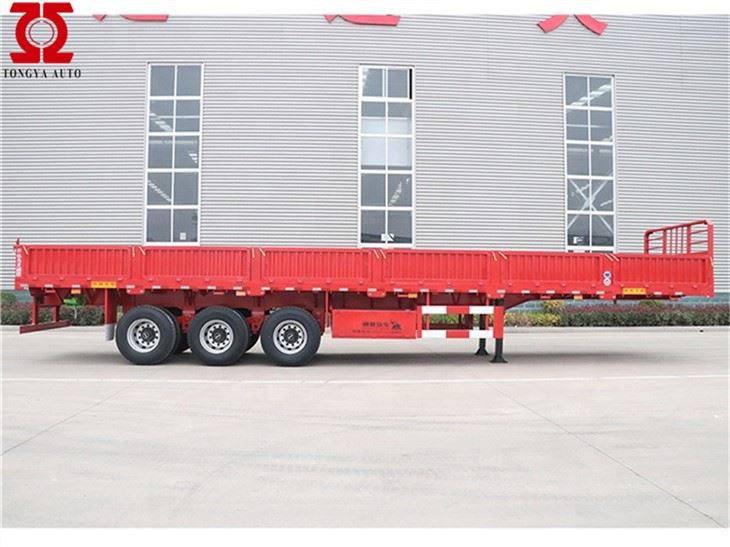

50tons Side Wall Semi Trailer

1. Our 50tons side wall semi trailer is lightweight and can carry more cargo.
2. The fence truck is made of Q345 steel, which has high strength and stable cargo capacity.
3. The axles use FUWA brand, and the outriggers use JOST and other international big brand accessories.
4. 50tons side wall semi trailer is reasonable in design, beautiful in appearance and perfect in paint finish

Send Inquiry

Product Introduction

Introduction

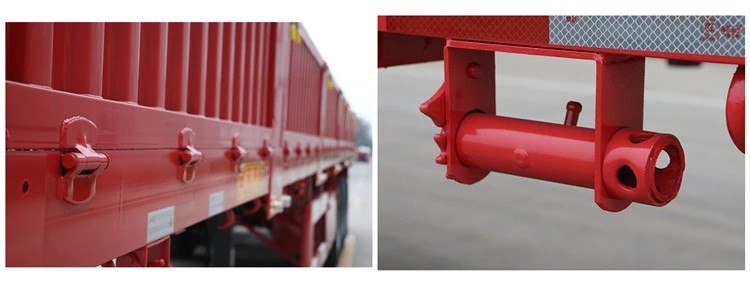

The 50tons Side Wall Semi Trailer can be used to transport many kinds of objects, from boxes to bulk goods. It has side panels that can be opened for easier unloading. Secondly, our products are widely used by transportation companies in the logistics industry. What's more, our rope tensioner can be used to fix the cargo, and the sidewall fence trailer is used to load various products and materials, such as sand, bags, poultry, etc. There are also some bulk cargoes which are very widely used in the transportation industry. Finally, if you feel interested in our products, please contact and communicate with us in time.

Feature

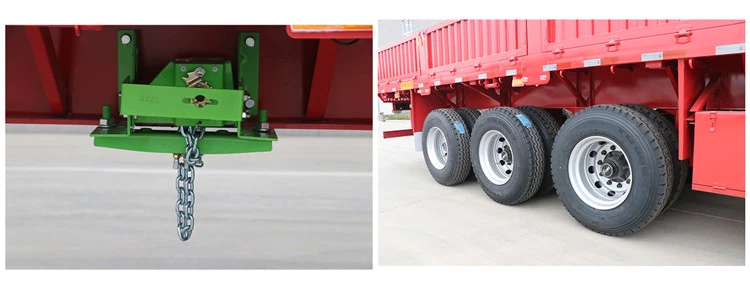

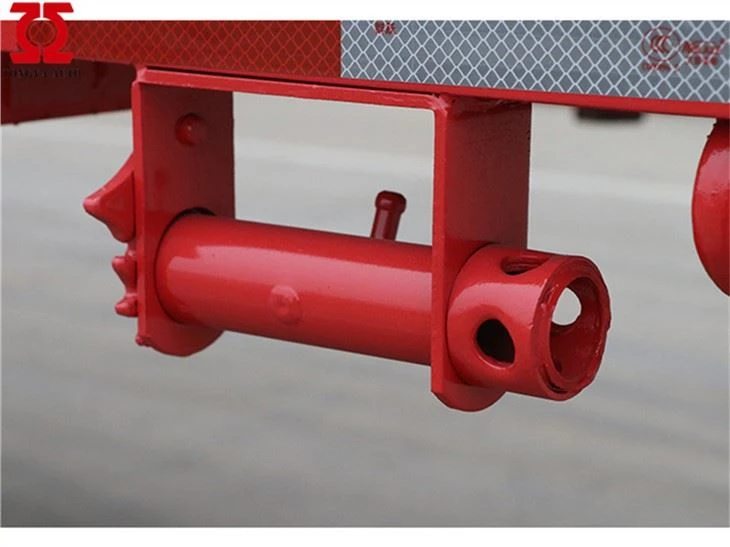

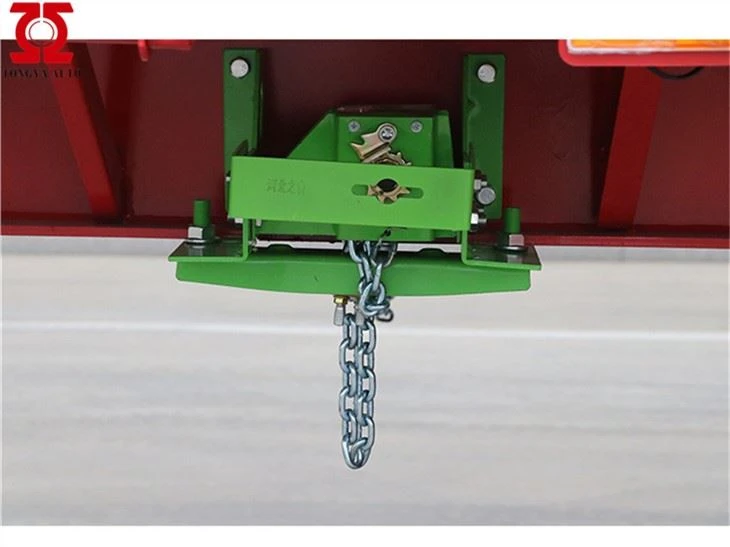

The bodies of 50tons Side Wall Semi Trailer is made of high quality steel, with advanced technology and strict production. Secondly, we also have a hand-cranked spare tire carrier, which is convenient for the installation and removal of the spare tire. What's more, our vehicles are reasonable in structure, reliable in performance, simple in operation and beautiful in appearance. Finally, we can provide different configurations of floor trailers to meet your transportation requirements.

Outer side dimension(mm)	13000 × 2500 × 2850
Loading Capacity (Ton)	≤ 50T

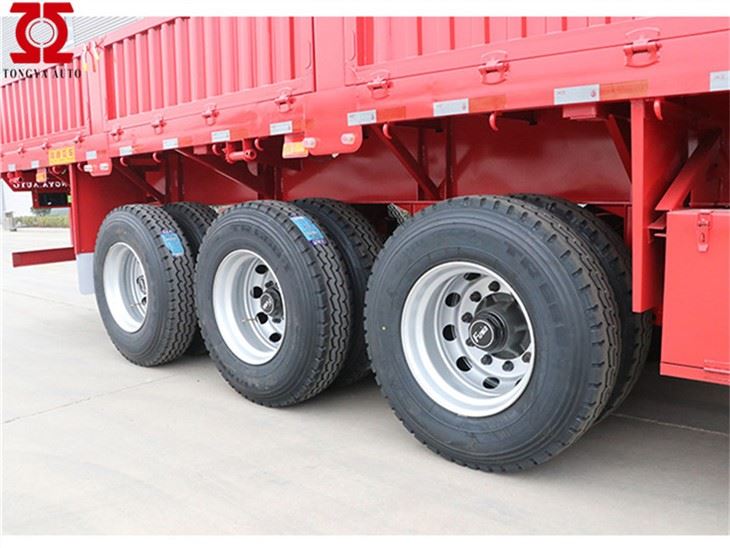

AXLES	13 T 3axles FUWA Brand,
Tire	12.00R22.5, 13pieces Triangle
Rim	9.00-22.5, 13pieces China Brand
Suspension	Mechanical suspension (America Type)
Spring leaf	90(W)mm13(Thickness)mm 10pices,
King pin	JOST brand 2.0 or 3.5 inch bolts type
Support leg	JOST brand
Main Beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel .
Plateform	3mm diamond plate steel
Side beam	16# channel steel
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank
Valve	WABCO valve
ABS	Without
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece
Painting	Complete Chassis sand blasting to clean rust, 1 coat of Anticorrosion prime, 2 coats of final paint
