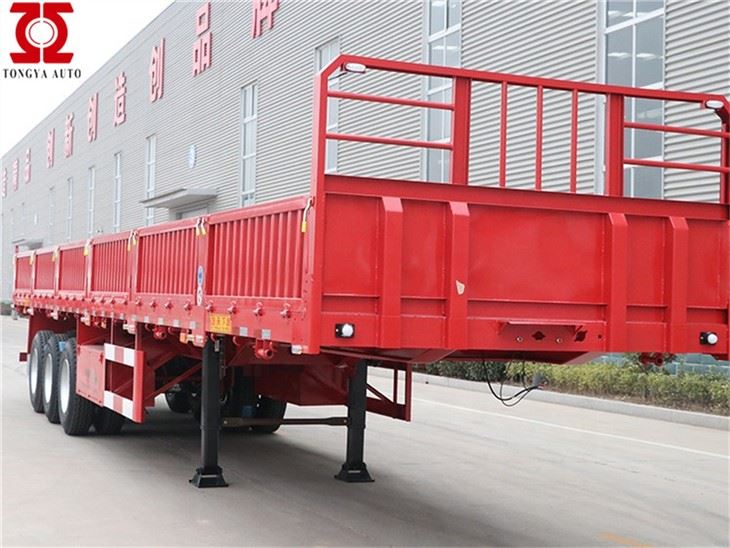

3axles Side Wall Trailer
1,The 3 axles side wall trailer of steel we use comes from well-known domestic steel mills. The overall vehicle is very strong and can easily cope with complex foreign terrain.
2,The 3 axles side wall trailer of axle accessories used in our semi-trailers are all international well-known manufacturers.
3,Our 3 axles side wall trailer is robot welding, especially the beam, which is more beautiful as a whole.
4,We have dozens of experienced skilled workers to ensure the stable quality of our 3 axles side wall trailer.
Product Introduction
Introduction
The 3axles Side Wall Trailer have sidewall structure design. Secondly, our products can be used to transport bagged grain, cement, steel or other kinds of bulk cargoes. It is suitable for medium/heavy load and medium/long distance transportation of bulk cargo. What's more, our products are welded by robots, especially the beams, which are more beautiful overall. Finally, our products are inexpensive and good quality, which is loved by our customers.
Feature
The main plane of 3axles Side Wall Trailer rack cargo platform is low, and the smoothness of transportation is suitable for carrying all kinds of construction machinery large equipment and steel, etc. Secondly, we adopt three-axis balanced live rigid suspension, with mass balancing blocks between front and rear steel plate springs, which can make the deflection of front and rear steel plate springs change equally, so that the rear axle can be used with balanced force, etc. Finally, we adopt computer-aided design software to carry out flexible and diversified design, and design the frame bearing surface according to user requirements to meet the transportation of various special goods.
Weight | About 7.8T |
Dimension(mm) | 12500x2500x3200mm |
Loading capacity(ton) | 50T |
Axles | 13T ,FUWA Brand |
Tire | 12.00R22.5 |
Rim | 9.00-22.5 |
Suspension | Mechanical suspension |
Spring Leaf | 90(W)mmx13(Thickness)mmx10 layers |
King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
Landing Gear | JOST brand |
Main Beam | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
Side Beam | 16mm or 18mm steel channel |
Platform | 3mm-thick checkered plate |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
Sidewall High | 600mm, customizable |
valve | WABCO valve (specially intended for oversea market) |
ABS | Optional |
Light | LED light (specially intended for oversea market) |
Voltage | 24V |
Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Shipping Terms | Transported by the bulk carrier in an RORO or 40ft container |
Why choose us?
- We have a highly skilled team of engineers and technicians who oversee the production process.
- The company has always been adhering to continuous innovation to provide users with high-quality products with excellent value for money. Flexible market response capabilities start from the coexistence of user practicability and economy as the core.
- Our company is committed to upholding the highest standards of quality and customer satisfaction.
- In order to increase the market share and improve the existing customer loyalty, our company insists on providing the best products and services.
- Our products are well-designed, sturdy, and designed to withstand heavy loads.
- Our company has created economic value, social influence value and brand value for itself, and also brought certain economic value and development value to the society.
- We have a strict policy of using only environmentally-friendly materials and processes in our production.
- Our company has advanced and complete comprehensive performance testing equipment, as well as advanced automated production lines.
- Our team of experts is always available to provide assistance and support to our customers.
- Our company adheres to the enterprise spirit of "unity, hard work, pragmatism, progress, innovation and sharing", and is committed to becoming a first-class manufacturer in the global 3axles Side Wall Trailer field and a well-known enterprise with strong domestic competitiveness.
