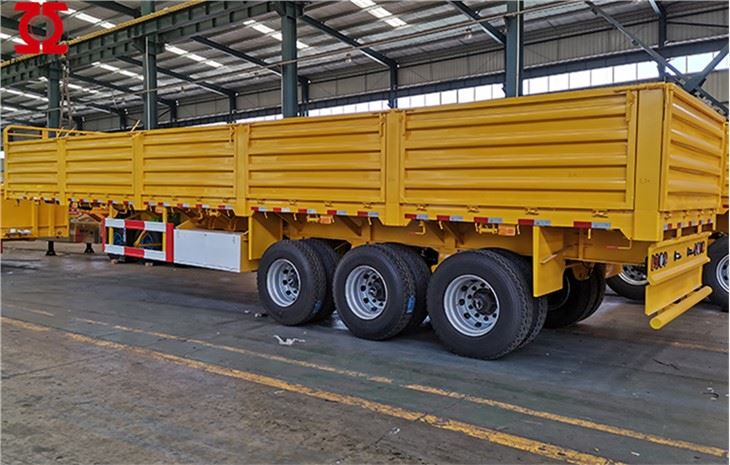

Flatbed Trailer with Sidings
1,Our side wall trailer with twist lock are beautifully designed and look neat and tidy.
2,Our factory has more than 30 years of experience in producing side wall trailer with twist lock.
3,This side wall trailer with twist lock is versatile and can be used to loading containers.
4,Our side wall trailer with twist lock uses the latest knob type, which is easy to install and use
Product Introduction
Introduction
The webs, bottom plates and key parts of Flatbed Trailer with Sidings are made of high-strength steel imported from Sweden, and advanced technical standards are adopted. Secondly, we have light weight mode, we adopt concave and convex through-beam structure to ensure structural strength under the premise of more local weight reduction design, more light weight. Finally, our products have the characteristics of low price and high quality.
Our company has a strong customer base, a high-quality professional team, and a complete sales network to provide high-quality products and perfect services for various Flatbed Trailer with Sidings. We provide customers with high-quality products, perfect after-sales service, reasonable price and fast delivery cycle. Our mature, advanced, flexible and efficient, fully market-oriented system, as well as strong capital resource advantages, make us the cutting edge of the industry.
Feature
The Flatbed Trailer with Sidings adopt the latest knob type, which is easy to install and use. We adopt three sets of one pallets for transportation to save shipping cost. Secondly, our product design is reasonable, we adopt I-beam main beam to increase the load-bearing capacity and improve the stability of the whole vehicle. Finally, we adopt double suspension slewing bracket, which can adjust the balance and stability of the flatbed truck by itself.
Manufacturer Name | Tongya Automobile Co.,Ltd | |
Type: | Semi trailer | |
Minimum order quantity: | 1 unit | |
Dimensions: | 12*2.55*0.6m | |
Trailer Body | Beam height: | 500MM |
Main Beams | 14*8*16mm | |
Edge beam | 16#steel | |
Thickness of bottom plate | 3MM | |
OEM parts: | Axle | 3 axle*square axle with 13 tons capacity. |
King Pin | 2.00’’(50#) bolting king pin, JOST | |
Suspension | Heavy duty tri-axle suspension with equalizers, American design (high-strength type) | |
Steel Spring | Six sets of 10pcs leaf spring | |
Landing legs | landing legs | |
Tire specs | 12R22.5, Triangle brand (Chinese famous brand) | |
Rim | 9.00-22.5,(Chinese famous brand) | |
Number of wheel | 13 pieces(including one spare wheel) | |
Brake system | relay valve; | |
ABS system | Standard | |
Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light | |
Painting | Sand blasting before painting; | |
Marking | Standard | |
Side Guard | Standard | |
spare wheel carrier | one set of heavy duty spare wheel carriers, including a riser. | |
Tools box | One piece (1. 5m) | |
Note: All the details not mentioned should comply with Chinese regulations | ||
