Side Wall Trailer
1,Our factory has more than 30 years of history and rich technical experience.
2,The side wall trailer uses the latest design, neat and generous, convenient and practical.
3,Our side wall trailer are heavy and light to carry more cargo.
4,We have 20 years of experience in exporting side wall trailer and have a deep understanding of the local market
Product Introduction
Gross Weight | About 6.8 tons |
Outer side dimension(mm) | 13000 × 2500 × 2850mm |
Loading Capacity (Ton) | 50T |
AXLES | 13T, 3axles FUWA Brand, |
Tire | 12.00R22.5, 13pieces Triangle or double coin brand |
Rim | 9.00-22.5, 13pieces China Brand |
Suspension | Mechanical suspension (America Type) |
Spring leaf | 90(W)mm*13(Thickness)mm *10pices, heavy duty type |
King pin | JOST brand 2.0 or 3.5 inch bolts type |
Support leg | 28T or JOST brand |
Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, |
Plateform | 3mm diamond plate steel |
Side beam | 16# channel steel |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank |
Hooks | With |
Twist Locks | 12 pieces (Lifting type) |
Valve | WABCO valve |
ABS | With |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms | Transport by RORO or 45FT container. |

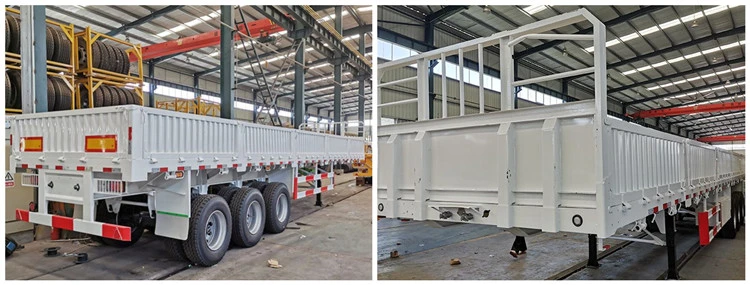

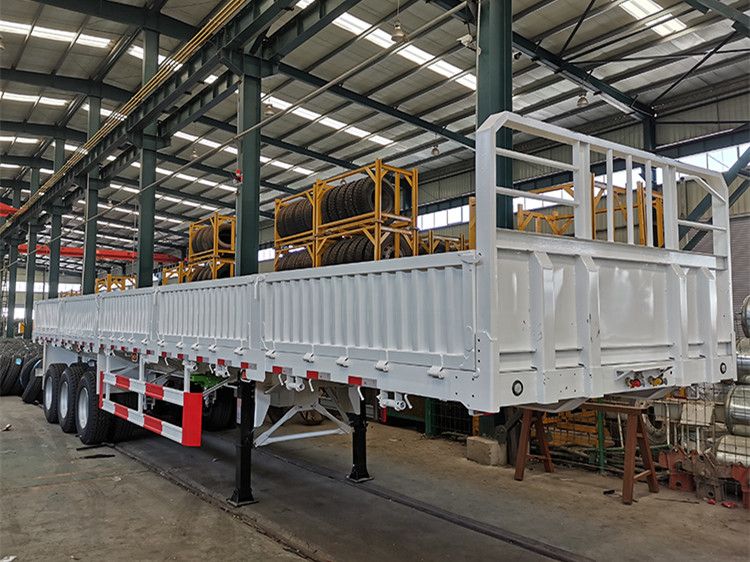

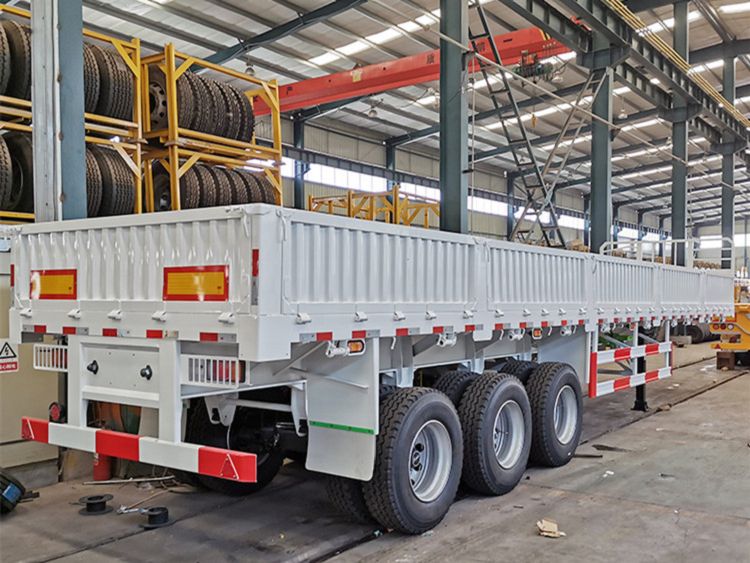

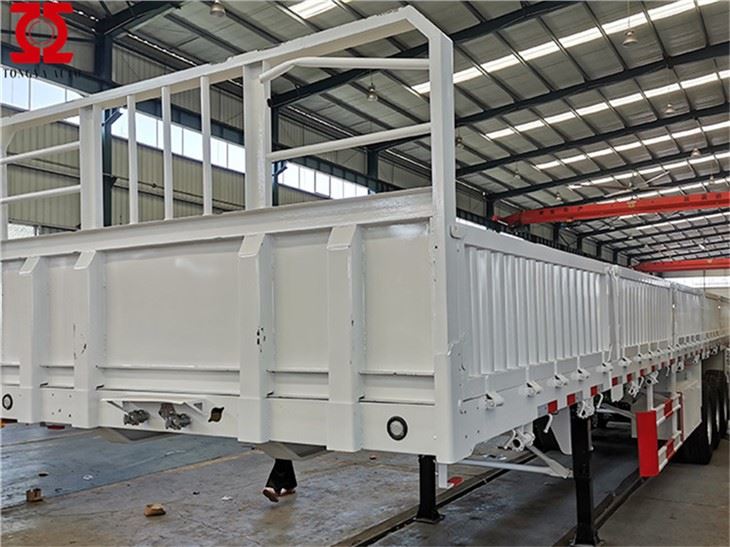

The side wall trailer is installed with fences on the working platform. With wide usage, it’s basically used for medium and long-distance transportation of medium and heavy goods as well as bulk cargo. Our company can also install additional container locks or detachable columns according to customers’ special requirements, so it can be used for container transportation or timber transportation. With strong applicability, it is the first choice for medium and long distance transportation.

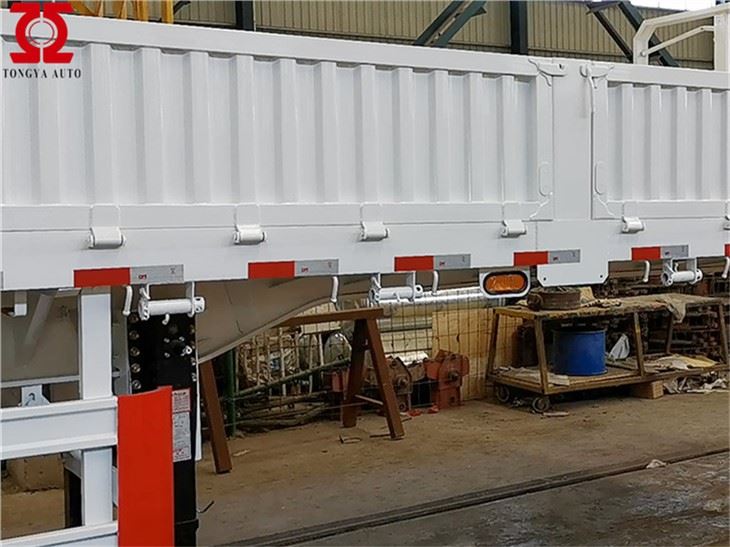

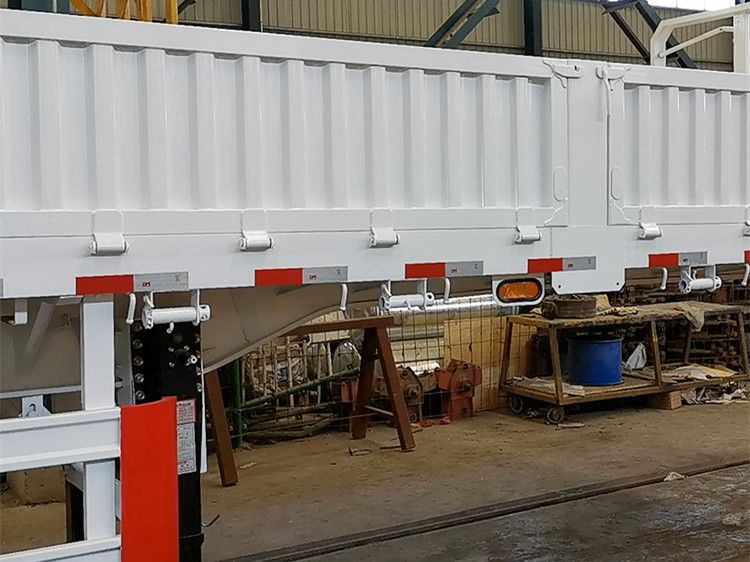

The height of side wall trailer is 400-1200mm for your choose.Weld by automatic corrugated plate welding robot,the quality is good, the welded seam is beautiful, the side wall strong and durable.
This side wall trailer are designed with cross-beam structure in the main frame, and for the longitudinal beam, it’s designed as flat bed or goose-neck. The height of the middle plate (manganese plate) is from 400mm to 550mm. The longitudinal beam is welded by automatic submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.
