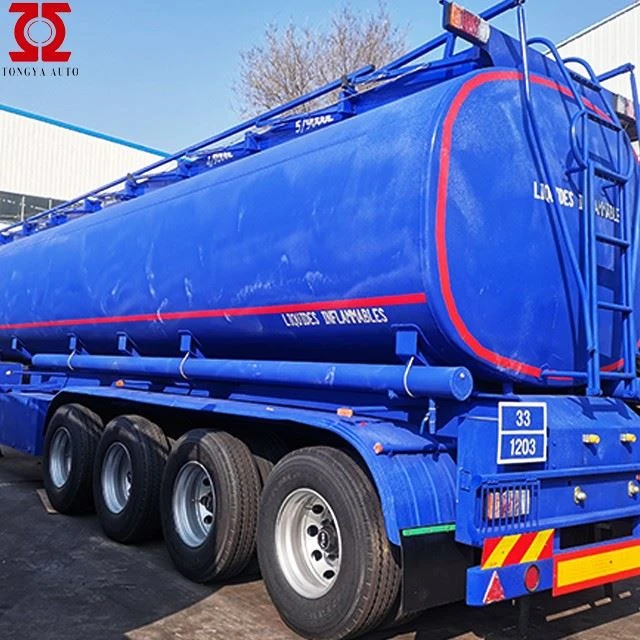

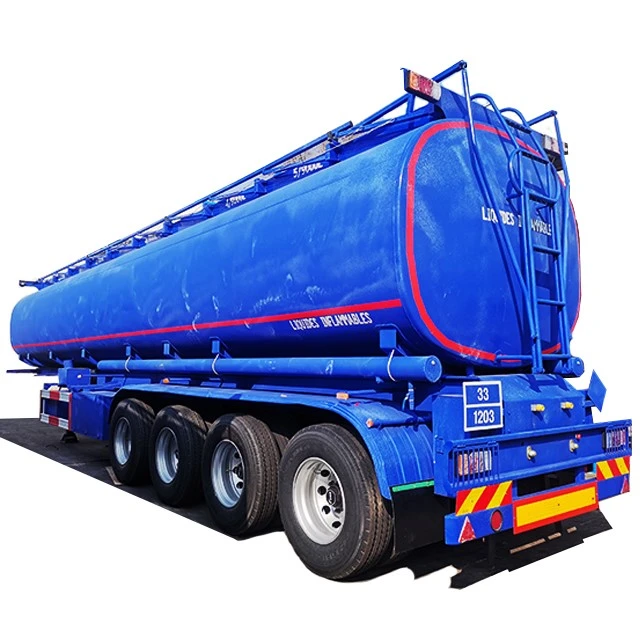

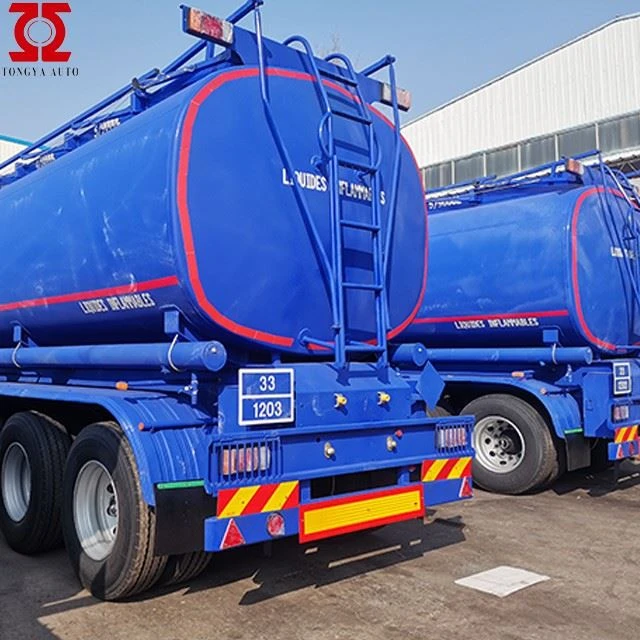

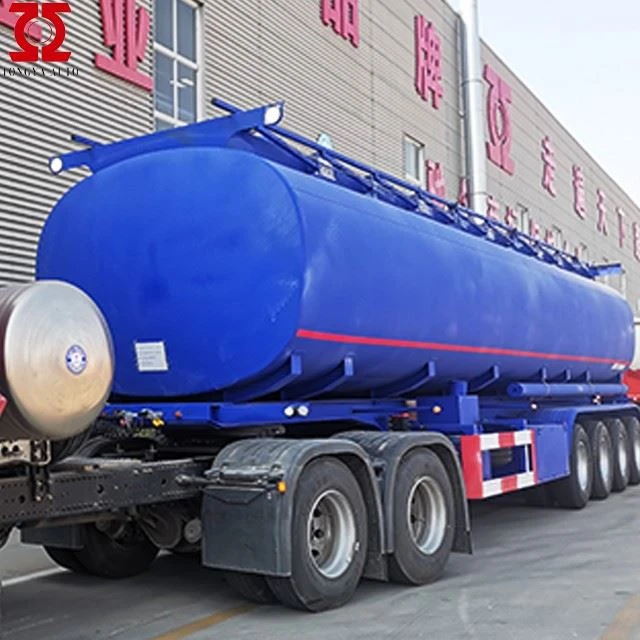

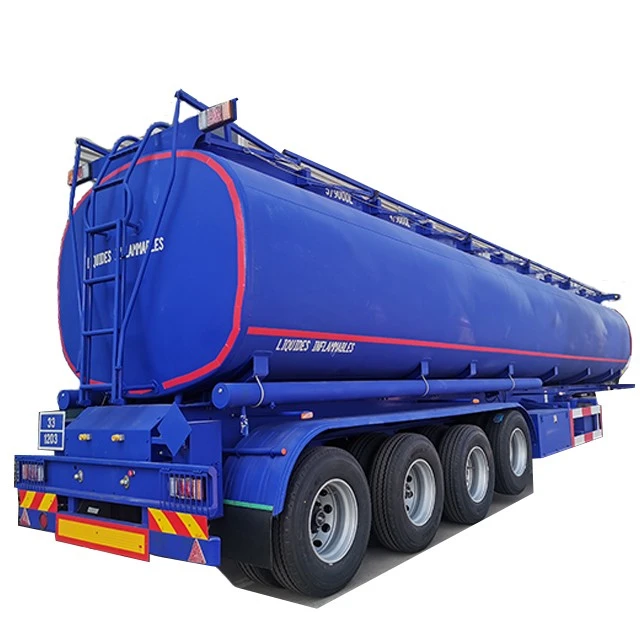

TONGYA Hot Sale 4 Axle Oil Liquid Fuel Tanker Trailers Tank Semi Trailer
Oil tanker semi trailer is used to transfer diesel fuel, petrol, crude oil, edible oil, and palm oil . normally for transport the gasoline, light diesel oil , petroleum and other non-corresive fuel properties, widely used in various transportation units, gas stations and other logistic industries.
Product Introduction
TONGYA Hot Sale 4 Axle Oil Liquid Fuel Tanker Trailers Tank Semi Trailer
Specifications:
|
Tank Body
|
||||
|
Shape
|
Optional (Square)
|
|||
|
Dimension
|
7500mm*2500mm*3500mm ( Exact size depends on the final design)
|
|||
|
Tare weight
|
About 6500KGS
|
|||
|
Total Volume(m3)
|
50m³
|
|||
|
Tanker Body Material
|
5mm Q235 carbon steel
|
|||
|
End Plate
|
5mm Q235 carbon steel
|
|||
|
Manhole Cover
|
Carbon steel ∮500mm
|
|||
|
Bottom valve
|
With
|
|||
|
Discharging Valve
|
Diameter is 3 or 4inch
|
|||
|
Compartments
|
1 or more
|
|||
|
Discharging Pipe
|
4"rubber hose, 2 pcs, 6m/each
|
|||
|
Cat Walk
|
With (Common model or special design)
|
|||
|
Chassis
|
||||
|
Main Beams
|
Weldding design, Q345 carbon steel material
|
|||
|
Axle
|
4axles, FUWA brand, BPW
|
|||
|
Turn table
|
With
|
|||
|
Draw bar
|
1.4m
|
|||
|
Suspension
|
Mechanical suspension
|
|||
|
Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer
|
|||
|
Pneumatic Braking System
|
WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks.
|
|||
|
Rim
|
9.00-22.5 China Brand
|
|||
|
Tire
|
12R22.5 Brand can be Optional
|
|||
|
ABS
|
Optional
|
|||
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
|||
|
Accessories
|
One standard tool box
|
|||
|
Shipping Terms
|
By Bulk Cargo ,RORO
|
|||
