50000L Tri Axle Stainless Steel Petrol Fuel Tanker Trailer
50000L Tri Axle Stainless Steel Petrol Fuel Tanker Trailer adopts an advanced design concept. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.
Product Introduction

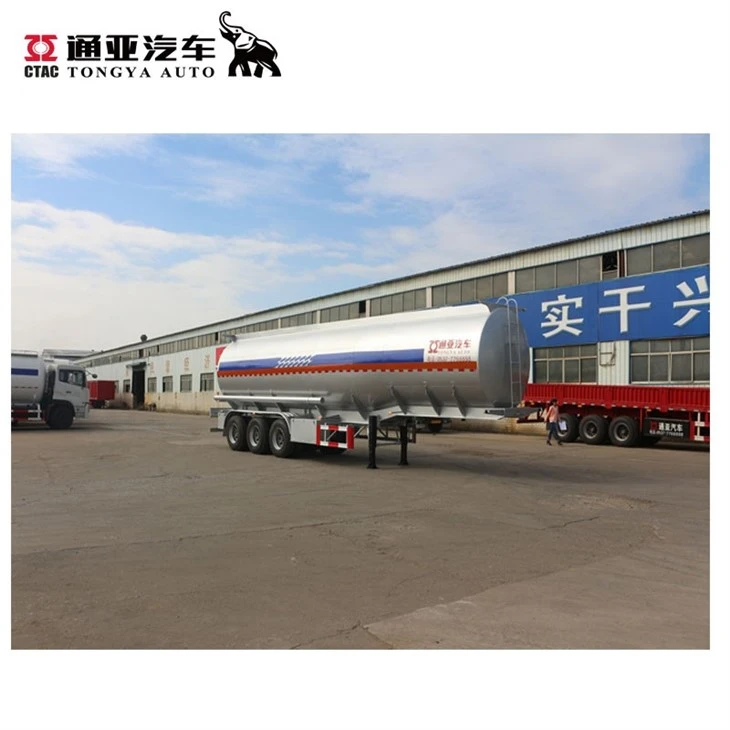

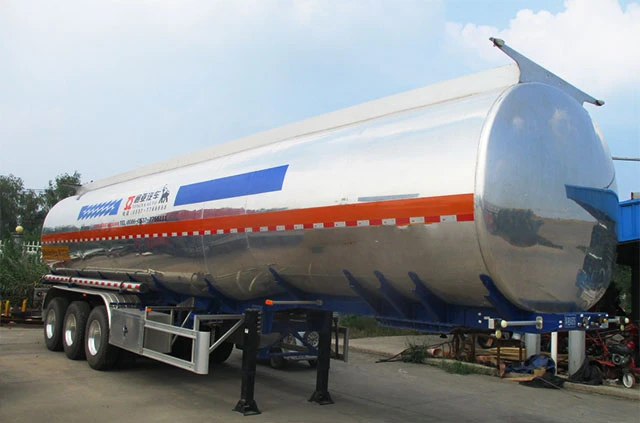

50000L Tri Axle Stainless Steel Petrol Fuel Tanker Trailer
Tongya Automobile Co.,LTD offers carbon steel, stainless steel or aluminum material tanker trailers. The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters etc. With the different compartments, from one to nine, or more compartments, to load different liquid.
50000L Tri Axle Stainless Steel Petrol Fuel Tanker Trailer used for carrying different liquids like fuel, petrol, water, palm oil, bitumen asphalt, etc.
Specifications:
|
Model Name |
50000L Tri Axle Stainless Steel Petrol Fuel Tanker Trailer
|
|
Function |
Transport oil and fuel |
|
Overall Dimension |
(L*W*H) 11500*2500*3800mm |
|
Volume |
40000 L |
|
Tare weight |
11500KG |
|
Tank body |
stainless steel 305 |
|
End plate |
stainless steel 305 |
|
Axle |
3 axles 13T Fuwa Brand |
|
Suspension system |
Mechanical Suspension |
|
Steel Spring |
10/10/10 leaf spring suspension |
|
Manhole cover |
500mm manhole cover 8 sets |
|
Tire |
12.00R20 12pcs, Triangle, Double Coin brand |
|
Rims |
9.0, 12 pieces |
|
Discharge valve |
4''disc valve ,8pcs |
|
Discharge pipe |
4''seamless steel tube ,8pcs |
|
Spare Wheel Bracket |
2'' bolt-in king pin |
|
Landing gear |
Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t |
|
Tool box |
one piece |
|
Compartment |
8 |
|
Braking system |
RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
Electrical system |
voltage:24V 2.Receptacle:7ways(7wire harness) |
|
Tail lamp with turn signal,brake light&reflector,side lamp etc. |
|
|
One set 6-core standard Cable |
|
|
Accessories |
One standard tool box.Fire extinguisher 2 pcs |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
|
Main beams |
Option for high tensile steel Q345B welded by automatic submerged-arc processes |
|
Packing |
Polish with wax before shipping |
Send inquiry Contact Supplier For Exclusive Services And Preferential Price.
We are factory manufacturing, welcome you to visit our factory.

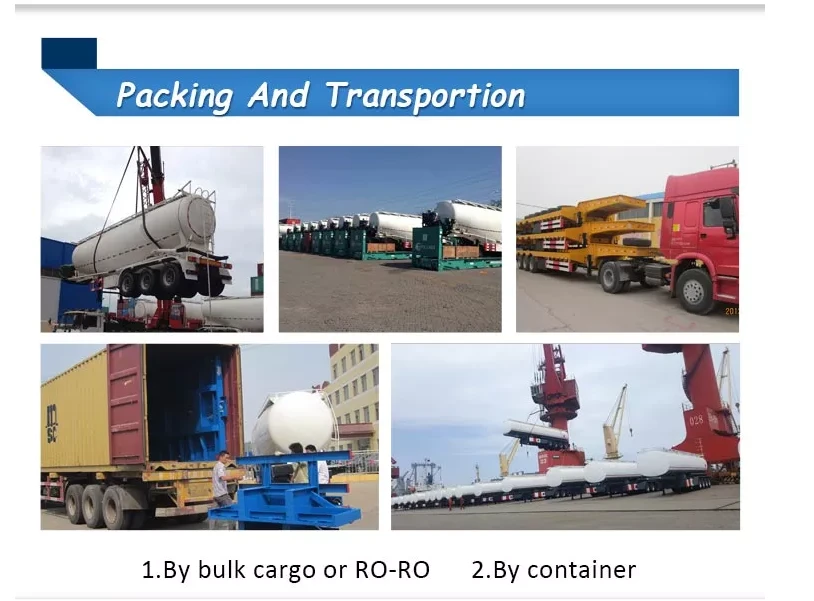

Container Shipment( below 41 cbm can load in a 40hq, more than 42 cbm needs a big container and a small container. )
Bulk Shipment. This is the most common way, it can keep the completeness of the trailer.
Ro- Ro shipment. The price of Ro- Ro shipment is the most expensive of all ways. It can protect the trailer well and keep the completeness of the trailer.
Flat Rack. It is one of the containers but it has lengthy limited that is about 11.7 meters.
