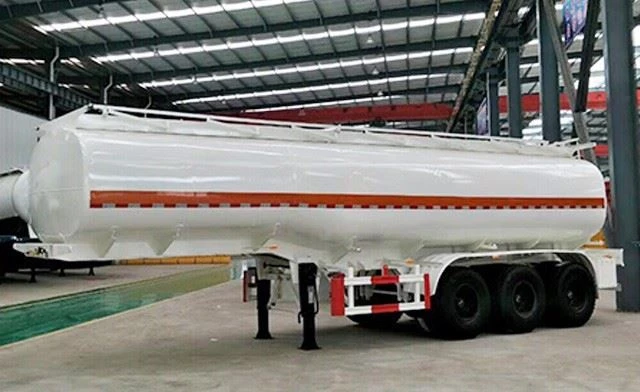

Oil Transport Truck Trailer
Outer size：12000x2500x3700mm
Design Capacity (gross)：40ton
Tare weight (±3%)：10000KG
Type：Tri-axle semi-trailer
Coupling height
Unladen 1320 mm
Product Introduction
Products Description

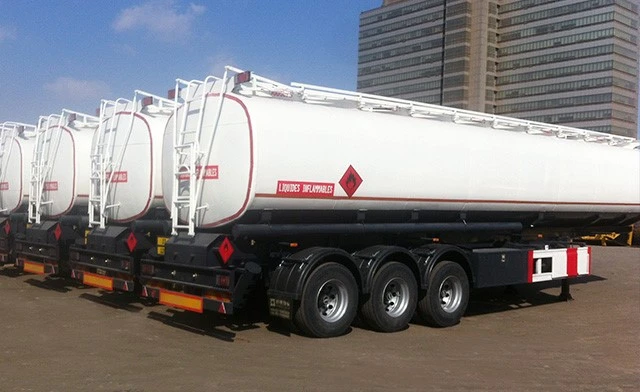

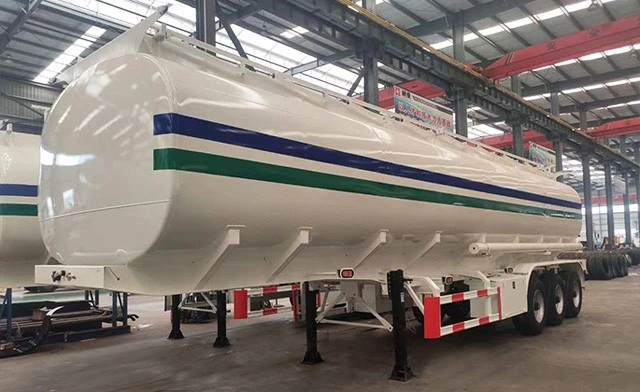

oil transport truck trailer
oil tanker truck trailer is used to transfer diesel fuel, petrol, crude oil, edible oil, palm oil and liquid bitumen.
oil tanker truck trailer normally for transport the gasoline, light diesel oil , petroleum and other non-corresive fuel properties, rarely impact rarely impact the damage for other components, widely used in various transportation units, gas stations and other logistic industries.
Competitive Advantages of oil tanker truck trailer
Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.The tanker can be produce with 1 compartments to 7 compartments according to customer demand.
Axles: The axle can be selected in different famous brand of BPW and FUWA . domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
Mechanical suspension and air suspension series optional.
Single tire or double tire is optional.
Specifications:
|
Outer size |
12000x2500x3700mm |
|
|
Design Capacity (gross) |
40ton |
|
|
Tare weight (±3%) |
10000KG |
|
|
Type |
Tri-axle semi-trailer |
|
|
Coupling height |
Unladen 1320 mm |
|
|
Basic Information |
||
|
Outer size |
12000x2500x3700mm |
|
|
Design Capacity (gross) |
40ton |
|
|
Tare weight (±3%) |
10000KG |
|
|
Type |
Tri-axle semi-trailer |
|
|
Coupling height |
Unladen 1320 mm |
|
|
Tank assembly |
||
|
Compartment |
Optional 1-8compartment |
|
|
Front/Rear end plate |
Material |
Carbon steel |
|
Front/Rear end plate |
thickness |
6mm |
|
Tank body (with insulating layer) |
Material |
Carbon steel |
|
Thickness |
5mm |
|
|
Wave-proof plate thickness |
4mm |
|
|
Manhole cover |
Diameter |
500mm |
|
Material |
Aluminum Alloy |
|
|
Number |
2-6pcs |
|
|
Discharging valve |
Diameter |
3 inch |
|
Material |
Aluminum Alloy API valve |
|
|
Number |
2-6 pcs |
|
|
Bottom safety valve |
Aluminum Alloy 4 inch |
|
|
Discharging pipe |
Diameter |
3 inch |
|
Type |
Rubber hose,2pcs |
|
|
Cat walk |
Standard |
|
|
CHASSIS |
||
|
Axle |
Brand |
Fuwa |
|
Type |
13t |
|
|
Number |
3pcs |
|
|
Rim |
Type |
9.0-22.5 |
|
Number |
12 pcs |
|
|
Tire |
Brand |
Triangle brand |
|
Type |
12R22.5 |
|
|
Number |
12pcs |
|
|
Suspension |
Mechanical suspension |
|
|
Spring leaf |
Leaf width |
90mm |
|
Leaf thickness |
13mm |
|
|
Layer/set |
10 Layer |
|
|
King pin |
Type |
Bolts type |
|
Diameter |
2 inch |
|
|
Brake system |
Air tank |
45L air tanks |
|
Brake chamber |
WABCO RE6 relay valve; T30/30+T30 Spring brake chamber |
|
|
ABS |
Optional |
|
|
Landing gear |
Brand |
JOST or TONGYA |
|
Type |
A300C and TONGYA 28T |
|
Send inquiry Contact Supplier For Exclusive Services And Preferential Price.
We are factory manufacturing, welcome you to visit our factory.
Container Shipment( below 41 cbm can load in a 40hq, more than 42 cbm needs a big container and a small container. )
Bulk Shipment. This is the most common way, it can keep the completeness of the trailer.
Ro- Ro shipment. The price of Ro- Ro shipment is the most expensive of all ways. It can protect the trailer well and keep the completeness of the trailer.
Flat Rack. It is one of the containers but it has lengthy limited that is about 11.7 meters.
