45m3 Cement Trailer
What’s more, the diesel engine and air compressor also will do big favor for discharging cement, air compressor can supply strong air pressure to the tanker
Product Introduction
Product introduction
This 45m3 cement trailer will not cause cement loss because the highly sealed tank can effectively resist the invasion of rain. The V-shaped structure at the bottom of the tank can lead the cement to the middle and bottom to speed up the efficiency of unloading, and there are two manholes at the top of the tank to facilitate the loading of cement. On the external pipeline, there are many valves to help discharge cement, and it will not take a long time. The solid base can effectively ensure that the trailer can drive stably on the bad road conditions, even if it is a long distance, there will be no problem. For many construction sites, this trailer is the best solution for transporting bulk cement.
Product features
1. The special V-shaped structure design can make the cement fall quickly, and there is also an air compressor to provide strong thrust.
2. This trailer is extremely safe because it is equipped with safety valve, folding armrest and other components.
3. This 45m3 cement trailer can effectively protect cement from rain and other adverse weather.
4. This trailer can be widely used in the construction industry, especially in various large projects.
Specification
Item | 45m3 cement trailer |
Tare Weight | About 8.5T |
Dimension | 10500mm*2500mm*3850mm |
Loading Capacity (m3) | 45m3, about 54Tons |
Axle | 3 axles, FUWA brand 13t |
Rim | 9.00-22.5 (special for export market) 13pcs |
Tire | 12R22.5 Triangle brand 13pieces(including 1 spare) |
Suspension | Mechanical American Type |
Spring leaf | 90(W)mm*13(Thick)mm*10 Layers |

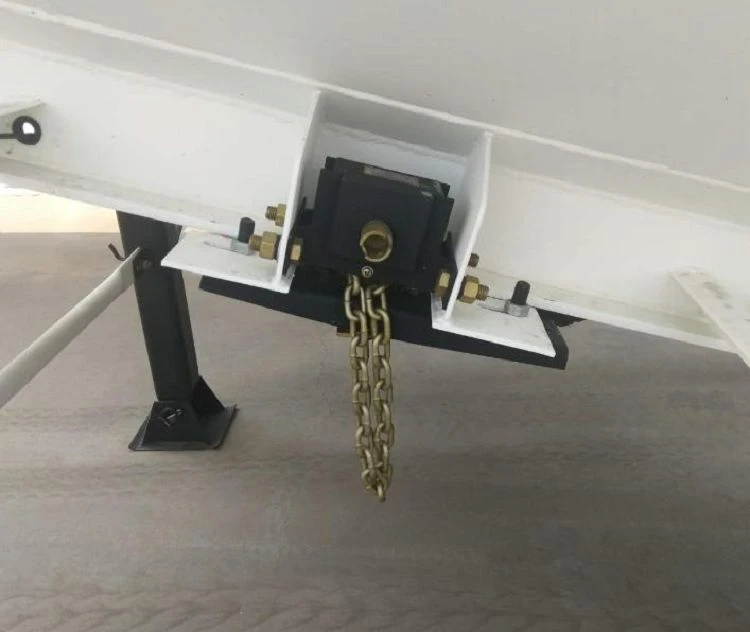

King pin | brand JOST optional,50# |
Support leg | JOST brand optional, two speed |
Material of tanker | Carbon steel, Q235B |
Main beam | Q345 |
Tanker body | 5mm |
Ending plate | 6mm |
Diesel engine | Tianhe 4102 |
Air compressor | 12m3, two cylinders |
NWP | 0.2MPA |
Manhole | Two pieces |
Cat way | Anti skid |
outlet | 1 |
Ladder | 2, one is in the rear, another is in the front |
Color | White and blue |
Details

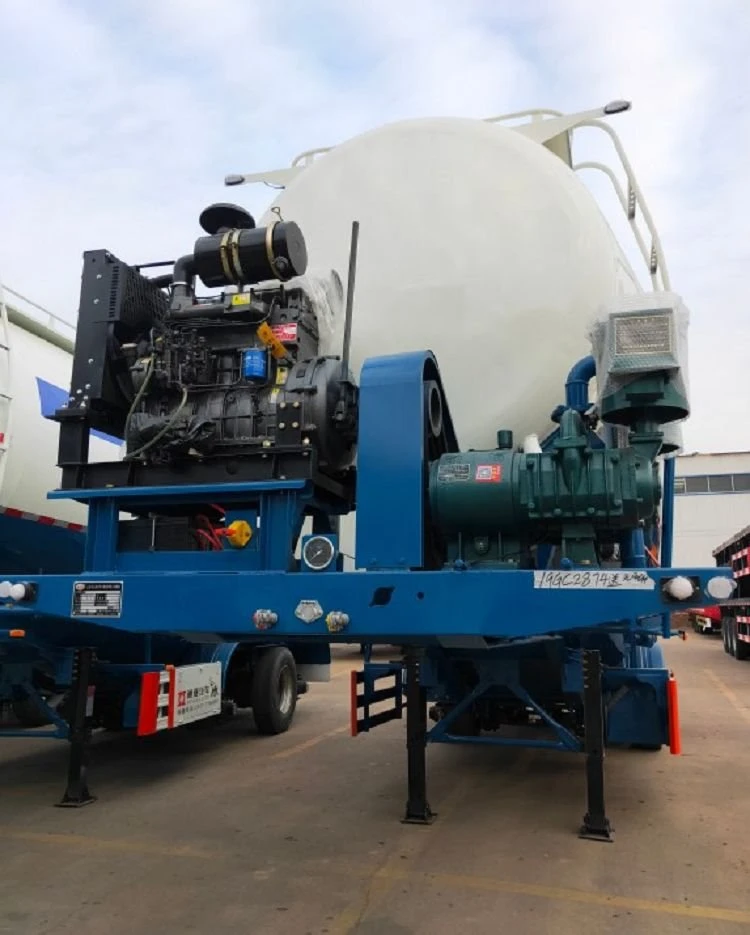

Engine units, with diesel engine and air compressor, can discharge bulk cement quickly and conveniently
Spare tire carrier, can take a tire on the spare tire hanger all the time, if one tire of trailer broken on the way, can change the spare tire quickly and conveniently

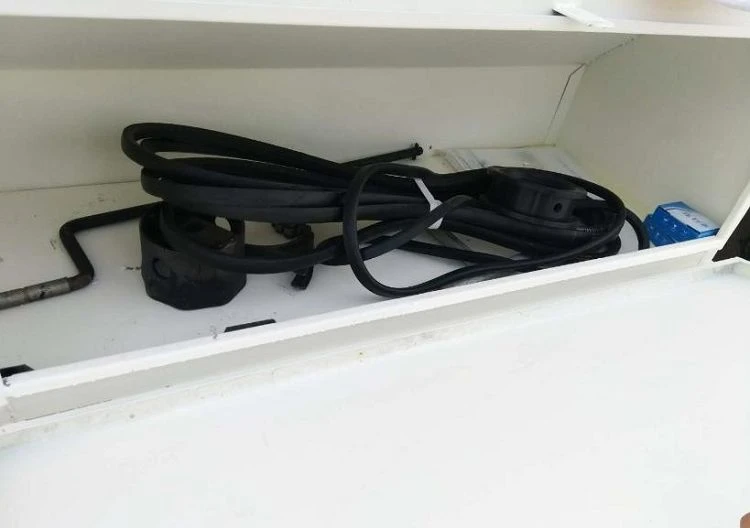

The tool box always have the necessary instruments inside.
