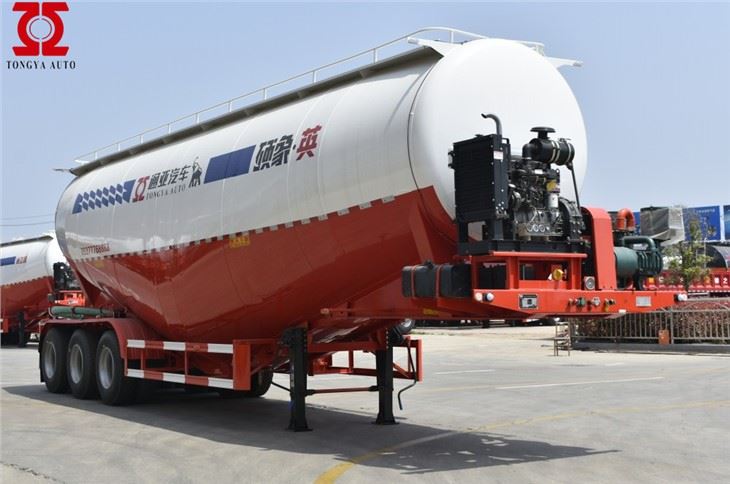

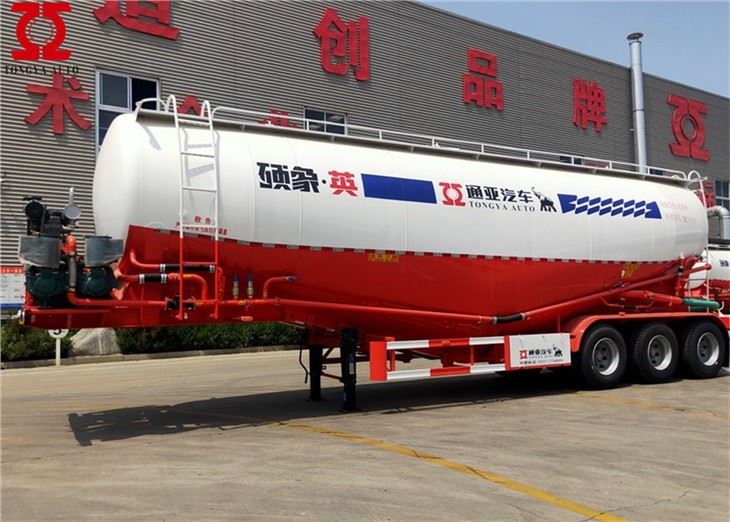

Cement Tanker Truck Trailer
This cement tanker truck trailer is designed to transport large quantity of bulk cement, the material of ending plate and tanker body is q235b carbon steel, so the tanker is tensile and strong.
Product Introduction
Product introduction
This cement tanker truck trailer is specially designed for transporting bulk cement, and its capacity is large enough to effectively speed up the transportation efficiency. Because the short plate and tank body are made of high-quality Q235B carbon steel, the entire tank car has obtained excellent tensile strength and impact resistance. In addition to bulk cement, this trailer can also be used to transport other dust materials with diameter less than 0.1mm, such as coal ash, lime powder, etc. In the process of practical application, it can effectively improve the loading and unloading efficiency of cement, so it is loved by many customers.
Product features
1. This trailer has a solid tank body and high-quality components, so its stability and reliability need not be questioned.
2. The application of this trailer can greatly increase the loading and unloading efficiency and reduce the material loss caused by transportation.
3. This trailer has a smooth and beautiful appearance after surface treatment, and is also very easy to maintain and clean.
4. This cement tanker truck trailer can be widely used in industry, agriculture, commerce, power plants and construction.
Specification
Tare Weight | About 10T |
Dimension | 11000mm*2500mm*3850mm |
Loading Capacity (m3) | 40m3, about 48 T |
Axle | 3 axles, FUWA brand |
Rim | 9.00-22.5 (special for export market) 13pcs |
Tire | 12R22.5 Triangle brand 13pieces(including 1 spare) |
Suspension | Mechanical American Type |
Spring leaf | 90(W)mm*13(Thick)mm*10 Layers |
King pin | brand JOST optional, 90# |
Support leg | Jost brand optional, two speed |
Tanker material | Carbon steel, Q235B |
Tanker body | 5mm |
Ending plate | 6mm |
Manhole | Two pieces |
Diesel engine | Tianhe brand, 4102type |
Air compressor | Bohai brand, 12m3, 2 cylinders |
Outlet | 1 |
NWP | 0.2MPA |
Ladder | 2, one is in front, the other in the rear |
Color | White and red |

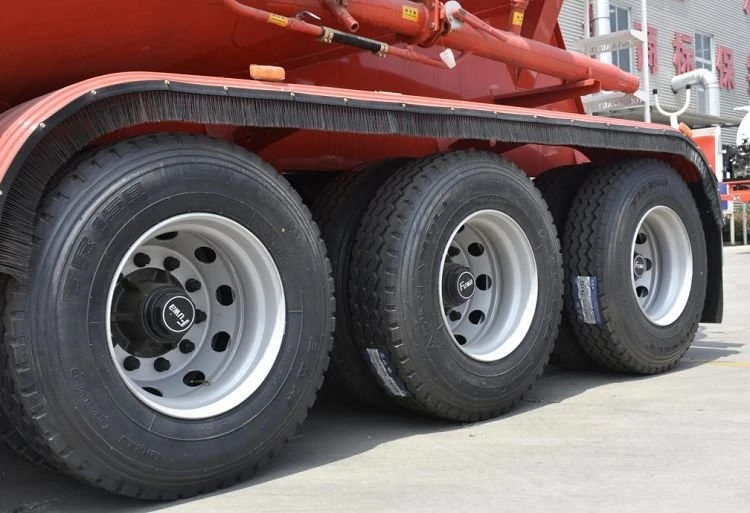

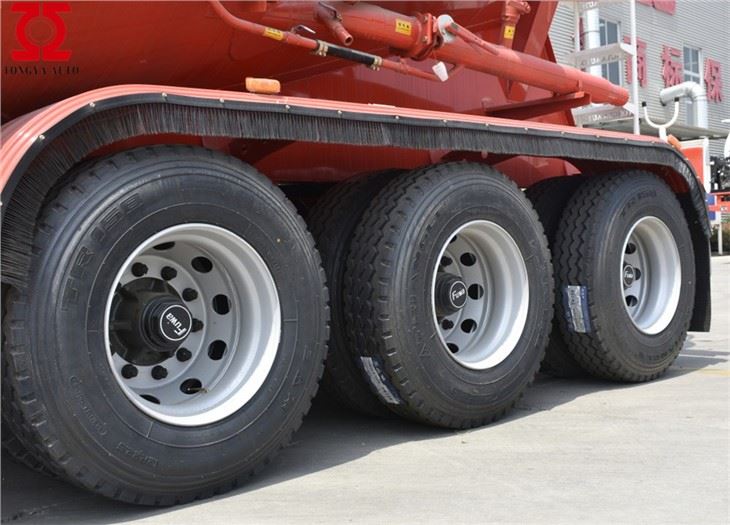

3 axles, Chinese famous brand, FUWA brand, 13T. And tires are Triangle brand

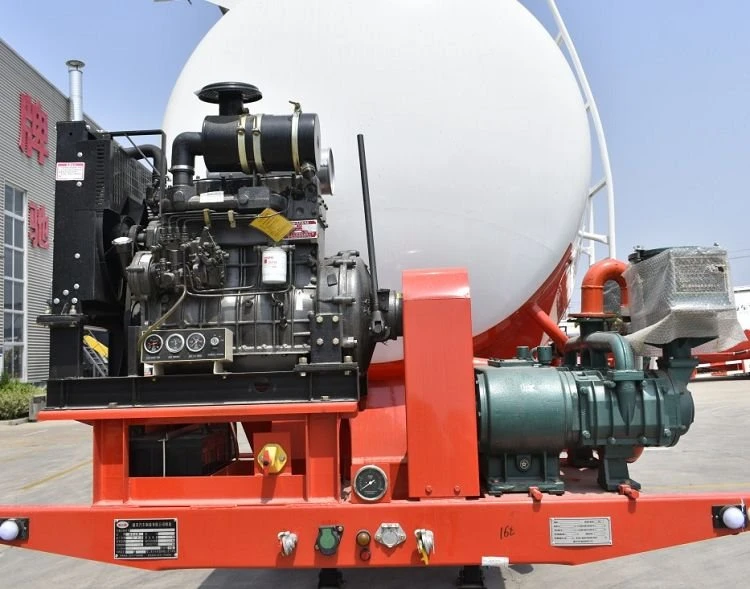

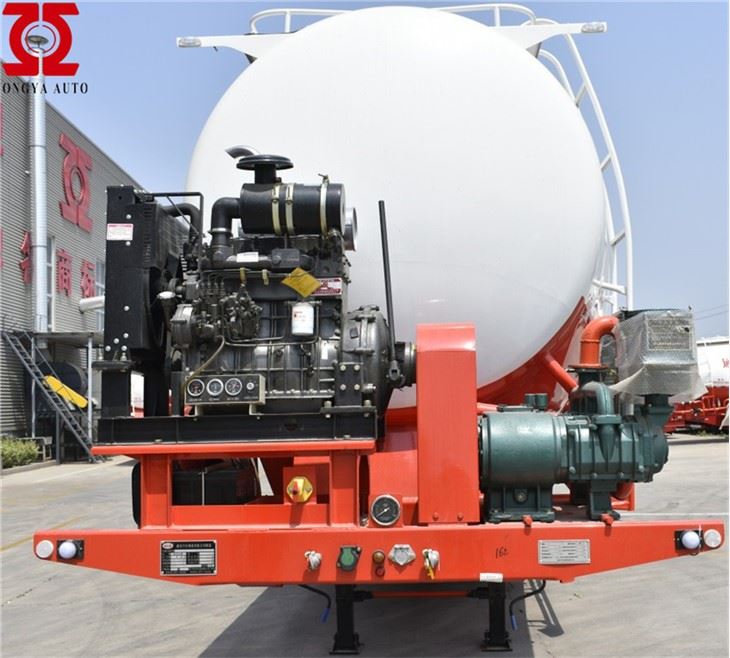

Chinese famous brand diesel engine, 4102type. With 12M3 2cylinders air compressor, supply strong pressure inside tanker, pushing powder outside of tanker.
