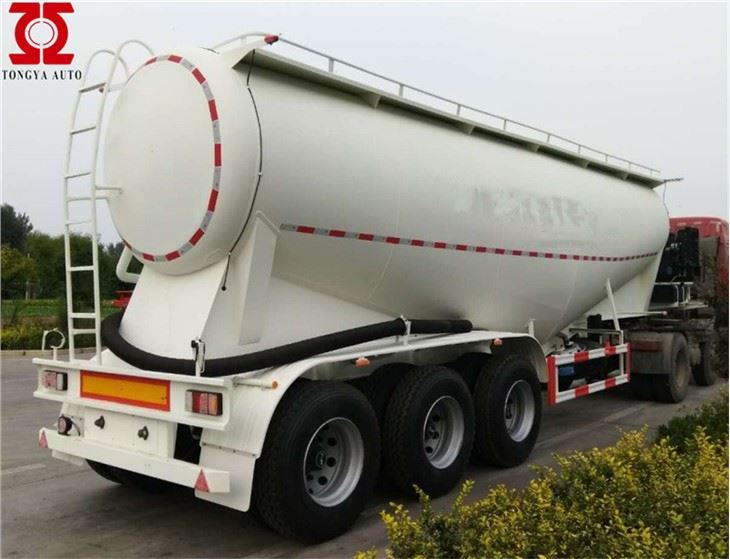

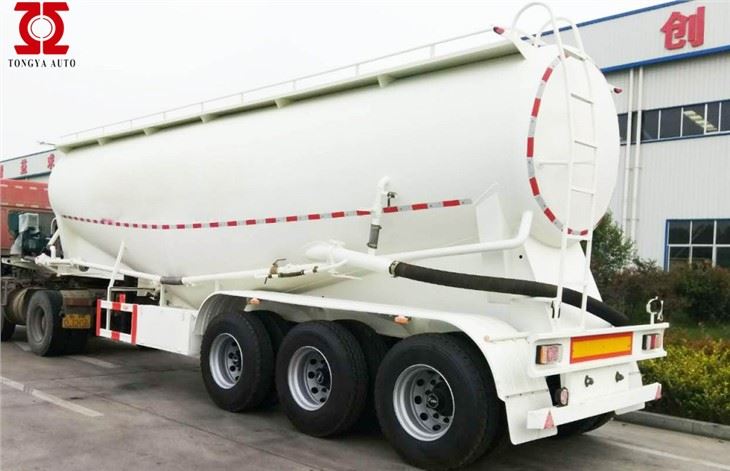

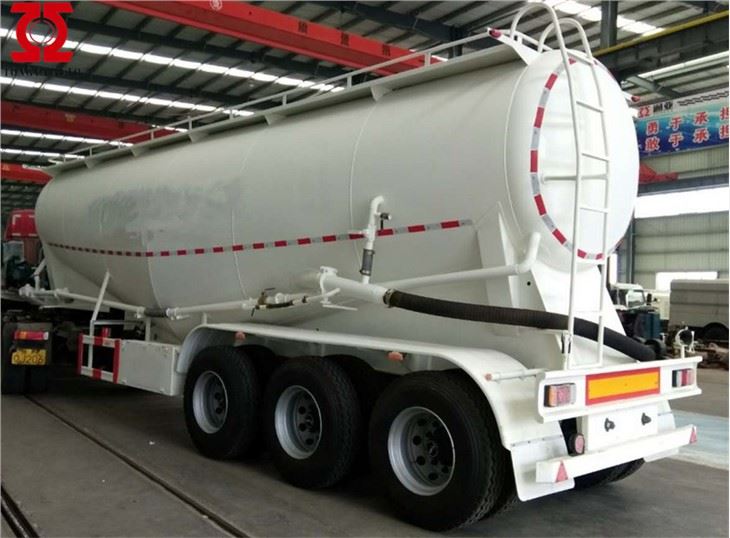

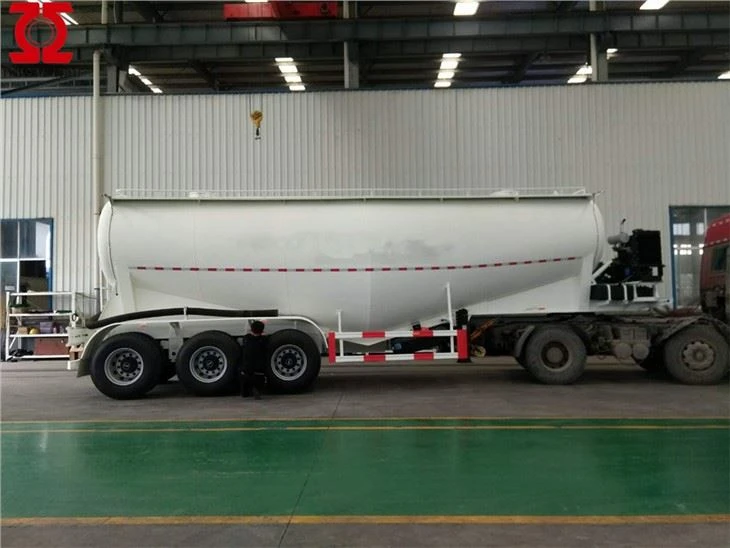

Tanker Trailer for Cement
Tanker trailer for cement is designed to transport large quantity bulk cement, instead of the cement load in bags.
Product Introduction
Product introduction
This tanker trailer for cement has a manhole at the top for loading cement, and an outlet at the bottom for discharging cement. It is equipped with a variety of valves, such as safety valve, external air supply valve, inlet ball valve, air check valve, etc., to ensure transportation safety. High-performance air compressor provides power through high-quality diesel engine, thus outputting strong air pressure to promote cement discharge, which can effectively save unloading time and labor costs. Compared with the bagged cement truck, this trailer can increase the transportation efficiency and ensure that the quality of cement is not greatly damaged by transporting a large amount of bulk cement.
Product features
1. This trailer can realize fast loading and unloading of cement, so it can improve the efficiency of cement transportation engineering.
2. The loss rate of cement will be less than 0.2% because this trailer will not expose it to more air and moisture like bagged cement transportation.
3. This tanker trailer for cement can reduce the environmental pollution caused by the falling of materials produced by cement transportation.
4. This cement tanker can perfectly replace the way of transporting cement in bags. It has obvious advantages in both cost and efficiency.
Specifications
Tare Weight | About 8T |
Dimension | 10000mm*2500mm*3850mm |
Loading Capacity (m3) | 30m3, about 36 Tons |
Axle | 3 axles, FUWA brand |
Rim | 9.00-22.5 (special for export market) 13pcs |
Tire | 12R22.5 Triangle brand 13pieces(including 1 spare) |

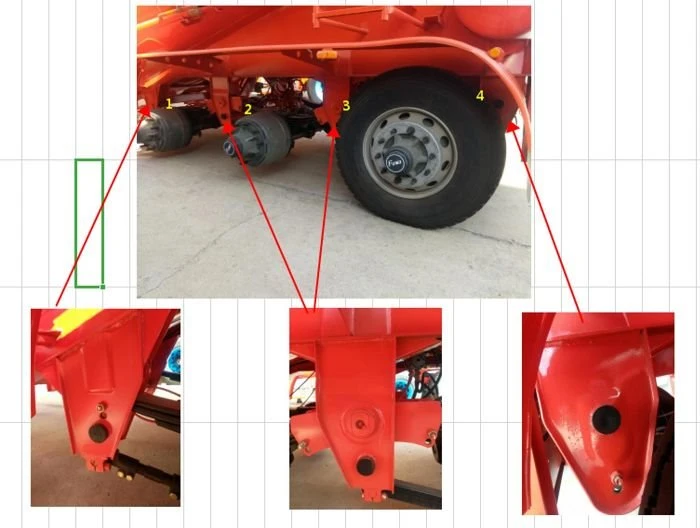

Suspension | Mechanical American Type |
Spring leaf | 90(W)mm*13(Thick)mm*10 Layers |

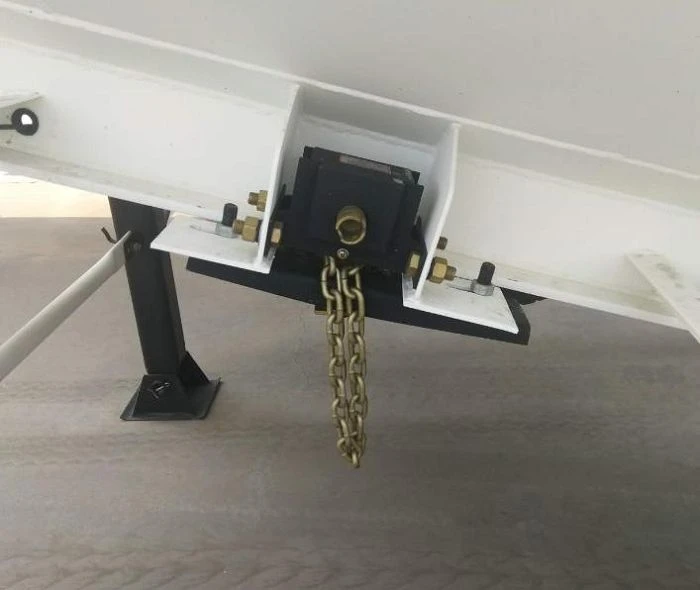

King pin | brand JOST optional,50# |
Support leg | Jost brand optional, two speed |
Material of tanker | Carbon steel, Q235B |
Tanker body | 5mm |
Ending plate | 6mm |
Diesel engine | Tianhe brand,4102 |
Air compressor | 12m3, two cylinders |
NWP | 0.2MPA |
Manhole | Two pieces |
Outlet | 1 |
Color | white |
Can take a spare tire on this tire carrier, in case the tire is broken on the way, can change the tire easily

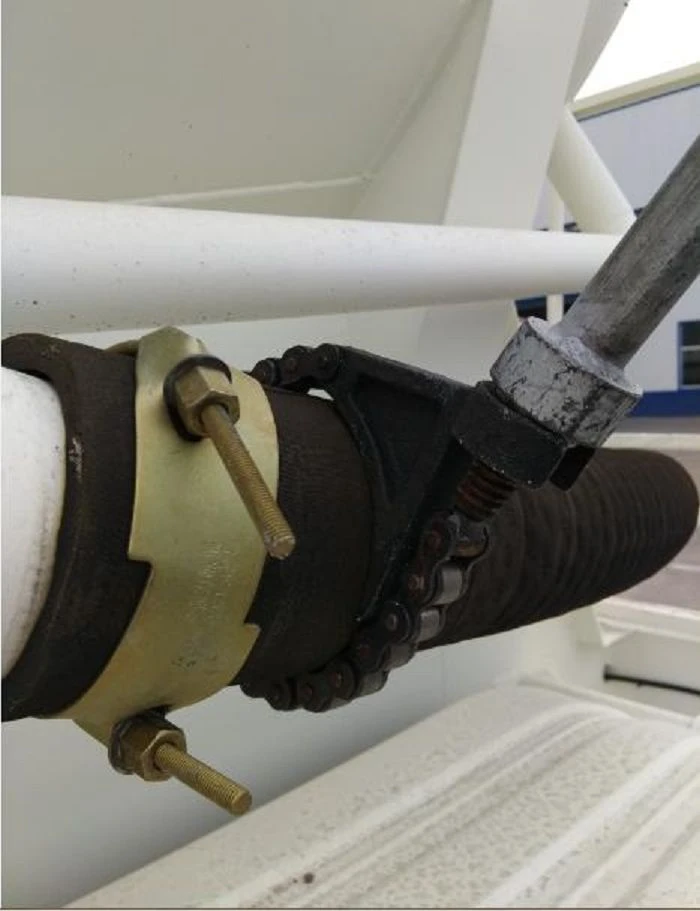

The outlet of cement, connecting a 8m long tube. Very convenient

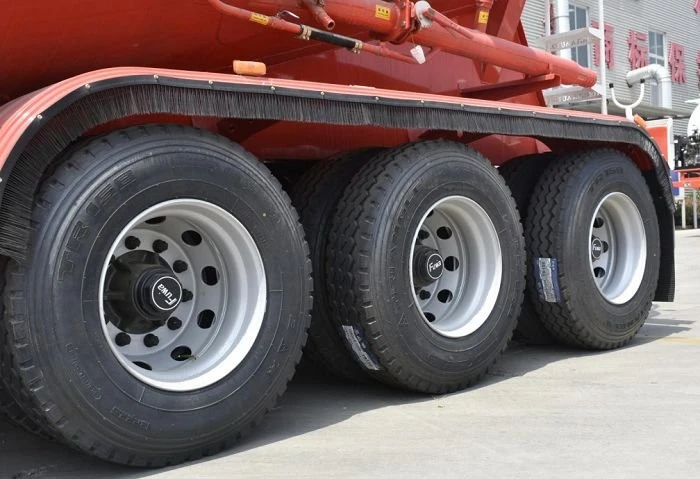

3 axles with 12tires, it can bear large weight
