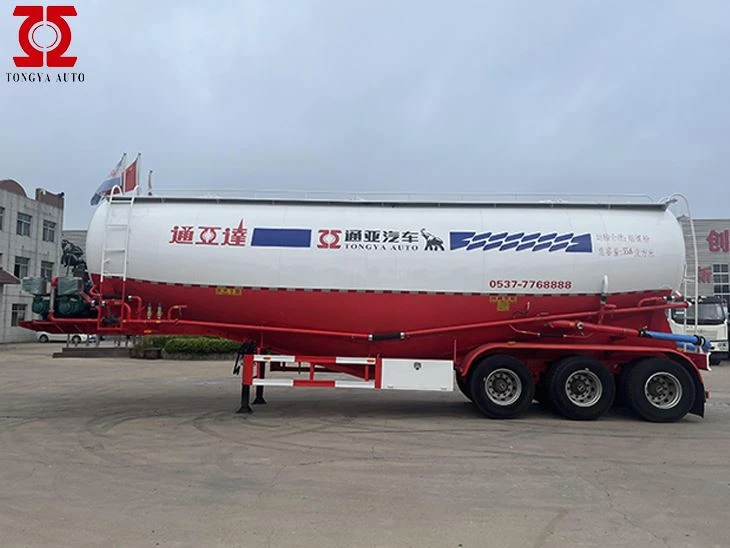

50T Bulk Cement Tanker Semi Trailer

Weight:

Tare Weight

10T

Loading capacity

50T

Total weight

60T

Dimensions:

Dimension

12500×2500*3700mm (The final dimensions depend

on the final design drawings)

Tanker capacity

60m3 (60000L)

Tanker body:

Design/welding technology

Heavy duty and extra durability designed;welding by automatic

Submerged-Arc processes.

Tanker body

The tanker body made of 4mm, tanker ends made of 5mm thickness

steel, Q235 steel

Bottom chassis

High strength Q345B steel

Tanker shape

"V" shape

Silo

1 silo

Manhole:

2 pieces, (Diameter is 500mm)

Discharge mouth

4 inch Discharge mouth

Safety pressure valve

Standard

Discharge hose

8m with Hose carries, the length is according to customer requirement

Air compressor

Optical

Engine

Optical

Rear ladder and handrail

Standard

Retention volume

<0.3%

OEM parts:

Axle

3* 13 tons capacity, FUWA brand (Chinese best brand)

King Pin

2.00 /3.5 inch, bolting king pin, JOST brand

Suspension

Heavy duty suspension with equalizers, American design

(high-strength type)

Steel Spring

Four sets of 10pcs leaf spring, 13mm thickness, 90mm width

Landing legs

TONGYA 28T

Tire specs

12R22.5 Triangle brand

Rim

9.0-22.5

Number of wheel

9pieces(including one spare wheel)

Brake system

WABCO relay valve; Four double brake chamber; One unit of

reliable local brand 45L air tank; Two units of reliable local brand

standard coppery air-connector.

ABS system

Without(Can be choose freely,450 USD/set)

Electrical:

One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear

light, turn light, rear reflector, side light, side reflector etc.)

Miscellaneous:

Painting

color advised by client

Marking

Standard

Side Guard

Standard

spare wheel carrier

Two set of heavy duty spare wheel carriers, including a riser.

Tools box

One piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,

1 gudgeon sleeve and 1 cranking bar)

Note: All the details not mentioned will design as the final confirmation with the customer
