Lowbed Semi Trailer
1, 50-60T loading capacity，size:15*3m, 800-850mm loading deck height customization is acceptable for style ,loading capacity and size
2, China leading semi trailer manufacturer since 1982, export business start from 2006
3, Delivery time:20 workdays
4, Shipping via RO-RO or bulk ship
Product Introduction
Weight: | Tare Weight | 11.5T |
Loading capacity | 50 T | |
Total weight | 61.5 T | |
Dimensions: | Outside dimension | 15000*3000*2950 mm |
Frame: | Design/welding technology | Heavy duty and extra durability designed; |
Main beam | Opting for high strength Q345B steel, | |
Cross beam | Heavy duty Special U steel | |
Side beam | 250mm high I beam | |
Floor | 5 mm thickness chequer plate | |
Rear ladder (ramps) | Two pieces spring steel ladder, (Q345B steel) | |
OEM parts: | Axle | 3 *13T capacity, FUWA brand (Chinese best brand) |
King Pin | 2.00’’/3.5’’ bolting king pin, JOST brand | |
Suspension | Heavy duty undermount suspension with equalizers, | |
Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width | |
Landing legs | JOST brand, manual operation landing legs with sand shoe | |
Tire specs | 8.25R20, Triangle brand (Chinese famous brand) | |
Rim | 6.5(Chinese famous brand) | |
Number of wheel | 13 pieces(including one spare wheel) | |
Brake system | WABCO relay valve; | |
ABS system | Without（Can be choose freely,450 USD/set） | |
Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Painting | color advised by client |
Marking | Standard | |
Side Guard | Standard | |
Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck | |
Note: All the details not mentioned will design as the final confirmation with the customer | ||
From our oversea customers that in different countries, 50-60T lowbed semi trailer is the most requested model
But In consideration of our customers are from different countries, and their government have different road safety rules and regulations, so the specifications of our lowbed semi trailer is different too, as an manufacturer,we can design the trailers according to the different requirements.

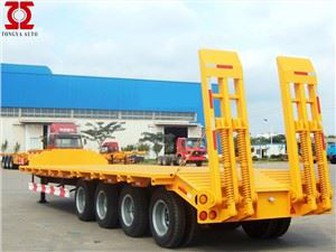

Mainly, There are two kind of lowbed semi trailer, first model is the flat deck model(orange one), this model is design for carry the machinery with the longer length but the lower height body, in some country they call this as semi lowbed trailer. Another one is the hollow deck model(yellow one ), it means with lower loading deck in the middle, this model is usually used to carry the machinery with very high body, to cross the lower bridge,tunnel or street
Our engineers will design the main beam depend on the load capacity that provided by the end user customer, we choose Q345B high tensile steel in an thicken thickness, with automatic Submerged-Arc welding processes, to make sure the lowbed semi trailer with an strong loading deck.
We Use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Double coin for our lowbed semi trailer !
Products fully comply with relevant national standard GB1589, GB/T6420 ! at the same time to meet the individual needs of customers.
Why choose us?
- Our focus is on delivering exceptional products and top-notch customer service to our clients.
- We have optimized our production processes and work methods through continuous improvement initiatives.
- Our Low Bed Semi Trailers are known for their strength, durability, and reliability.
- We provide various Lowbed Semi Trailer and services to customers all over the world. We continue to conduct research and development, strictly control product quality, standardize production processes, and work hard on logistics and retail, so that all customers can receive undamaged products smoothly.
- Our Low Bed Semi Trailers are built to withstand the toughest conditions and provide the best performance.
- In order to become a stakeholder-satisfied enterprise, we will give more prominence to technological progress and people-oriented.
- Our Low Bed Semi Trailers are designed to ensure easy maintenance and longevity.
- We are committed to being a benchmark enterprise, leading the sound development of industry norms.
- We strive to offer our clients the best value for their money with our high-quality Low Bed Semi Trailers.
- We will use and make good use of existing resources, strengthen management, and innovate with a more friendly and sincere attitude.
