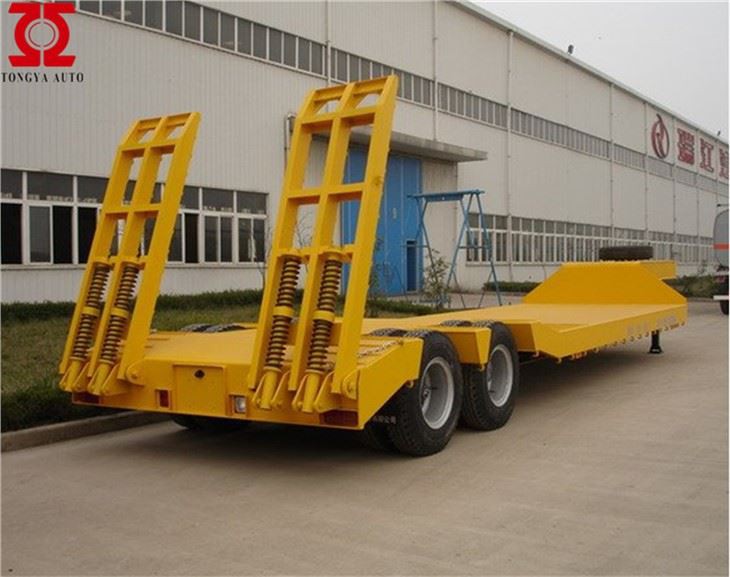

Lowbed Trailer

1, Used for carry excavator, loader, bulldozer and other heavy machinery
2, Customization is acceptable for style ,loading capacity and size
3, China leading semi trailer manufacturer since 1982, export business start from 2006

Send Inquiry

Product Introduction

Description
Semi-trailers are often used in long-distance transportation, and this Lowbed Trailer is widely praised by customers for its affordable price and good quality. From the perspective of practicality, the product can transport 50 tons of products at one time, so the transportation effect is greatly improved. In terms of safety, the tires of this product are made of high-quality rubber, which will not crack or explode easily, so the driving safety is guaranteed. The whole floor is large and wide, and can be used to place many goods. We adhere to the principle of customer first, so you can ask us if you have any questions.

Features
The biggest feature of this Lowbed Trailer is its carrying capacity. It has become one of our best-selling products due to the super-load gravity of 50 tons of goods. The selected paint is made of environmentally friendly materials, which has good color fixation and will not volatilize toxic and harmful substances. The entire base plate is very solid, and will not be deformed due to external impact force or temperature change. The tare weight is 11.5T, loading capacity is 50 T, total weight is 61.5 T. Our products have always been praised by customers, and you are very welcome to buy our products.

Dimensions:	Outside dimension	1300030002950 mm (The final dimensions depend on the final design drawings)
Frame:	Design/welding technology	Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes.
	Cross beam	Heavy duty Special U steel
	Side beam	250mm high I beam
	Floor	5 mm thickness chequer plate
	Rear ladder (ramps)	Two pieces spring steel ladder, (Q345B steel)
OEM parts:	Axle	3 *13T capacity, FUWA brand (Chinese best brand)
	King Pin	2.00’’/3.5’’ bolting king pin, JOST brand
	Suspension	Heavy duty undermount suspension with equalizers, American design (high-strength type)
	Steel Spring	10pcs leaf spring, 13mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	8.25R20, Triangle brand (Chinese famous brand)
	Rim	6.5(Chinese famous brand)
	Number of wheel	13 pieces(including one spare wheel)
	Brake system	WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.
	ABS system	Without（Can be choose freely,450 USD/set）
	Electrical:	One unit of 24V 7-pin ISO 1185 socket; LED lights
