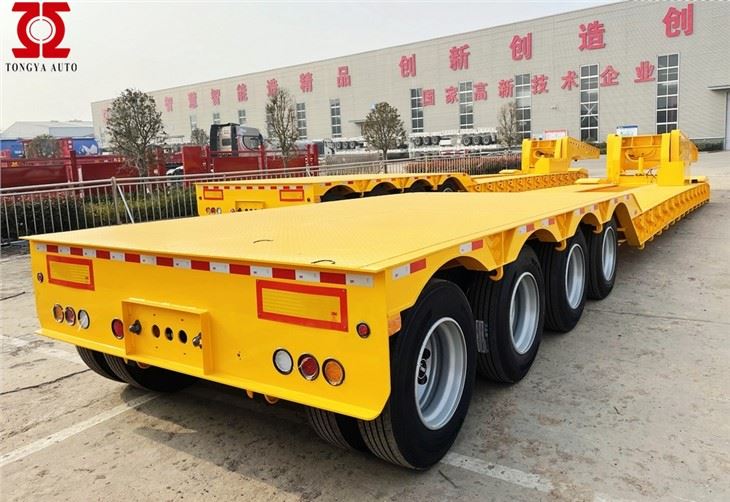

Hydraulic Low Bed Trailer

1, Specially heavy duty low bed trailer
2, Customization is acceptable for style ,loading capacity and size
3, Delivery within 25 days,12 months of quality guarantee is provided

Send Inquiry

Product Introduction

Weight:	Tare Weight	15 T
	Loading capacity	85 T
	Total weight	100 T
Dimensions:	Outside dimension	1500030002950 mm (The final dimensions depend on the final design drawings)
Frame:	Design/welding technology	Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes.
	Main beam	Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 25mm, width 140mm; Bottom Flange thickness 25mm, width 140mm. Middle Flange thickness 14mm;
	Cross beam	Heavy duty Special U steel
	Side beam	280mm high I beam
	Floor	5 mm thickness chequer plate
	Rear ladder (ramps)	No rear ramp
OEM parts:	Axle	4 *13T capacity, FUWA brand (Chinese best brand)
	King Pin	2.00’’/3.5’’ bolting king pin, JOST brand
	Suspension	Heavy duty undermount suspension with equalizers, American design (high-strength type)
	Steel Spring	10pcs leaf spring, 13mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	11.00R20, Triangle brand (Chinese famous brand)
	Rim	8.0(Chinese famous brand)
	Number of wheel	13 pieces(including one spare wheel)
	Brake system	WABCO relay valve; Eight double brake chamber; Two units of ISO standard coppery air-connector.
	ABS system	Without（Can be choose freely,450 USD/set）
	Electrical:	One unit of 24V 7-pin ISO 1185 socket; LED lights
Miscellaneous:	Painting	color advised by client
	Marking	Standard
	Side Guard	Standard
	Spare Tire Carriers	Two set of heavy duty spare wheel carriers
	Tools box	One piece (1. 00. 50. 5m), under the goose neck (with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer

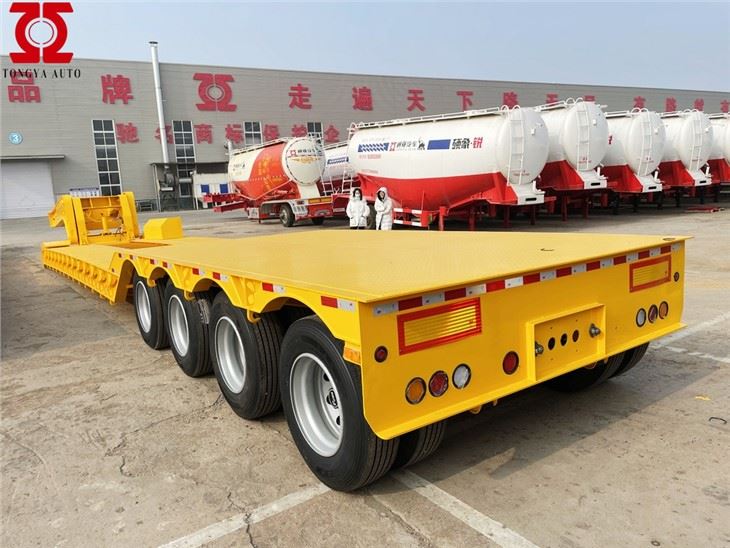

Usually the hydraulic low bed trailer is an special trailer with hydraulic goose neck.

This hydraulic low bed trailer with very heavy duty loading capacity, used for carry very big machinery with very big size and very heavy weight, and can not climb the rear ramp of the normal standard lowbed trailer.

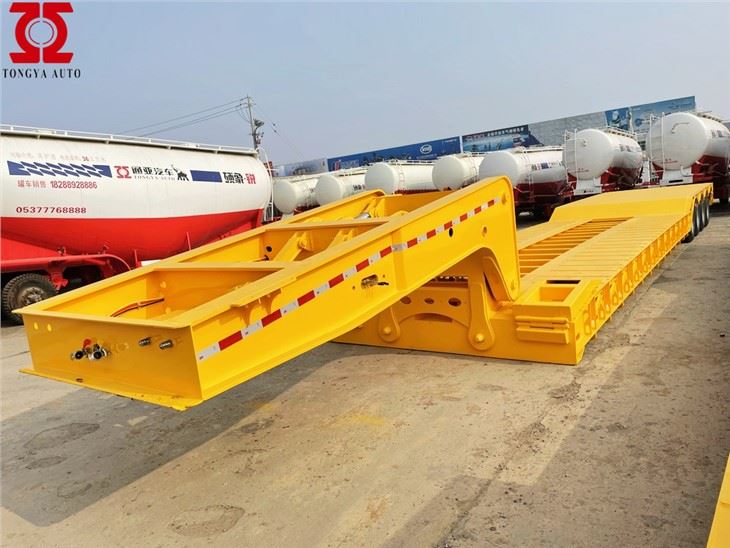

This special trailer with the front loading hydraulic system, then the big heavy machine can be climb to the loading deck from the front after the goose neck is detachable from the trailer.

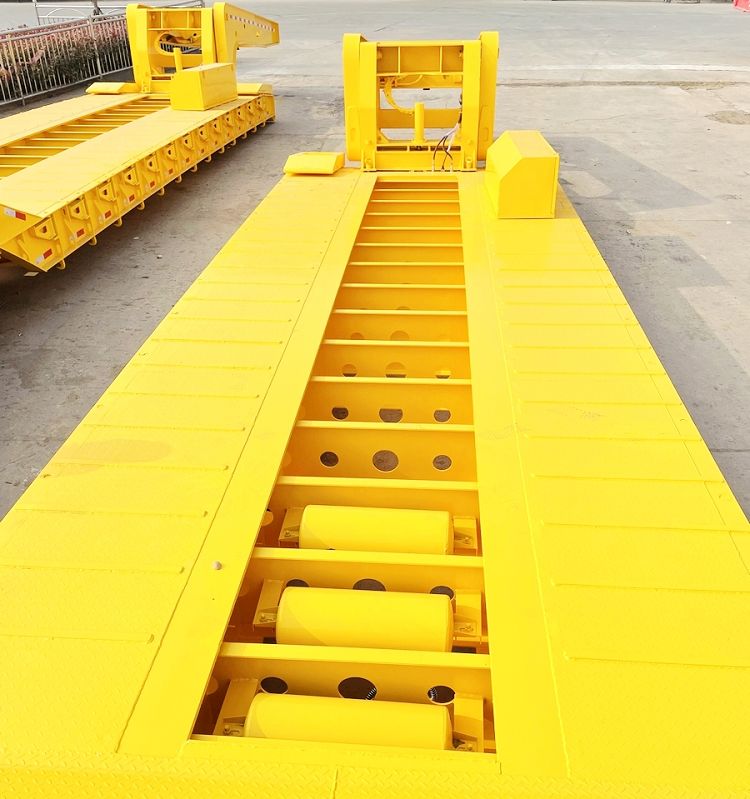

2(001)

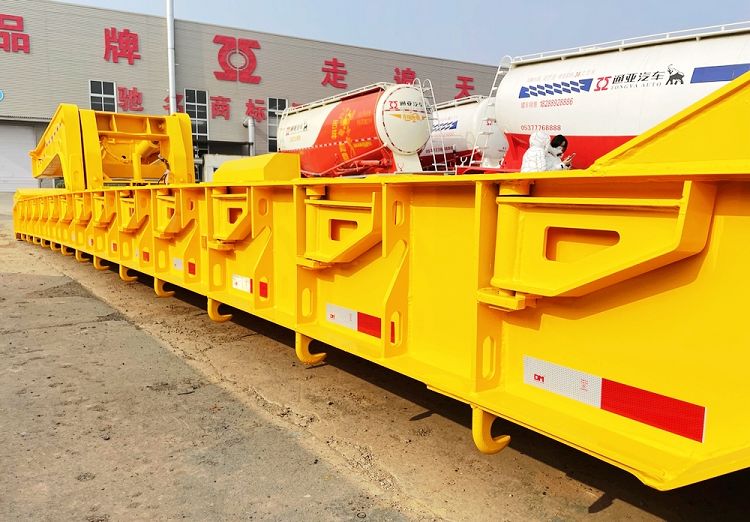

3(001)

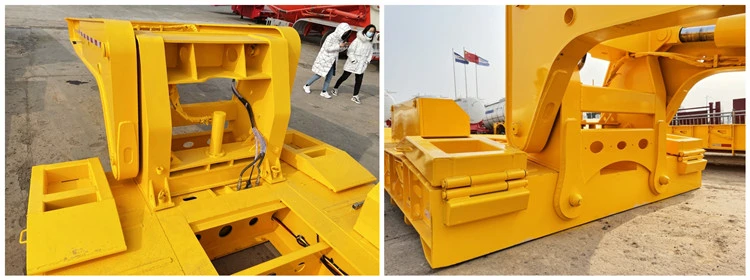

initpintu_1

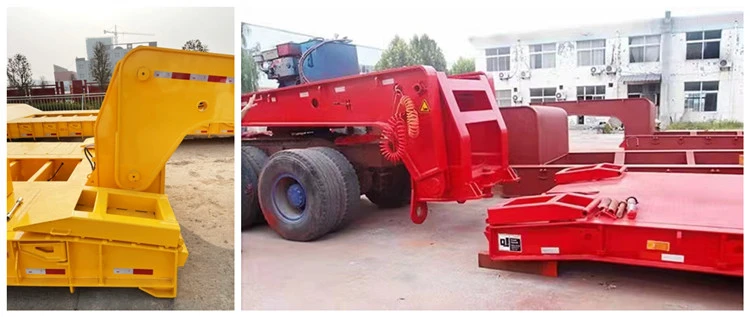

initpintu_2

In consideration of our customers are from different countries, and their government have different road safety rules and regulations, so the specifications of our hydraulic low bed trailer especially the size and loading capacity is different, as an manufacturer,we can design the trailers according to the different requirements of our customers, to each and every customer.

And if you want an longer loading deck with with limited overall length, then

3 lines 6 axles hydraulic low bed trailer is the best choice, this is an special heavy duty trailer, with 24 wheelers, and very strong suspension.

6(001)

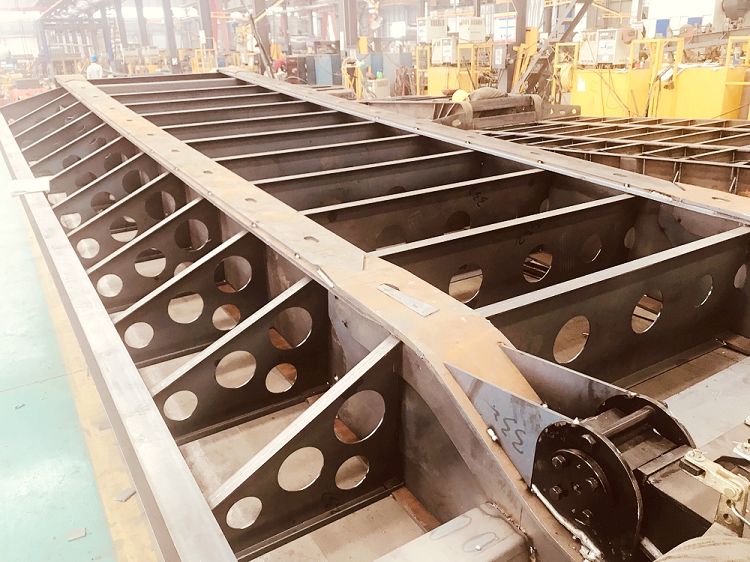

Our engineers will design the main beam depend on the load capacity that provided by the end user customer, we choose Q345B high tensile steel in an thicken thickness, with automatic Submerged-Arc welding processes, to make sure the gooseneck low bed trailer with an strong loading deck.

7(001)
