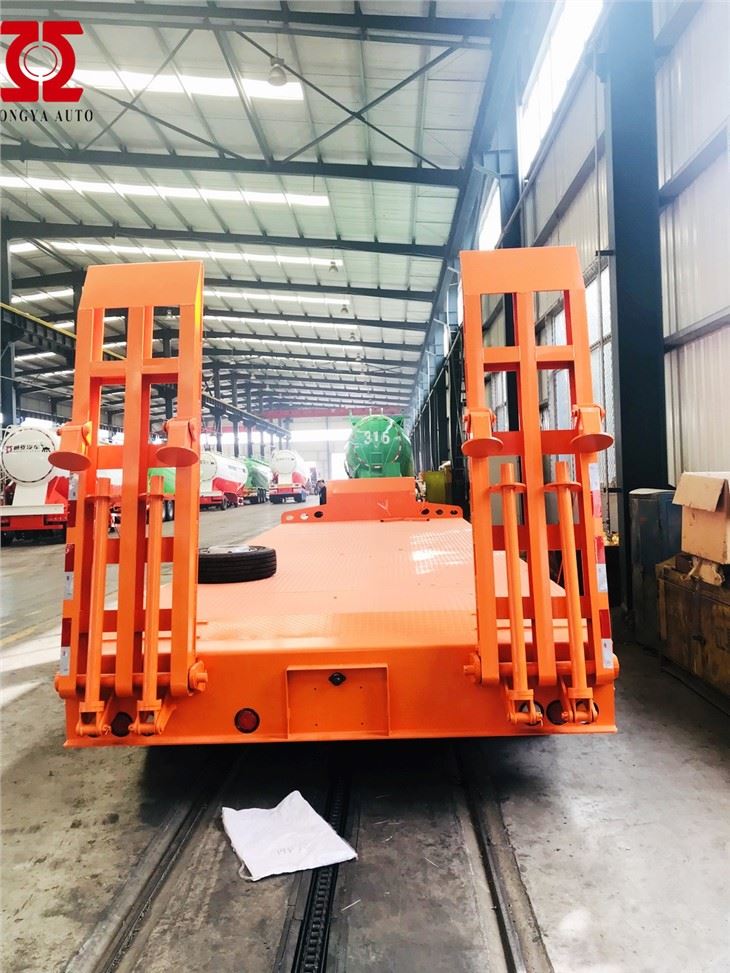

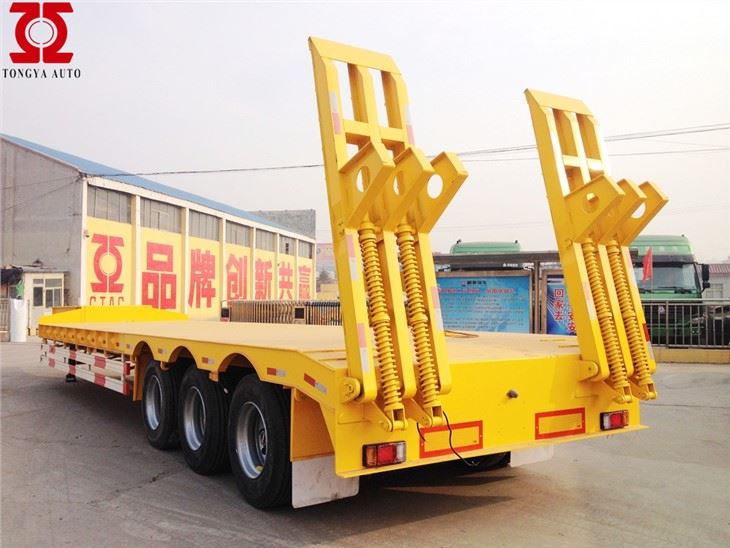

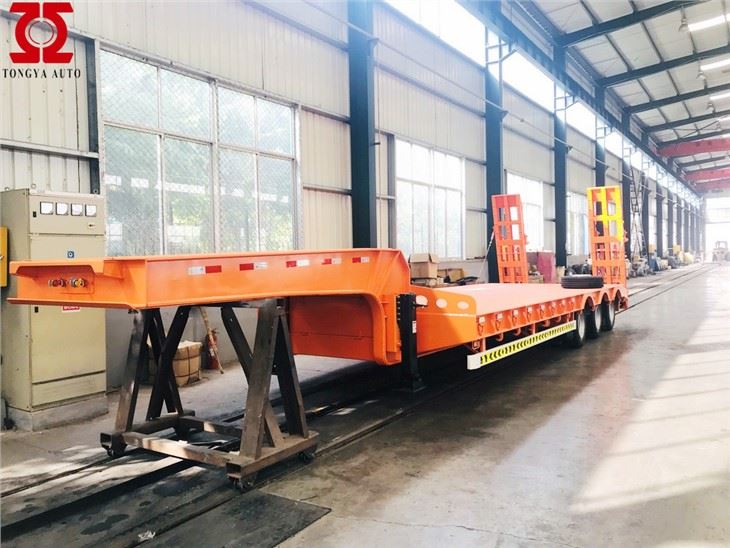

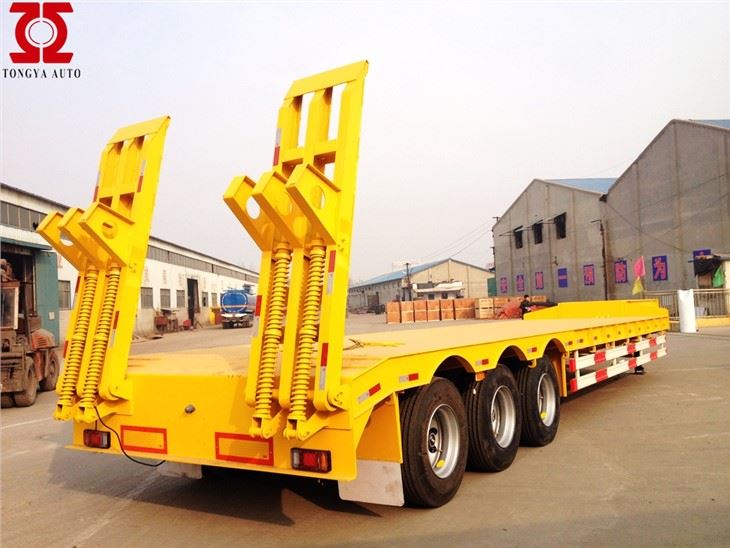

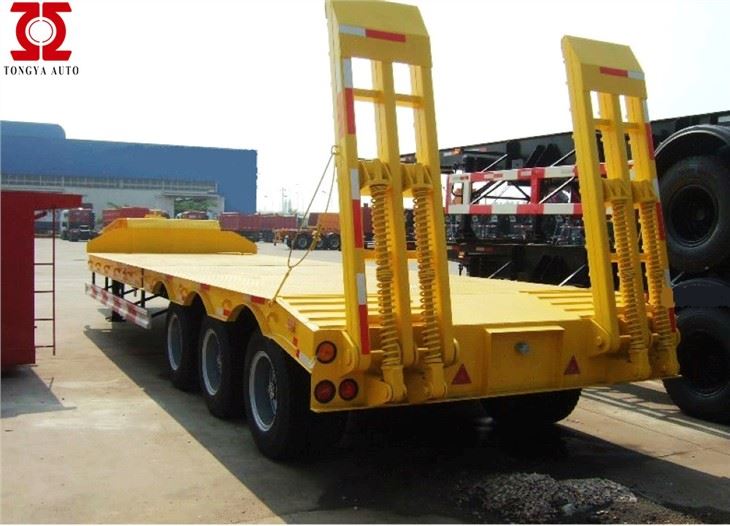

60tons Low Bed Trailer
1, 60Tons loading capacity, customization is acceptable for style ,loading capacity and size
2, China leading manufacturer since 1982
3, Shipping via RO-RO or bulk ship
Product Introduction
Description

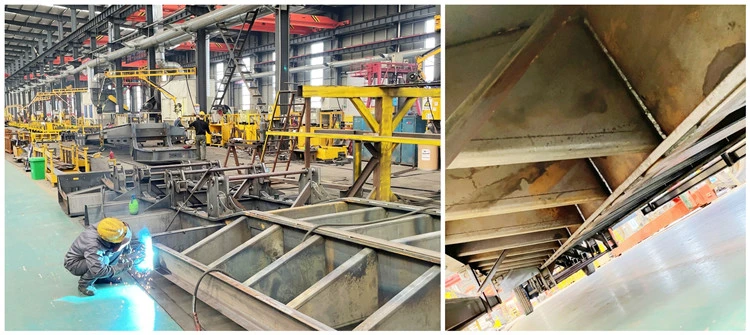

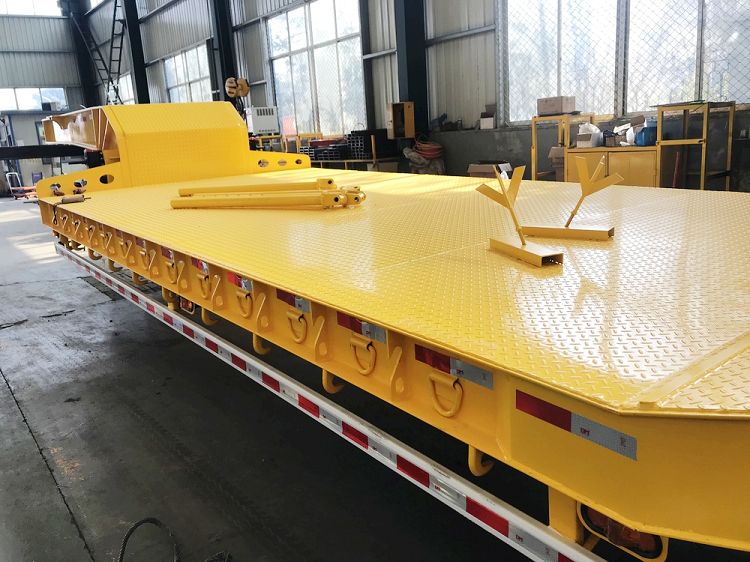

60tons Low Bed Trailer has a tare weight of 11.5T, a carrying capacity of 60 T, a total weight of 71.5 T, and a size of 15000 * 3000 * 2950 mm. The product can withstand the super load and has excellent durability. The automatic submerged arc welding process can closely connect each piece of steel to ensure good stability. The bottom plate is made of 5mm thick checkerboard, which has excellent load capacity and durability, and can guarantee the service life while transporting goods in large quantities. It has 4 double brake chambers and 2 single brake chambers to obtain good braking performance.
Features
60tons Low Bed Trailer is a good helper in the transportation process. First of all, its floor is very wide, so it can carry a variety of goods at one time. Secondly, its excellent load-carrying capacity enables it to bear the weight of up to 60t, so this product is suitable for transporting large and heavy goods. Due to its characteristics, the efficiency of transportation has been greatly improved. In order to make the product run stably, we have loaded 13 wheels for it. The material of the loading plate is 5mm thick, providing excellent loading force and stability.
Information
Painting: color advised by client
Marking: Standard
Spare Tire Carriers: Two set of heavy duty spare wheel carriers
ABS system: Without（Can be choose freely,450 USD/set）
Details
Main beam | Opting for high strength Q345B steel, |
Cross beam | Heavy duty Special U steel |
Side beam | 250mm high I beam |
Rear ladder (ramps) | Two pieces spring steel ladder, (Q345B steel) |
Tire specs | 10.00R20, Triangle brand (Chinese famous brand) |
Rim | 7.5(Chinese famous brand) |
Number of wheel | 13 pieces(including one spare wheel) |
Axle | 3 *13T capacity, FUWA brand (Chinese best brand) |
Suspension | Heavy duty undermount suspension with equalizers, |
Steel Spring | 10pcs leaf spring, 13mm thickness, 90mm width |
Landing legs | JOST brand, manual operation landing legs with sand shoe |
Brake system | WABCO relay valve; |
Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights |
Note: All the details not mentioned will design as the final confirmation with the customer | |

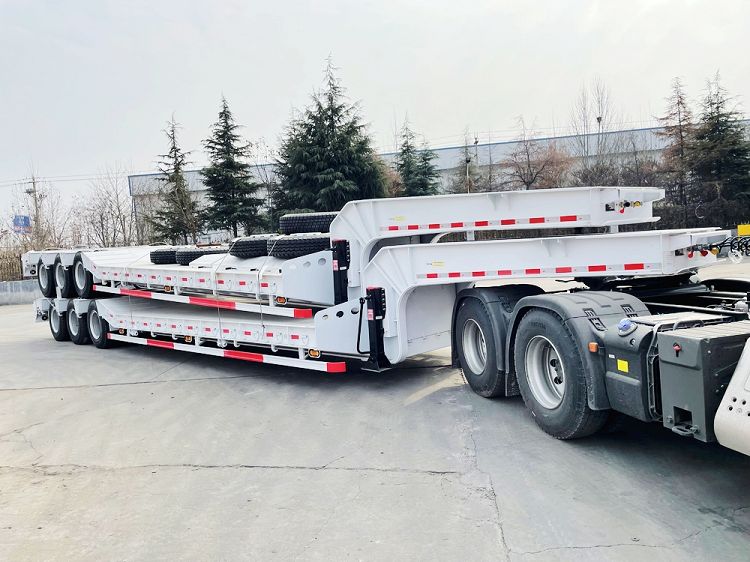

Shipping by bulk cargo ship or by roll-on-roll-off ship, two or three 60tons low bed trailer stack together to decrease the total size, to cut down the shipping freight
