Heavy Duty Low Bed Trailer
1, 85-100T loading capacity，size:16*3.2m, 820-850mm loading deck height
2, Customization is acceptable for size, style and loading capacity
3, China leading semi trailer manufacturer since 1982, export business start from 2006
4, With more than 400 welders to make sure delivery on time
Product Introduction
Weight: | Tare Weight | 15.5T |
Loading capacity | 90T | |
Total weight | 100.5 T | |
Dimensions: | Outside dimension | 16000*3200*2950 mm |
Frame: | Design/welding technology | Heavy duty and extra durability designed; |
Main beam | Opting for high strength Q345B steel, | |
Cross beam | Heavy duty Special U steel | |
Side beam | 250mm high I beam | |
Floor | 5 mm thickness chequer plate | |
Rear ladder (ramps) | Two pieces spring steel ladder, (Q345B steel) | |
OEM parts: | Axle | 3 lines 6 axle, 90T capacity,TONGYA brand |
King Pin | 2.00’’/3.5’’ bolting king pin, JOST brand | |
Suspension | Heavy duty suspension with equalizers, | |
Steel Spring | No leaf spring | |
Landing legs | JOST brand, manual operation landing legs with sand shoe | |
Tire specs | 10.00R20, Triangle brand (Chinese famous brand) | |
Rim | 7.5(Chinese famous brand) | |
Number of wheel | 25 pieces(including one spare wheel) | |
Brake system | WABCO relay valve; | |
ABS system | Without（Can be choose freely,450 USD/set） | |
Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED lights | |
| Painting | color advised by client |
Marking | Standard | |
Side Guard | Standard | |
Spare Tire Carriers | Two set of heavy duty spare wheel carriers | |
Tools box | One piece (1. 0*0. 5*0. 5m), under the goose neck | |
Note: All the details not mentioned will design as the final confirmation with the customer | ||
3 lines 6 axles is the best design for the very heavy duty low bed trailer, this kind of the trailer is used for carry very big machinery, with very big size and very heavy weight. See the following picture,

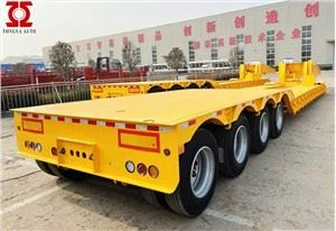

If you think 3 lines 6 axles model is too expensive, we have another kind of heavy duty low bed trailer , this model is the one with 4 or 5 pcs standard axle, this one is cheaper but the loading capacity is 80T at most. See the picture at below:
In consideration of our customers are from different countries, and their government have different road safety rules and regulations, so the specifications of our heavy duty low bed trailer especially the size and loading capacity is different, as an manufacturer,we can design the trailers according to the different requirements of our customers, to each and every customer.

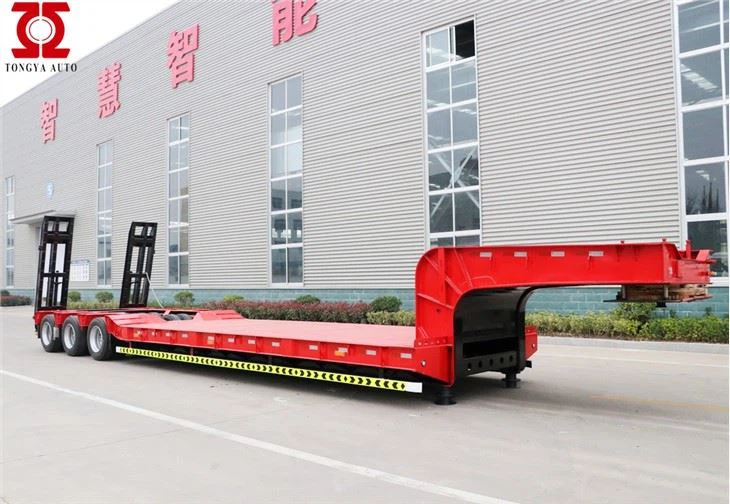

Then we have the third model: front loading heavy duty low bed trailer
This one is with detachable goose neck and front loading, and with no rear ramp, this model is suit for the machinery that is not strong enough to climb the rear ramp, climb from the front is easier cause the angle is more flat, please see the following picture:
Please email or message us for the further detailed specifications, drawings, price and picture if you are interested in one of our heavy duty low bed trailer.
