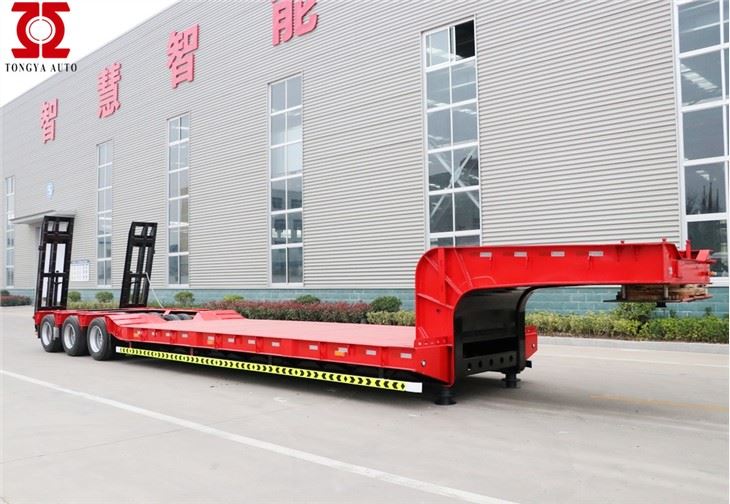

Trailer for Excavator

Loading capacity

55 T

Total weight

71.5 T

Dimensions:

Outside dimension

14000*3000*2950 mm
(The final dimensions depend on the final design drawings)

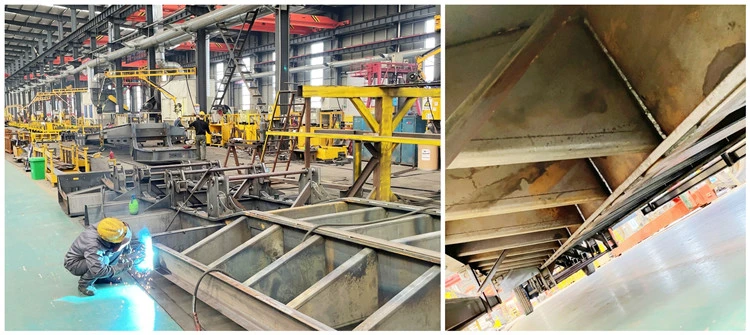

Frame:

Design/welding technology

Heavy duty and extra durability designed;
welding by automatic Submerged-Arc processes.

Main beam

Opting for high strength Q345B steel,
520mm deep welded I-section main beams
Top Flange thickness 20mm, width 140mm;
Bottom Flange thickness 20mm, width 140mm.
Middle Flange thickness 12mm;

Cross beam

Heavy duty Special U steel

Side beam

250mm high I beam

Floor

5 mm thickness chequer plate

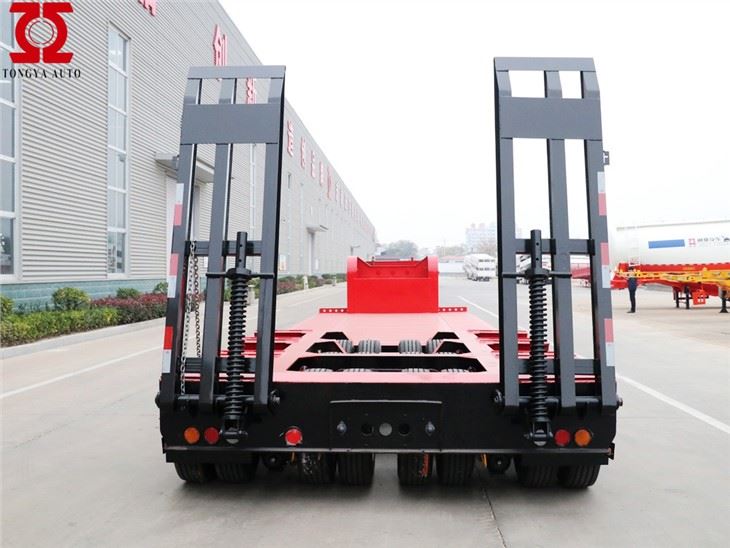

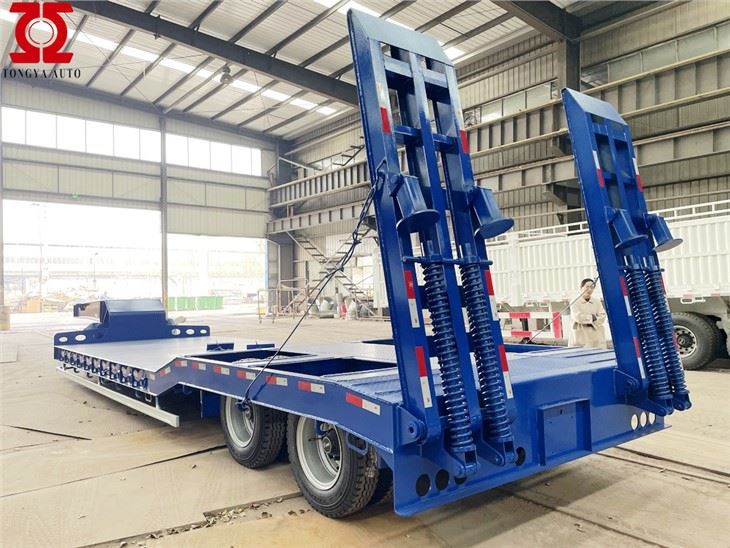

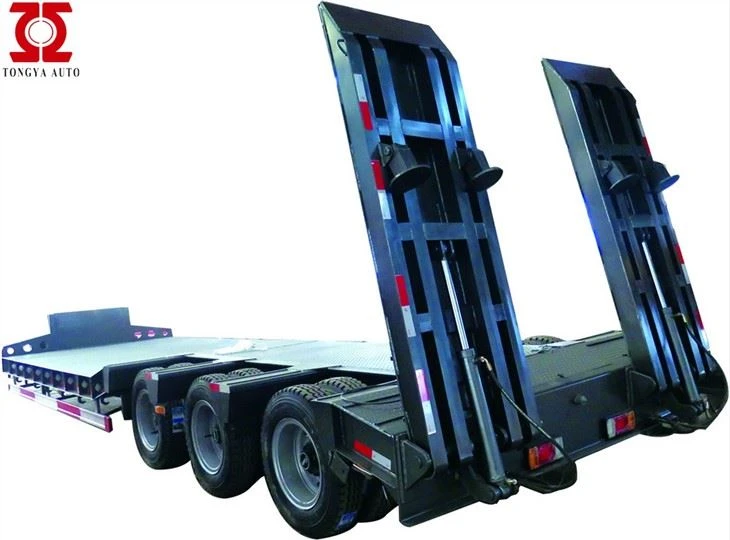

Rear ladder (ramps)

Two pieces spring steel ladder, (Q345B steel)

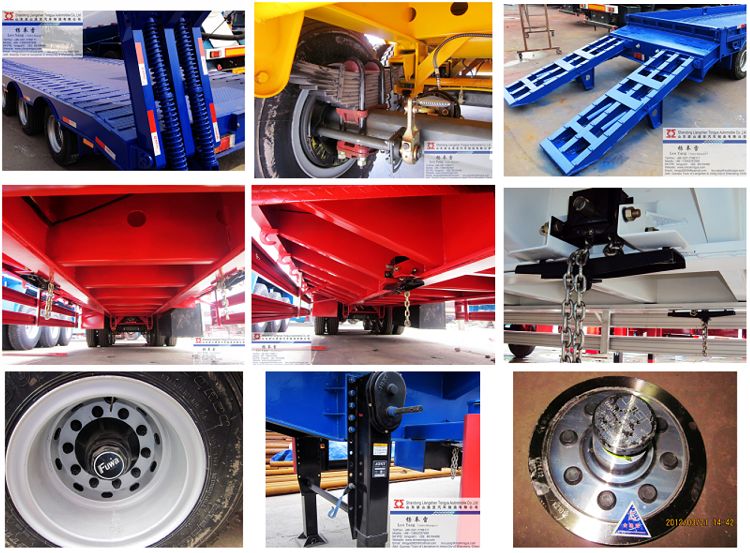

OEM parts:

Axle

3 *13T capacity, FUWA brand (Chinese best brand)

King Pin

2.00’’/3.5’’ bolting king pin, JOST brand

Suspension

Heavy duty undermount suspension with equalizers,
American design (high-strength type)

Steel Spring

10pcs leaf spring, 13mm thickness, 90mm width

Landing legs

JOST brand, manual operation landing legs with sand shoe

Tire specs

8.25R20, Triangle brand (Chinese famous brand)

Rim

6.5(Chinese famous brand)

Number of wheel

13 pieces(including one spare wheel)

Brake system

WABCO relay valve;
Four double and two single brake chamber;
Two units of ISO standard coppery air-connector.　

ABS system

Without（Can be choose freely,450 USD/set）

Electrical:

One unit of 24V 7-pin ISO 1185 socket; LED lights

　
　
　
Miscellaneous:

Painting

color advised by client

Marking

Standard

Side Guard

Standard

Spare Tire Carriers

Two set of heavy duty spare wheel carriers

Tools box

One piece (1. 0*0. 5*0. 5m), under the goose neck
(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)

Note: All the details not mentioned will design as the final confirmation with the customer
