50T Lowbed Semi Trailer

1, Delivery within 25 days
2, 12 months of quality guarantee is provided
3, Customization is acceptable for style ,loading capacity and size
4, China leading semi trailer manufacturer since 1982, export business start from 2006

Send Inquiry

Product Introduction

Description

50T Lowbed Semi Trailer is suitable for various transportation occasions and can be connected behind various vehicles. The product has a tare weight of 11.5T, a total weight of 61.5 T, a load capacity of 50 T, and a size of 13000 * 3000 * 2950 mm. Automatic submerged arc welding process is adopted for welding to obtain excellent stability. Excellent corrosion resistance makes this product suitable for transportation of various substances with weak acid and alkali. In addition, the product has good mechanical stability and chemical stability, so its durability is very good. The color of this product can be customized, and we can also add other devices according to your requirements.

Features

From the perspective of practicality, 50T Lowbed Semi Trailer can transport 50 tons of products at one time, so the transportation effect is greatly improved. We choose 4-axis instead of standard 3-axis to increase more load capacity. We chose Q345B high-strength steel to make this product to ensure that it has good impact resistance and durability. This product is suitable for medium and long distance transportation of medium and heavy goods and bulk goods. In addition, these paints are environmentally friendly materials, so they will not have adverse effects on the goods. If you have any questions, you can consult us.

Frame:	Design/welding technology	Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes.
	Main beam	Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 20mm, width 140mm. Middle Flange thickness 12mm;
	Cross beam	Heavy duty Special U steel
	Side beam	250mm high I beam
	Floor	5 mm thickness chequer plate
	Rear ladder (ramps)	Two pieces spring steel ladder, (Q345B steel)
OEM parts:	Axle	3 *13T capacity, FUWA brand (Chinese best brand)
	King Pin	2.00’’/3.5’’ bolting king pin, JOST brand
	Suspension	Heavy duty undermount suspension with equalizers, American design (high-strength type)
	Steel Spring	10pcs leaf spring, 13mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	8.25R20, Triangle brand (Chinese famous brand)
	Rim	6.5(Chinese famous brand)
	Number of wheel	13 pieces(including one spare wheel)
	Brake system	WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.
	ABS system	Without（Can be choose freely,450 USD/set）

1(001)

2(001)

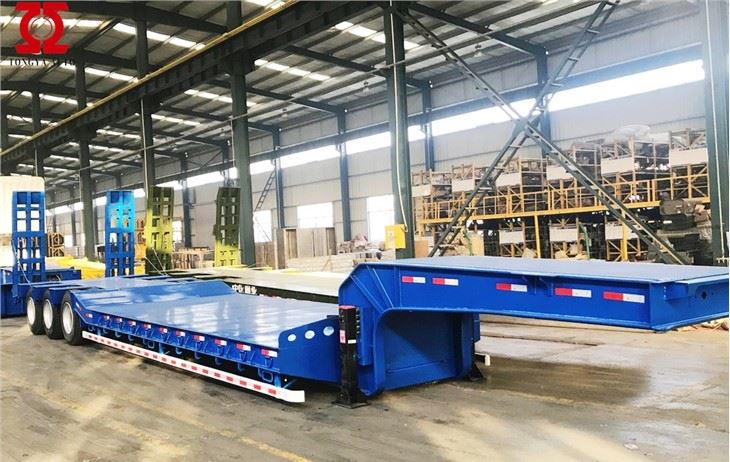

And to make the loading deck more lower, we usually choose the tire top-open with under mounted suspension design for the 50T lowbed semi trailer( the blue one of the following pictures)
