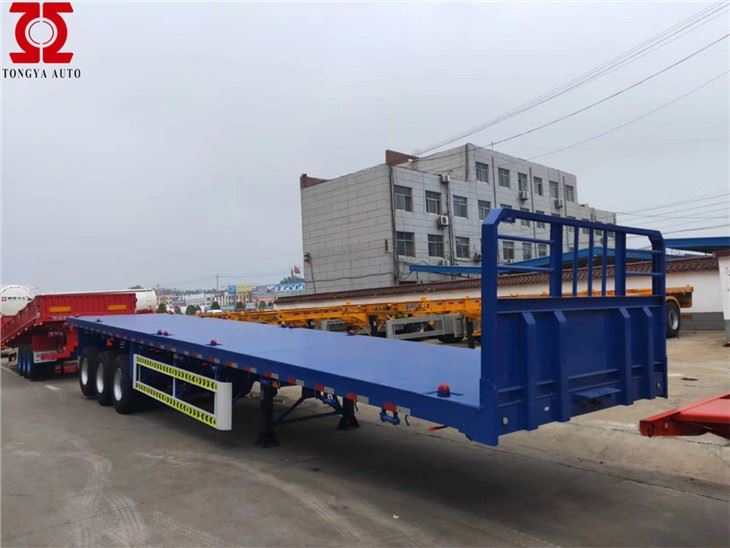

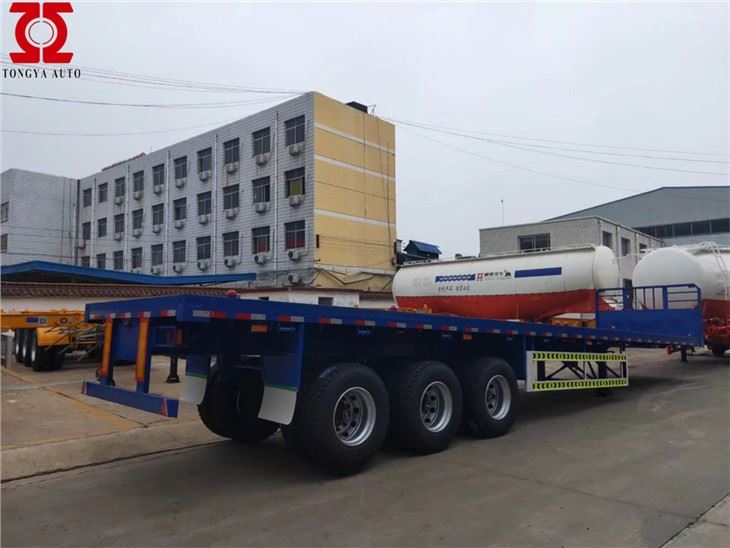

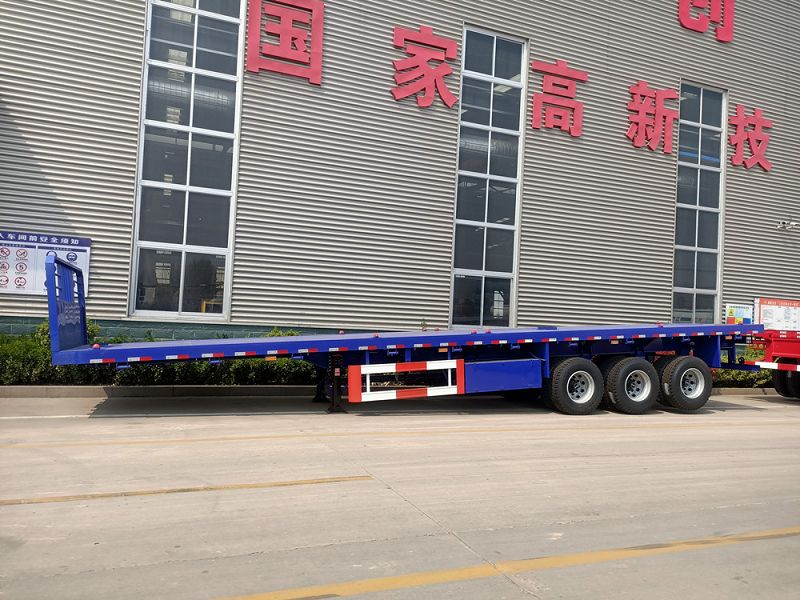

45ft Semi Trailer
45ft semi trailer is made of high-quality steel, advanced technology and strict production technology.
The structure of 45ft semi trailer is reasonable, reliable, easy to operate and beautiful.
Product Introduction
45ft semi trailer is a typical open-deck device with no roof and no sides.
It is mainly used to transport 45ft container and other goods . The flat body makes loading and unloading easier.
All parts are manufactured by famous manufacturers at home and abroad, and they are purchased, inspected and used in strict accordance with the requirements of quality system documents to ensure the good performance of the vehicle.
45ft semi trailer specifications
Overall (L*W*H) | 13950*2500*1600mm |
Frame | Material:High strength low alloy Q345 steel |
Main beam height:500 mm | |
Thickness of main beam:upper: 14mm, lower: 16 mm, web plate: 8mm | |
Floor | 3 mm checkered plate |
Side beam: | 16# channel steel |
Axle | 3*13 tons TONGYA axles |
Tire | 12R22.5 Tire,12 pcs |
Rim | 9.00*22.5, 12 pcs |
Braking System | 6 Double-chamber , Duel Line Brake System |
Suspension | Mechanical spring suspension, 10 pieces |
King Pin | 2" (50#) or 3.5"(90#) high tensile steel bolted type |
Landing Leg | 28T landing leg |
Twist Lock | 12 pcs |
Accessories | 1 waterproof tool box with stainless lock,2 spare tire carrier |
Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
Color | Any color will be available |
After 35 years of exploring the international market ,our 45ft semi trailer is well known and accepted by our customers from Afria,Midde east,South Asia,and South America.

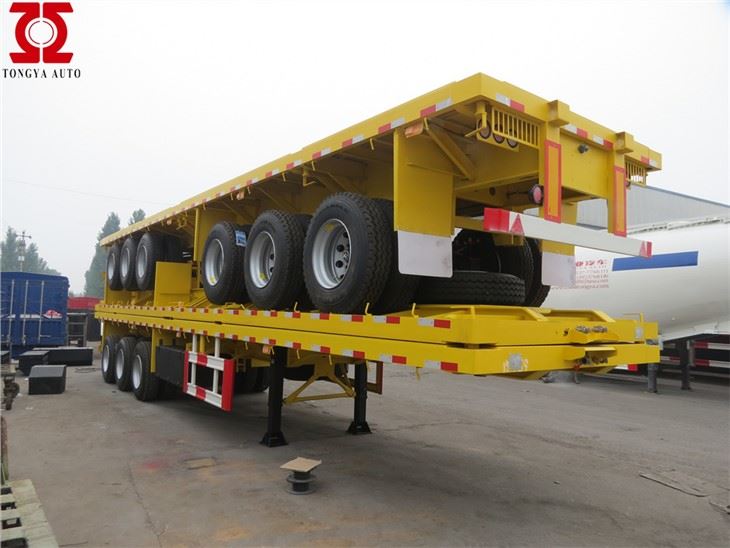

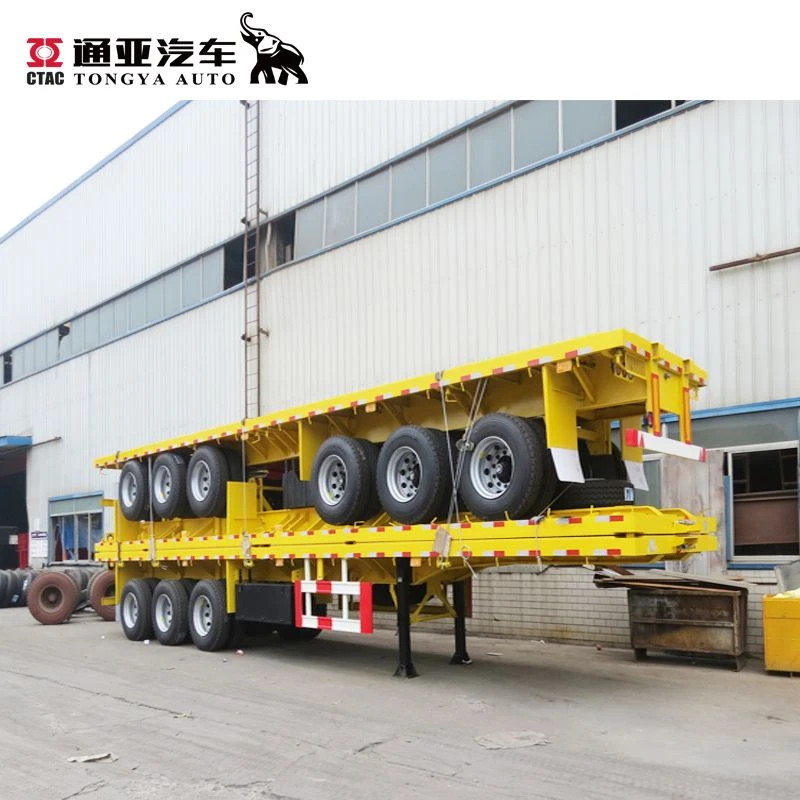

We can deliver 45ft semi trailer by bulk cargo carrier/RORO, the following pictures for your reference:
We are the manufacturer, our price is more competitive than trading company ,our quality is more reliability than small factory ;our service is better and more efficient than other supplier.
45ft Flatbed semi trailer is not full range of our products, more information is available from us !
If you have any question,please feel free to contact with me at any time !
Favorable policies are provided for you to join us as the dealer.
You are always welcomed to visit our company and factory for business cooperation !!!
