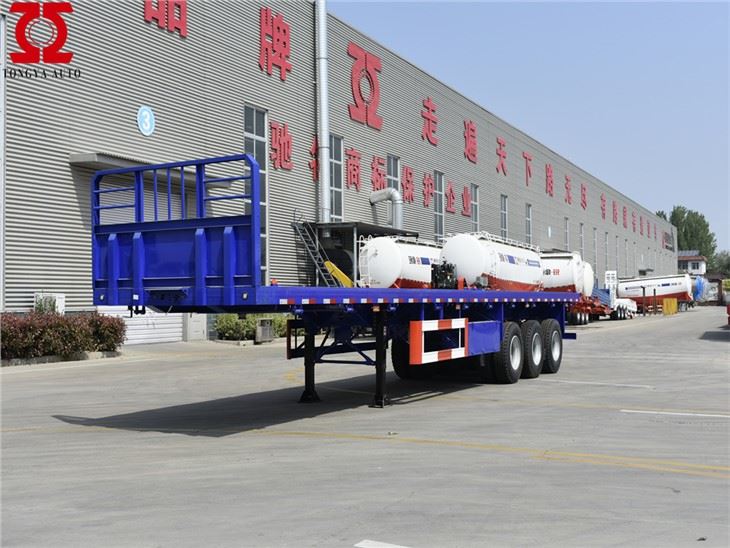

Flat Bed Trailer

flat bed trailer used and features:
1,Flat bed trailer. Port is mainly used in ships, hubs, Bridges, highway, tunnel, multimodal transport matching logistics system.
2,Can undertake rapid loading and unloading, and can easily change directly from a means of transport to another transport.

Send Inquiry

Product Introduction

Products Introuctiond

The Flat Bed Trailer is mainly made of high elasticity solid tires, which can enhance the load-bearing capacity and service life of the trailer and reduce the damage caused by vehicle upsets to the cargo during driving. Secondly, we have a sturdy design and easy to clean feature. What's more, our products have a fashionable design. Finally, if you are interested in our products, please contact and communicate with us in time.

Products Feature

The Flat Bed Trailer have the advantages of simple structure, easy to use, easy maintenance, large load capacity and less pollution. Secondly, we generally use pneumatic solid tires with low board height and large loading capacity. What's more, the pin materials of our joints parts are made of alloy steel, which are processed by treatment. Finally, our product design is reasonable, using I-beam main beam to increase the bearing capacity and improve the stability of the whole vehicle.

1(001)

Flat bed trailer specification

Name	Flat bed trailer
Model	CTY9410
Overall dimension	12500 2500 1500mm
Loading capacity	40T
Axle brand and number	13TFuwa Brand, 3 units
Kingpin	90#
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Tyre and quantity	12R22.5 12pieces
Landing gear	28T, double speed operation
Platform plate	3mm Checkered steel plate
Brake system	Dual Line braking system ,none ABS.
Brake air chamber	Four double and two single chamber
Electrical system	24V,7 pin socket,One set 6-core standard Cable
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box	1 set
Spare tire carrier	2 sets
Painting	Optional
Packing	Polish with wax before shipping
