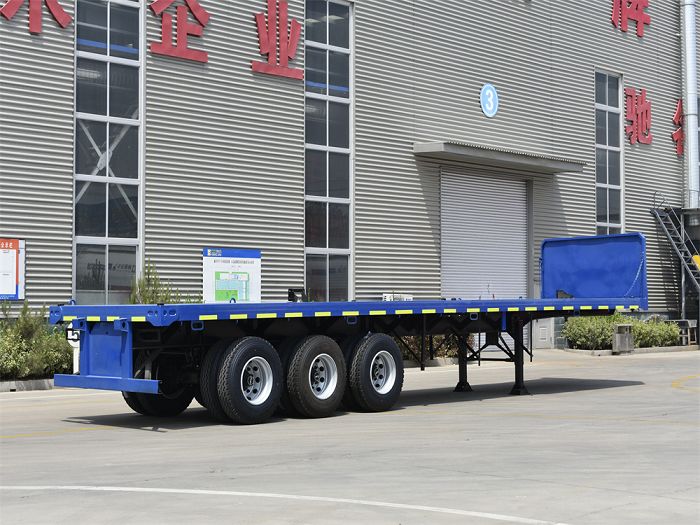

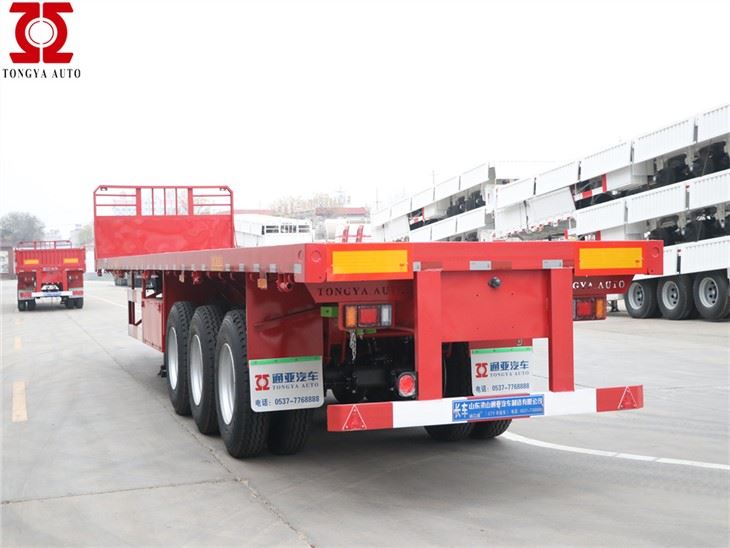

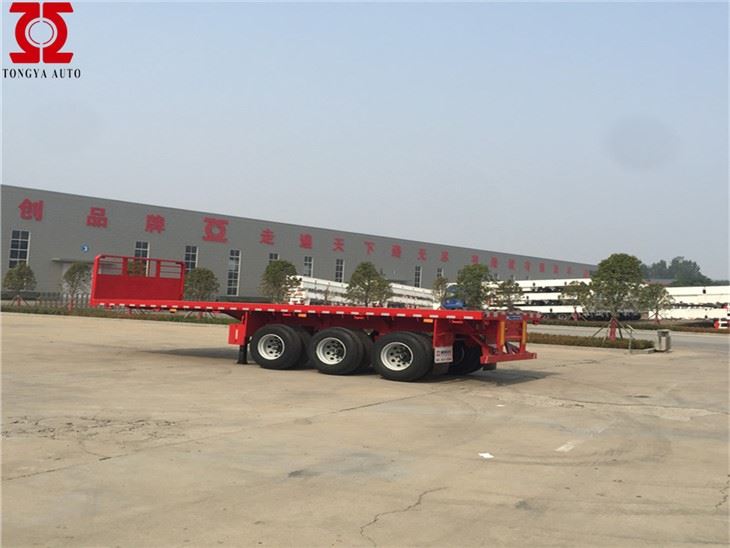

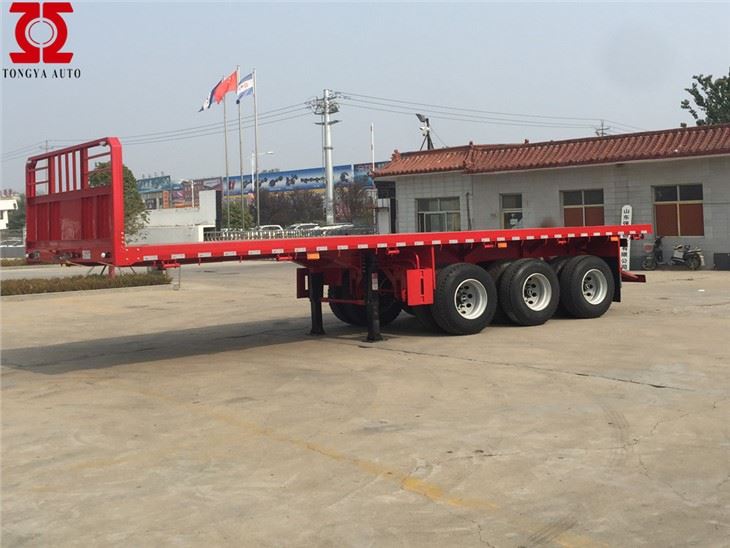

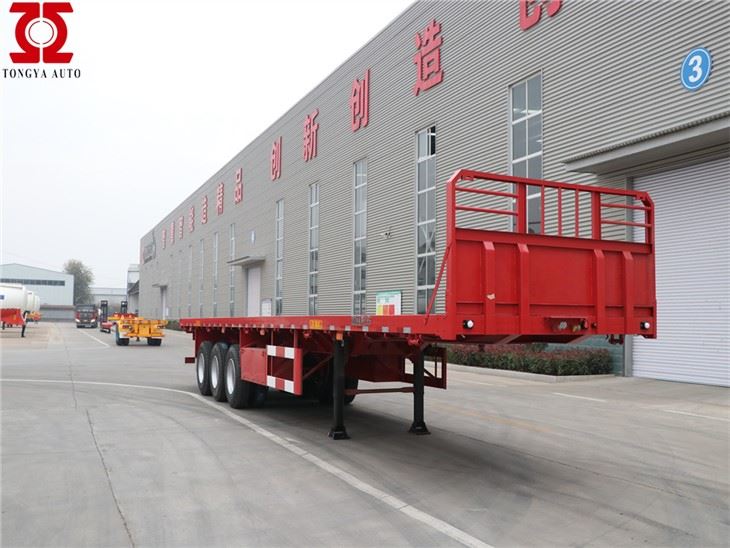

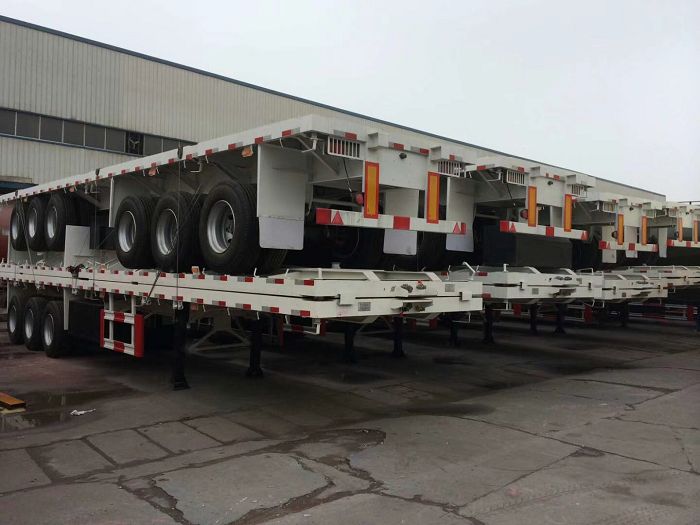

Flatbed Trailer
China leading trailer manufacturer since 1988, can supply many kinds of trailer for you !
1.Flatbed trailer used for transporting 40ft or 20ft container
2.Trailer manufacturer supply high quality trailer with competitive price.
Product Introduction
Our company has passed the evaluations of CCC ,SGS and ISO9001:2000 certifications. Our company has won titles of "Top 100 Powerful Enterprise in Sales Income and Profits and Taxes Paid by Shandong Provincial Machinery Industry Office", "Demonstration Enterprise in Technical Innovation", "Enterprise with AAA Grade Rating in Credit Standing" by Shandong Industrial and Commercial Bank and Agricultural Bank, We warmly welcome customers at home and abroad to cooperate with us for mutual
benefits.

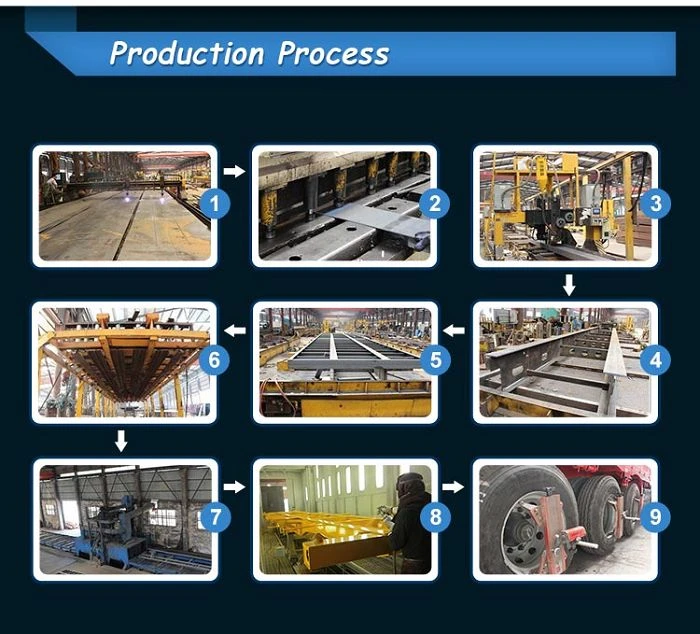

We have making flatbed trailer for our abroad clients for more than ten years ,and having a strong and experienced technical team for designing and more than 1000 workers for production , Advanced design concept,the chassis is designed using CAD/CAE software;Intelligent production process: Laser cutting, Automatic welding robot, Electrophoretic dusting+stoving paint technology;high quality with strong body for large loading capacity; it also can be well used in bad road condition;
we can design and make flatbed trailer specifically according to your requirement!
Flatbed trailer configurations
Tare Weight | 7-7.5T |
Dimension | 12500mm×2500mm×1550mm(adjustable) |
Loading Capacity | 40T |
Axle | 13T/ FUWA Brand |
Tire | 12R22.5 |
Rim | 9.00-22.5 |
Suspension | Mechanical suspension(Germany Type or America Type) |
Spring leaf | 90(Width)mm×13(Thickness)mm×10(Layer) |
Main beam | Height is 500mm, upper plate thickness is 14mm, middle plate thickness is 10mm, down plate thickness is 16mm; |
Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks |
ABS | Optional |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One or two pieces (Size can be chosen freely)(equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints |
Shipping Terms | By 40HQ container or bulk cargo carrier/RORO |
Things you should know about 40ft container trailer
If you are looking for a 40ft flatbed trailer, then this is the 100% right place for you.
We, TONGYADA brand trailer is different 40ft container trailer for sale factory, 40ft container flatbed semi trailer is one of our product. Mainly export to international transportation market.
The 40ft flatbed trailer is normally to transport 40ft containers. But at the same time, it can transport two 20ft container in the same time too.
The frame of 40ft flatbed trailer provides a rigid & strong structure that holds the kingpin, tires, landing gear, bed, and the different suspension (such as leaf spring, airbag booster) system.
How do you shipping the container trailer?
Normally it is using 40HQ container shipping (with the trailer tail cut off), and Bulk cargo Shipping 2 method.
By the way, container shipping is cheaper than bulk cargo shipping.

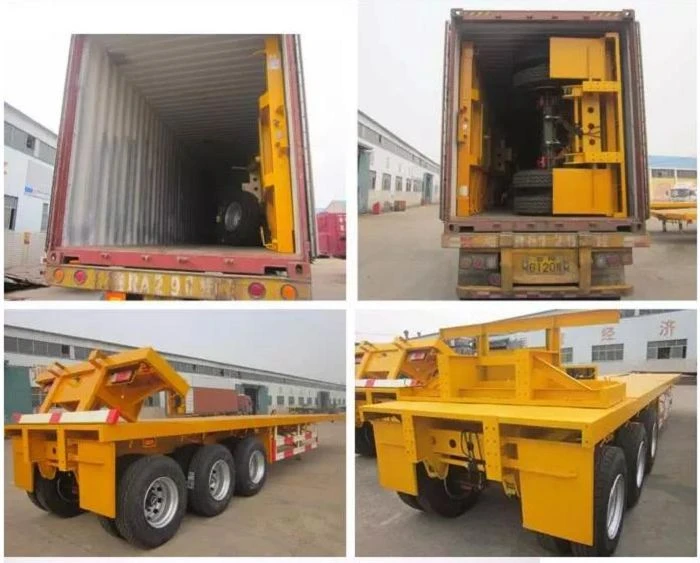

Container shipping show
Bulk cargo shipping show
You are always welcomed to visit our company and workshop !
