Watering Truck

Watering Truck

This truck is a special vehicle for efficient washing operations. Mainly use low-level water flow to flush road dust, achieving the effect of cleaning and cooling.

Product Introduction

Product introduction

Watering truck has the functions of transportation and water supply, can meet the needs of different users in different use environments. It is composed of truck chassis, water inlet and outlet system and tank body.

Its main purpose is to transport water & spray for greening, dust suppression on construction sites. The water tank is equipped with a low water level sensor alarm system, which can automatically alarm when the water level is low.


Product description

1

This truck is a special vehicle for efficient washing operations. Mainly use low-level water flow to flush road dust, achieving the effect of cleaning and cooling. The truck has a multi-functional operation mode and can be widely used in sanitation, municipal, and landscaping maintenance.

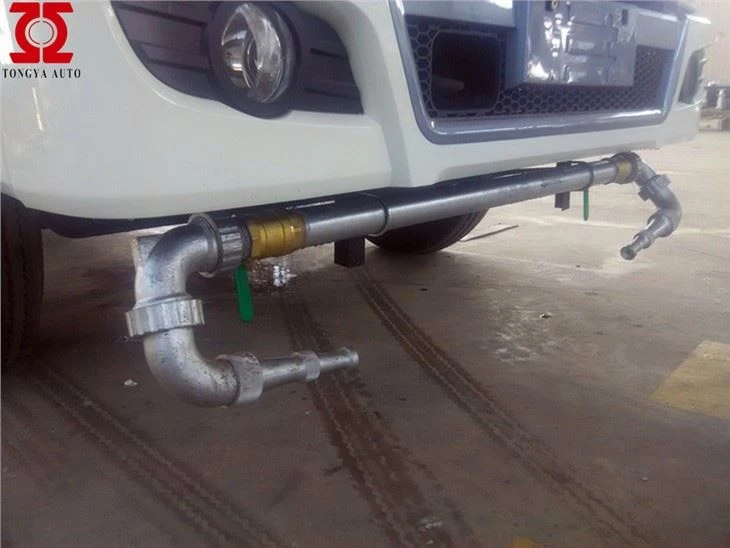

The self-priming two-stage centrifugal pump is adopted, and the water pump is driven by the power of the chassis engine; adopts the domestic first low-level flushing mode. The water gun located at the rear of the truck body is flexible to operate and has a wide range of working angles. It can be used to spray objects of various heights and can remove some sanitation dead spots that are not easy to clean. It also has an auxiliary firefighting function, and the water gun can be adjusted into a column or mist. Equipped with a left-side punching device and right-side punching device, the nozzle can be adjusted 360° left and right and 360° up and down. There are two nozzles on the rear bumper, which are used for daily sprinkling to increase humidity and reduce dust.


Product Specification

Specification

Chassis model

ZZ1257N4341W

Driving Type

Right Hand Driving

Dimension(L*W*H)

9900x2600x3350mm

Engine

336hp Diesel Euro 2

Transmission

HW19710+HW70(PTO), 10 forwards & 2 reverse, Manual

Front axle

HF9 9000kg drum axle

Rear axle

HC 16, 16000kg x 2

Steering system

ZF8118, Germany brand, hydraulic steering with power assistance

Tire

315/80R22.5

Tank Volume

20,000L

Equipments

Front duckbill type high pressure nozzle Rear sprinkler tip
     High-pressure water gun


2
