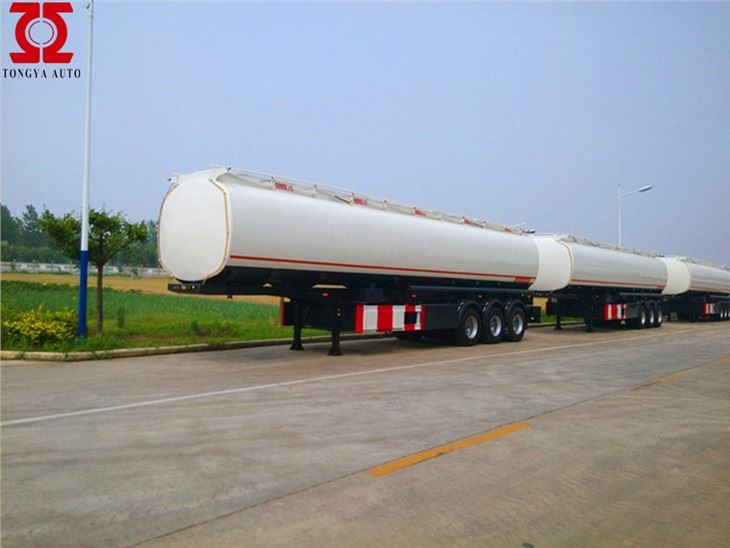

Fuel Tank Trailer
Tanker body welded by advanced large-scale special welding machines automatically.
Water filled test ensuring the tank's high sealed and avoiding the oil leaking.
We adopt famous brand parts for our trailers, ensuring good character.
Product Introduction
Product introduction
Fuel Tank Trailer is used for loading gasoline, diesel, palm oil, etc. Large products have large capacity, which can greatly improve the efficiency of transportation. Large welding machine is used for automatic welding to improve welding accuracy and firmness. Our products have been tested with water before leaving the factory to ensure excellent sealing and avoid leakage of internal media. All parts used are from well-known brands to ensure good quality. You can customize your trailer. We will design and manufacture it according to your specific requirements.
Features
The tank body of Fuel Tank Trailer is manufactured by advanced processing technology to obtain excellent airtightness. The chassis is stable and reliable to ensure the normal use of the product. Multiple tires are installed at the bottom to improve stability and support, and these tires are made of high-quality rubber, which will not be easily punctured or exploded due to air pressure problems. The outer surface is treated with waterproof and anti-oxidation treatment to improve the service life, while ensuring that the internal media will not be affected.
Product description
Product Specification
Specification | |
Model | fuel tank trailer |
Shape | elliptic |
Total Volume | 40,000 liters |
Tank Body Material | 5mm Q235 steel |
End Plate | 6mm Q235 steel |
Manhole Cover | Aluminum Alloy Manhole Cover |
Bottom Safety Valve | Aluminum Pneumatic Valve |

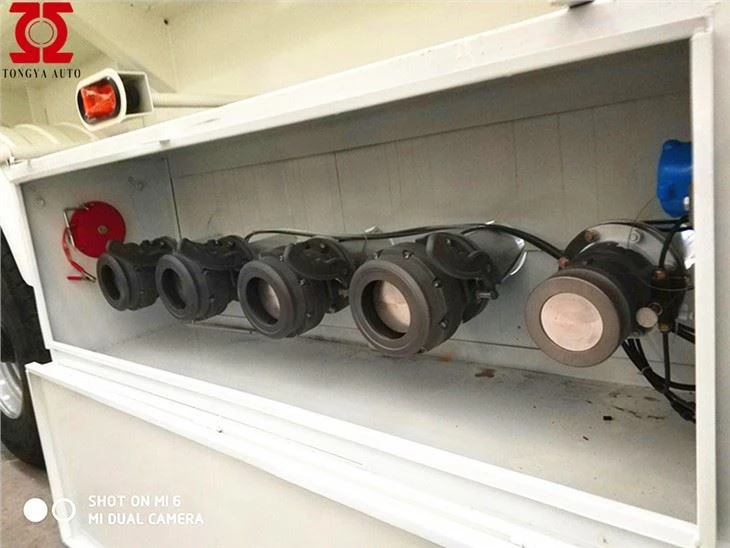

Discharge Valve | API Valve, Diameter 4 inch |
Compartments | 4 silos |
Main Beam | Welding design |
Axle | TONGYA brand |

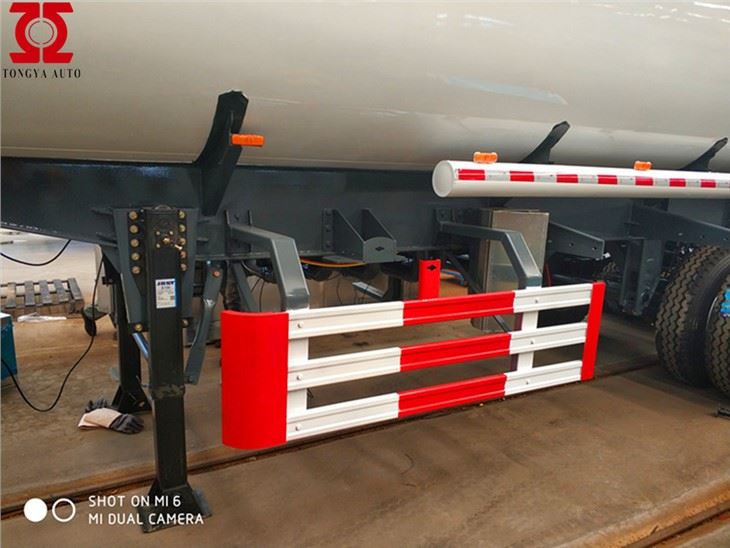

Landing Gear | JOST brand |
Suspension | Mechanical type |
Kingpin | JOST brand, 2.0 inch |
Tire | 315/80R22.5 |
Rim | 9.0-22.5 |
Pneumatic Brake | WABCO RE 6 relay valve; 2 pieces of 45L air tanks |
ABS | With |
Color | As per customers' requirement |
Shipping Term | By bulk cargo carrier or RORO |
