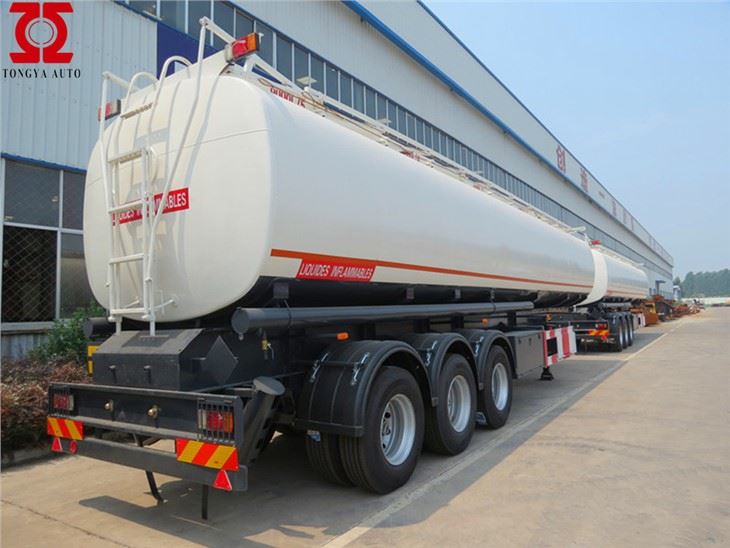

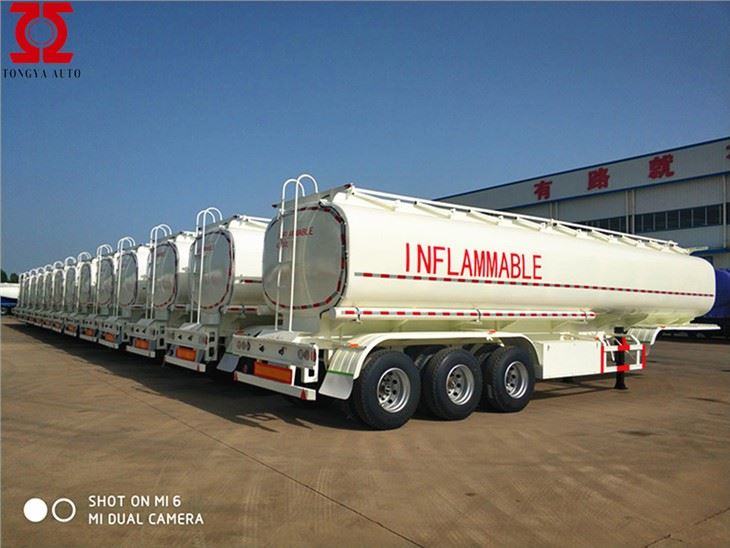

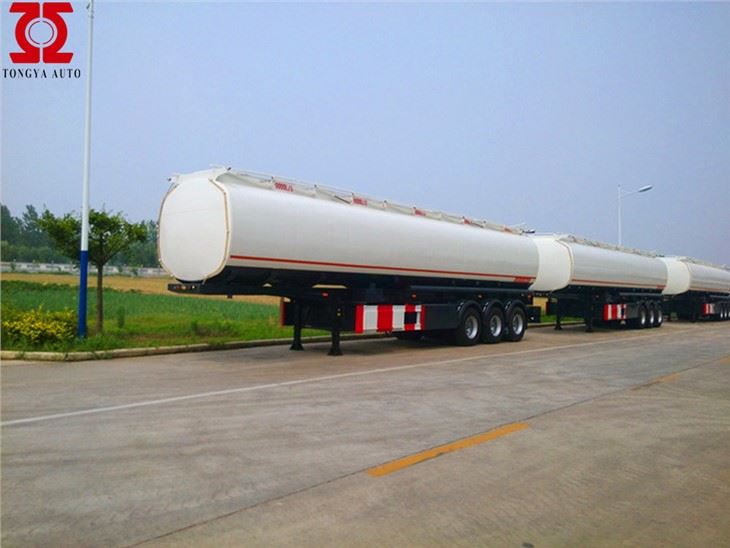

Oil Tanker Semi Trailer
video
Oil Tanker Semi Trailer

Oil Tanker Semi Trailer

Oil tanker semi trailer is an oil tanker that uses a traction head to connect the trailer part. Compared with the ordinary single tanker, the semi-trailer tanker can effectively improve the transportation efficiency.

Product Introduction

Product introduction

Oil tanker semi trailer is used for loading gasoline, diesel, palm oil, etc.

We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.

Tanker body welded by advanced large-scale special welding machines automatically.

Water filled test ensuring the tank's high sealed and avoiding the oil leaking.

We adopt famous brand parts for our trailers, ensuring good character.


Product description

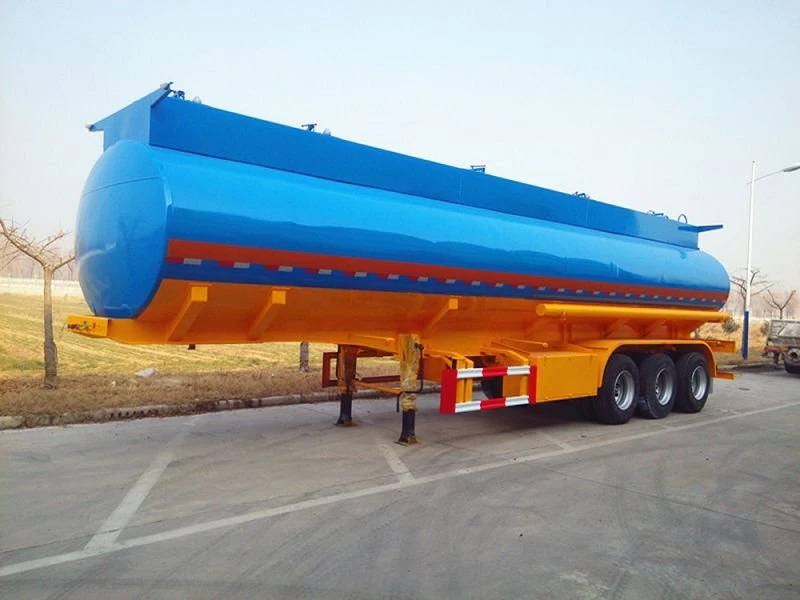

1(001)

Oil tanker semi trailer is an oil tanker that uses a traction head to connect the trailer part. Compared with the ordinary single tanker, the semi-trailer tanker can effectively improve the transportation efficiency. The semi-trailer tanker is divided into two parts, the tank part and the skeleton or driving part that supports the tank. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved. Use the parking time to do the following inspections of the tanker: touch the front and rear brake drums for overheating, check the tightening of tires and nuts, remove the inclusions in the tire pattern, check for oil leakage, water leakage, etc. If there is air leakage, check the condition of the leaf spring, whether the bolts of the drive shaft are loose, and check the appearance of the oil tank body and the pipe network system of the oil tanker.


Product Specification

Specification

Model

oil tanker semi trailer

Shape

elliptic

Total Volume

40,000 liters

Tank Body Material

5mm Q235 steel

End Plate

6mm Q235 steel

Manhole Cover

Aluminum Alloy Manhole Cover

Bottom Safety Valve

Aluminum Pneumatic Valve

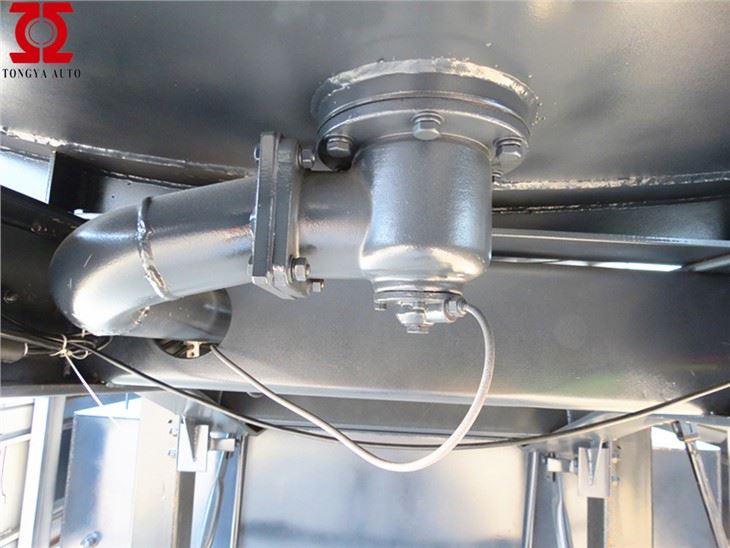

Discharge Valve

API Valve, Diameter 4 inch

Compartments

4 silos

Main Beam

Welding design

Axle

TONGYA brand

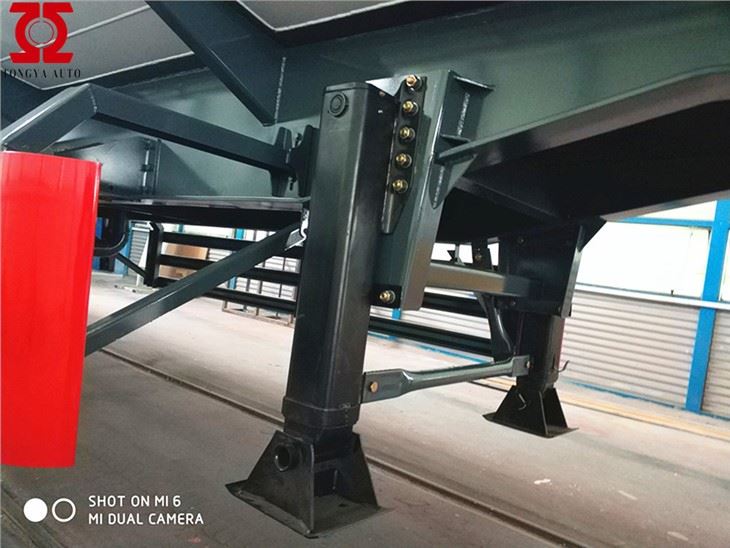

Landing Gear

FUWA brand

Suspension

Mechanical type

Kingpin

JOST brand, 2.0 inch

Tire

12R22.5

Rim

9.0-22.5

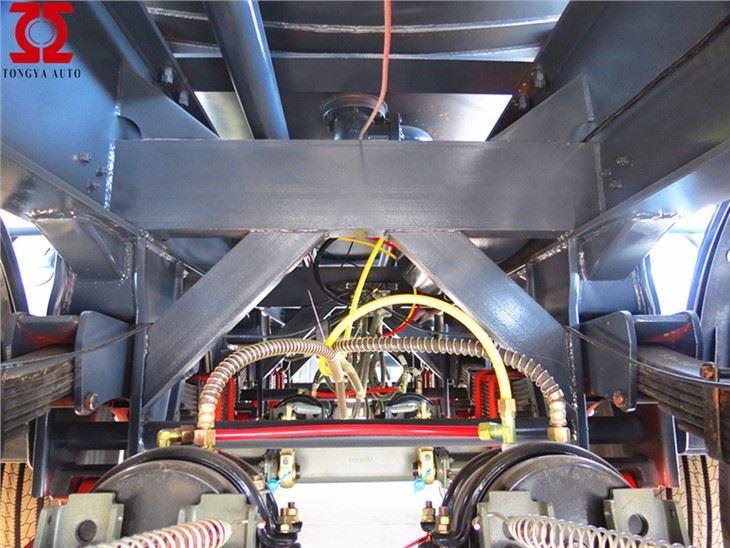

Pneumatic Brake

WABCO RE 6 relay valve; 2 pieces of 45L air tanks

ABS

Without

Color

As per customers' requirement

Shipping Term

By bulk cargo carrier or RORO

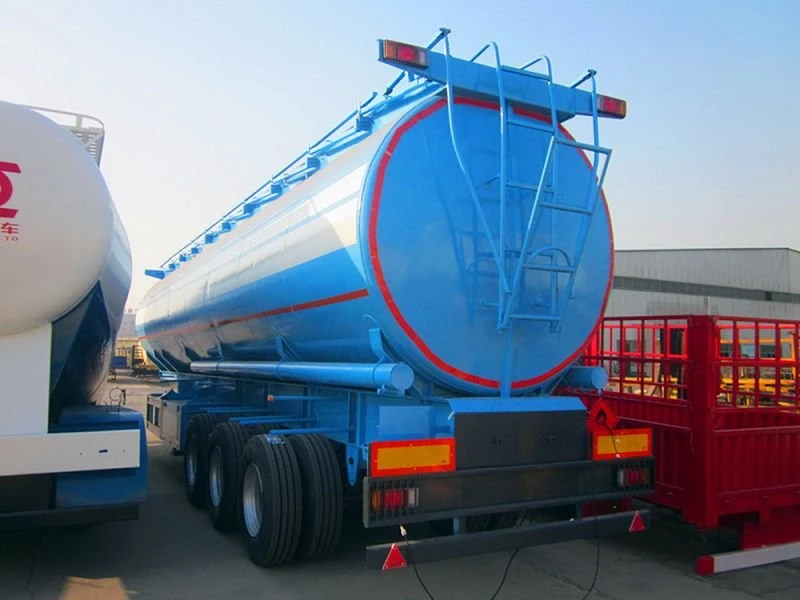

2(001)
