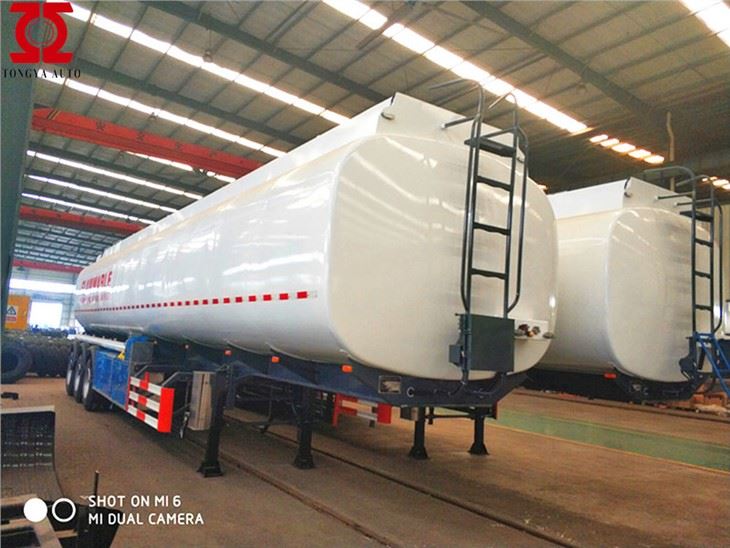

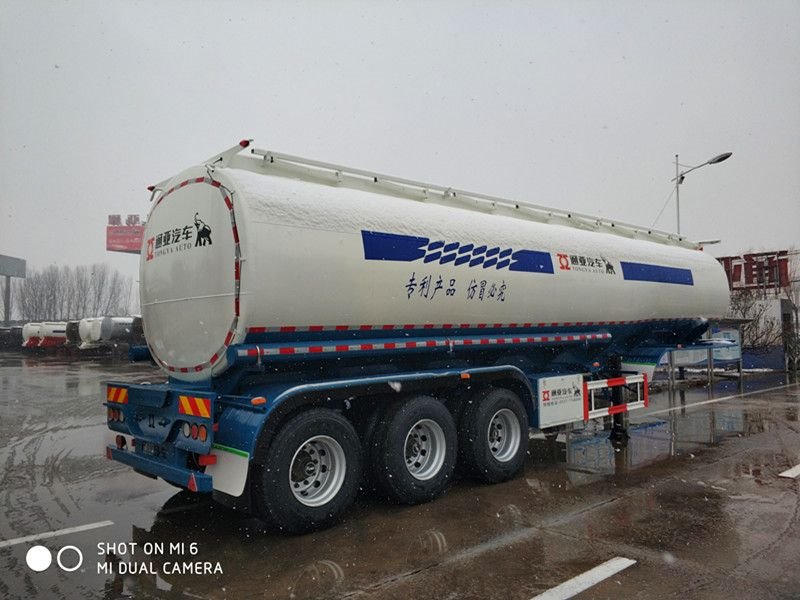

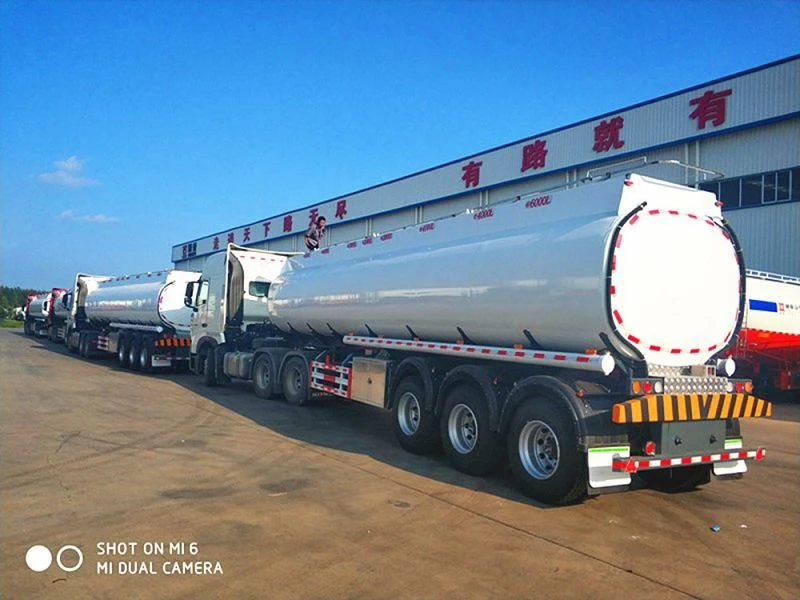

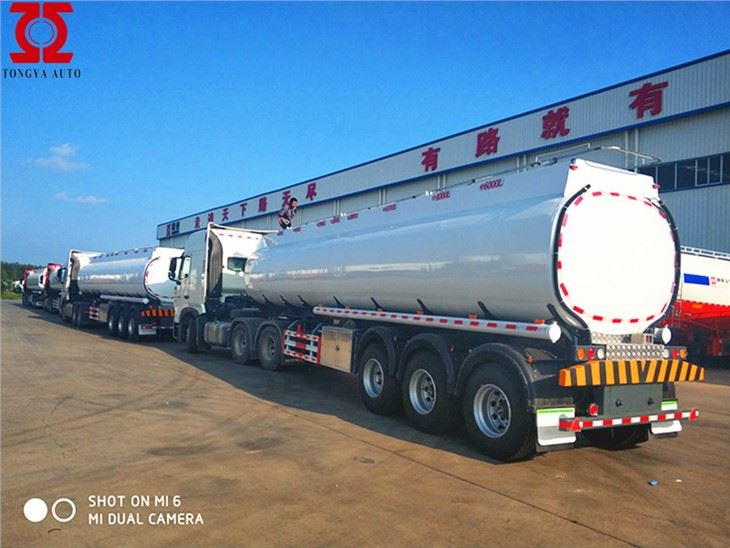

Oil Tanker Trailer
The tank body is made of 5mm high-quality carbon steel produced by the iron and steel company according to the national standard. It can also produce heating and thermal insulation series tanks.
Product Introduction
Product introduction
Oil tanker trailer is used for loading gasoline, diesel, palm oil, etc.
We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Tanker body welded by advanced large-scale special welding machines automatically.
Water filled test ensuring the tank's high sealed and avoiding the oil leaking.
We adopt famous brand parts for our trailers, ensuring good character.
Product description
The tank body is made of 5mm high-quality carbon steel produced by the iron and steel company according to the national standard. It can also produce heating and thermal insulation series tanks. Alcohol and chemical tankers are made of stainless steel. Various types of hydrochloric acid, sulfuric acid and lye tank trucks are made of plastic, with a thickness of 12mm - 22mm. There are multiple anti-wave baffles in the tank. The use of high-pressure gas leak detection makes the tank have the characteristics of high strength, stable center of gravity, and safe and stable vehicle transportation. Centrifugal pumps, gear pumps and stainless steel pumps can be selected according to the purpose of the tanker, which have the characteristics of large flow rate and fast suction speed. Single-counting and double-counting flow meters can be selected for the measurement of tank trucks, and a tax-controlled computer refueling machine can also be installed, and a 10-15m automatic retractable return reel can be installed, equipped with a refueling gun. Edible oil products can be measured with a computerized edible oil product meter.
Product Specification
| Specification | |
Model | oil tanker trailer |
Shape | elliptic |
Total Volume | 42,000 liters |
Tank Body Material | 5mm Q235 steel |
End Plate | 6mm Q235 steel |
Manhole Cover | Aluminum Alloy Manhole Cover |

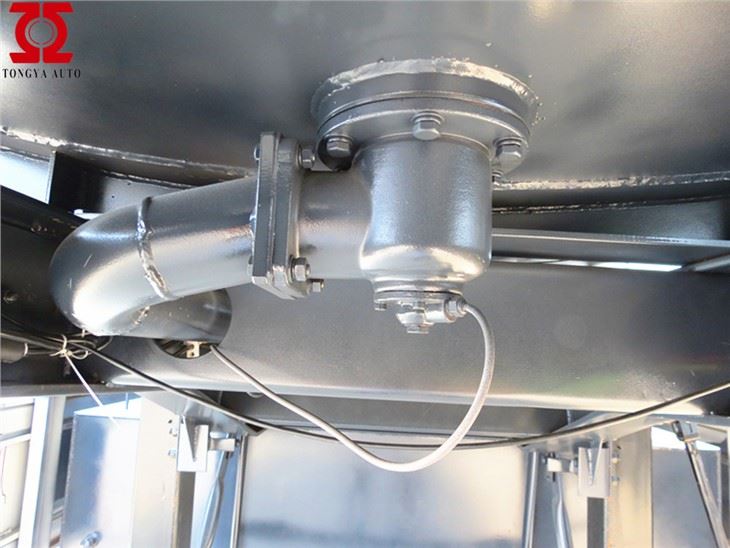

Bottom Safety Valve | Aluminum Pneumatic Valve |

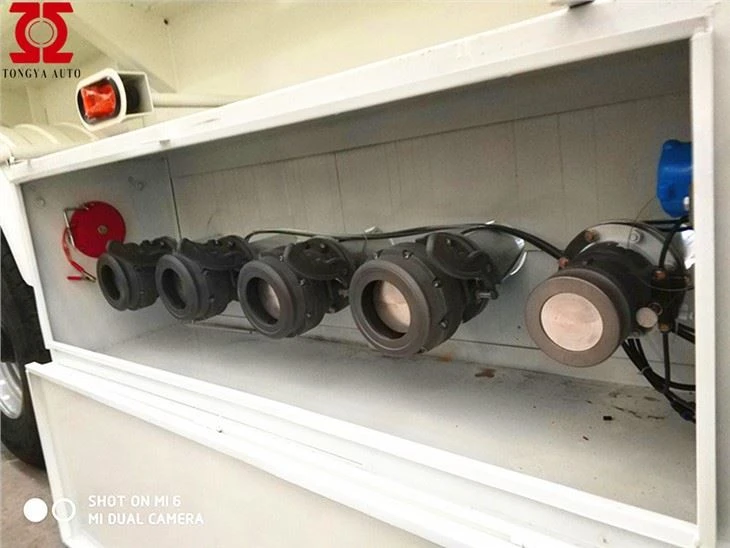

Discharge Valve | API Valve, Diameter 4 inch |
Compartments | 3 silos |
Main Beam | Welding design |
Axle | FUWA brand |

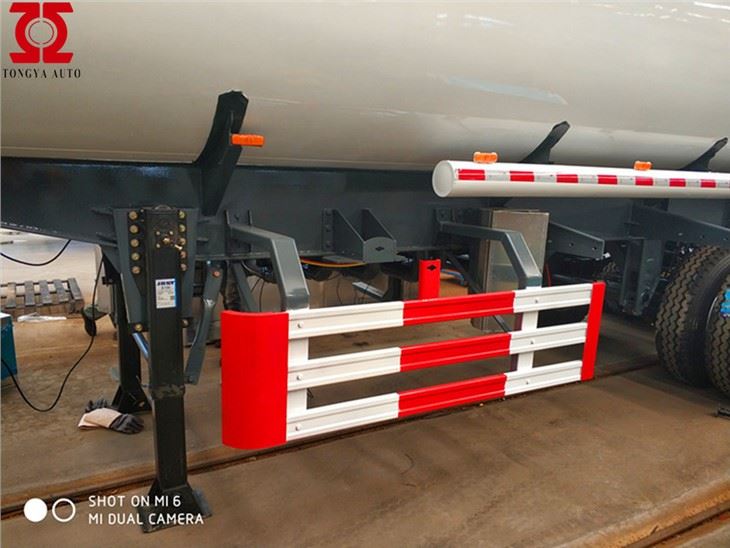

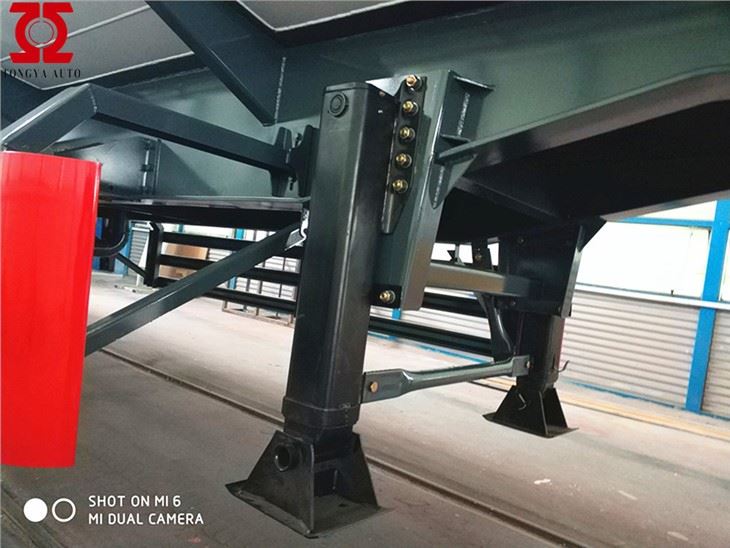

Landing Gear | JOST brand |
Suspension | Mechanical type |
Kingpin | JOST brand, 2.0 inch |
Tire | 1200R20 |
Rim | 8.5-20 |
Pneumatic Brake | WABCO RE 6 relay valve; 2 pieces of 45L air tanks |
ABS | With |
Color | As per customers' requirement |
Shipping Term | By bulk cargo carrier or RORO |
