Oil Tank Trailer

Oil Tank Trailer

We usually adopt shipping by bulk cargo, flat rack, container and RORO ship. We will arrange the most cost-effective transportation mode according to the quantity of products.

Product Introduction



Products Introduction







Oil tank trailer has the characteristics of no leakage, stable structure and beautiful appearance. It can be connected to the truck through a solid towing head to realize efficient transportation of various liquid materials. The interface size of API valve conforms to international standards and can be matched with the bottom loading system of major international brands. The tank body is automatically welded by a large special welding machine and has undergone strict leakage test, so it will not cause leakage of internal materials. We have selected high-quality steel to make the tank body obtain good corrosion resistance and impact resistance to ensure safe use.





Products  Features







1. This trailer has reasonable structural design and high-quality components, so it can provide excellent durability and low maintenance.

2. This tank car has a built-in breather valve and emergency exhaust function to ensure that accidents such as explosion will not occur.

3. The tank body is equipped with multiple anti-wave baffles to ensure the stability of the tank body during transportation.

4. By adding accessories, this trailer can achieve more functions to speed up the efficiency of loading and unloading.





Products Display

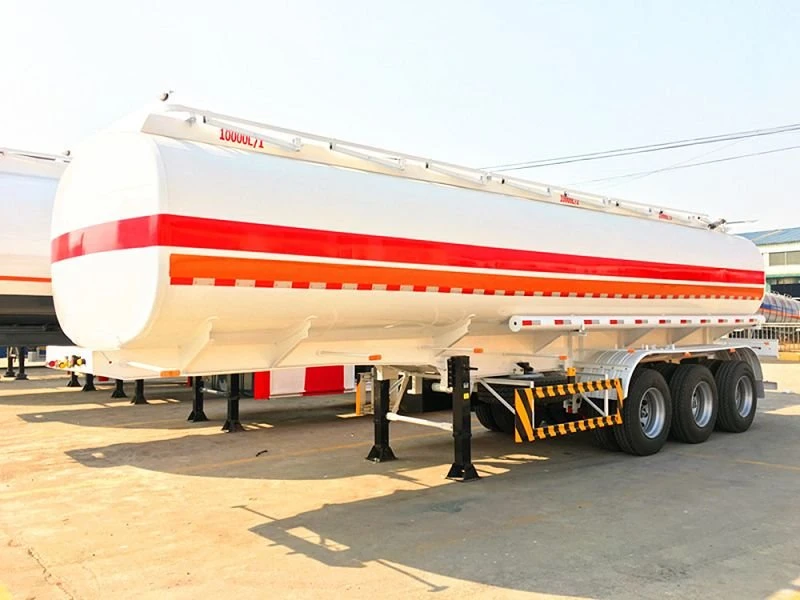

1(001)





Products Specification









Model

Oil Tank Trailer

Shape

elliptic

Total Volume

40,000 liters

Tank Body Material

5mm Q235 steel

End Plate

6mm Q235 steel

Manhole Cover

Aluminum Alloy Manhole Cover

Bottom Safety Valve

Aluminum Pneumatic Valve

Discharge Valve

API Valve, Diameter 4 inch

Compartments

4 silos

Main Beam

Welding design

Axle

TONGYA brand

Landing Gear

JOST brand

Suspension

Mechanical type

Kingpin

JOST brand, 3.5 inch

Tire

1200R20

Rim

8.5-20

Pneumatic Brake

WABCO RE 6 relay valve; 2 pieces of 45L air tanks

ABS

Without

Color

As per customers' requirement

Shipping Term

By bulk cargo carrier or RORO

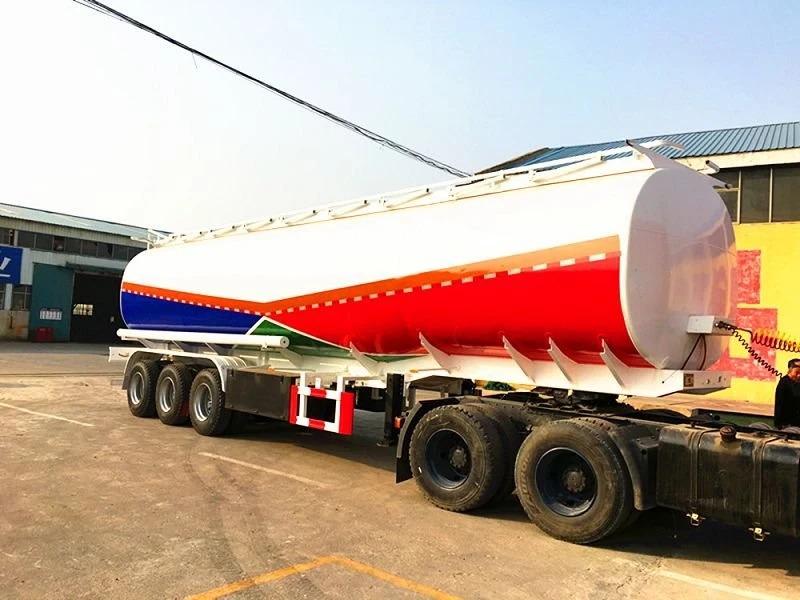

2(001)





About us







We usually adopt shipping by bulk cargo, flat rack, container and RORO ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close. Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity). Packing: Standard export packing, or customized packing as your request. Professional goods shipping forwarder. 12months for main parts (engine, axle, body and beam, etc. Technical Support by phone Whatsapp or email around the clock. Lifelong Parts Supports. Engineer available service oversea. Normal tanker maintenance can maintain the performance of the vehicle and prolong its service life. Maintenance, inspection, replacement and maintenance of the consumable parts of the oil truck, and at the same time, the phenomenon of the consumable parts is found during the maintenance and these phenomena explain what is wrong with the trailer.
