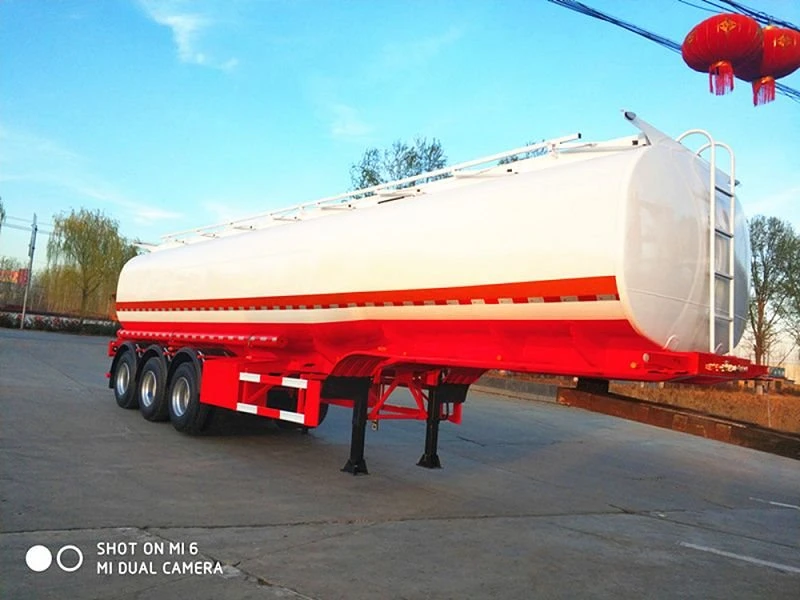

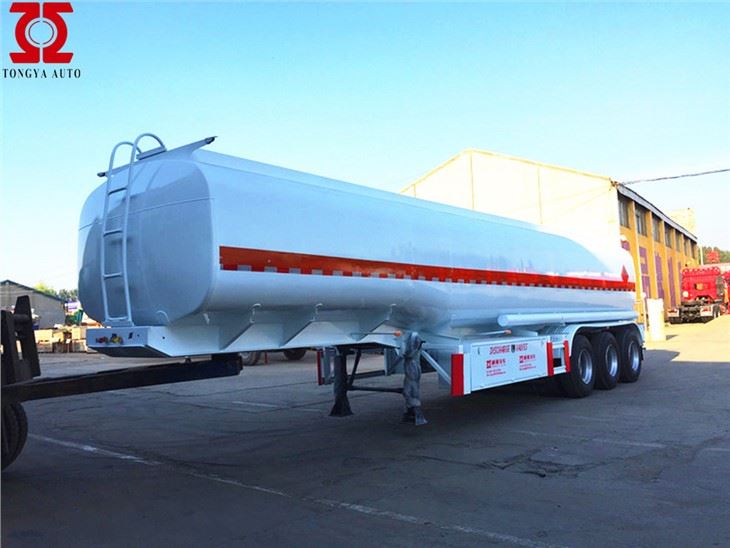

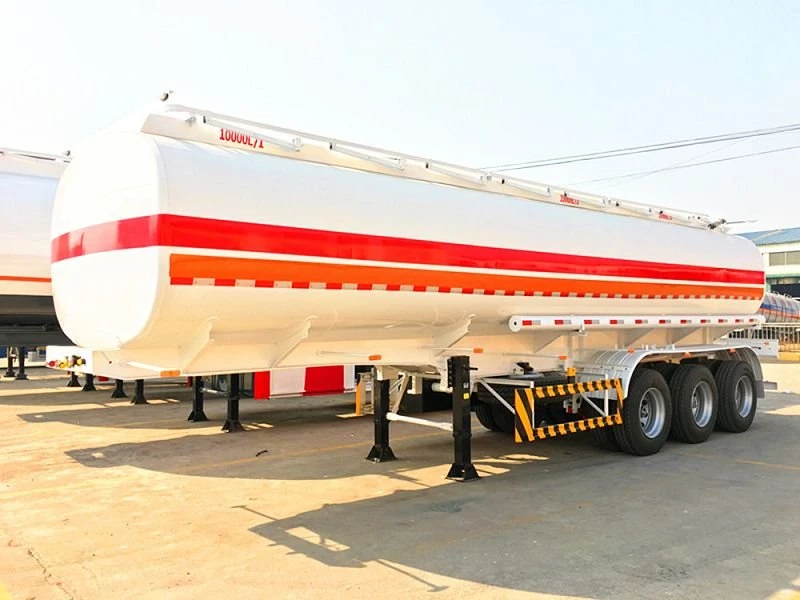

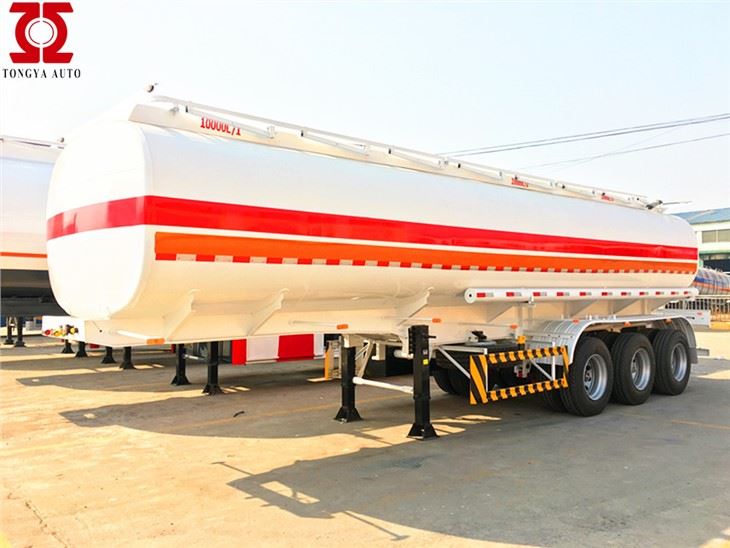

Oil Transport Trailer
We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product Introduction
Product introduction
Oil Transport Trailer is a good tool for transporting all kinds of liquid media, and can accommodate 10000L of goods, thus greatly improving the transportation efficiency. The inner and outer parts of the tank body are subject to corrosion resistance treatment, so they can adapt to most liquid goods. Excellent corrosion resistance makes the product not crack due to rust. At the same time, the product is less affected by temperature changes and will not deform due to heating. In order to improve safety, we thickened the tires and painted red warning lines on the outside surface of the tank.
Features
Oil Transport Trailer is used for loading gasoline, diesel, palm oil, etc. Large products have large capacity, which can greatly improve the efficiency of transportation. Multiple tires are installed at the bottom to improve stability and support, and these tires are made of high-quality rubber, which will not be easily punctured or exploded due to air pressure problems. Since the tank will be very heavy after being filled with oil, we thickened the bottom plate to increase its bearing capacity. If you have any questions, please feel free to consult us.
Product description
Product Specification
| Specification | |
Model | oil transport trailer |
Shape | elliptic |
Total Volume | 50,000 liters |
Tank Body Material | 5mm Q235 steel |
End Plate | 6mm Q235 steel |
Manhole Cover | Aluminum Alloy Manhole Cover |
Bottom Safety Valve | Aluminum Pneumatic Valve |
Discharge Valve | API Valve, Diameter 4 inch |
Compartments | 4 silos |

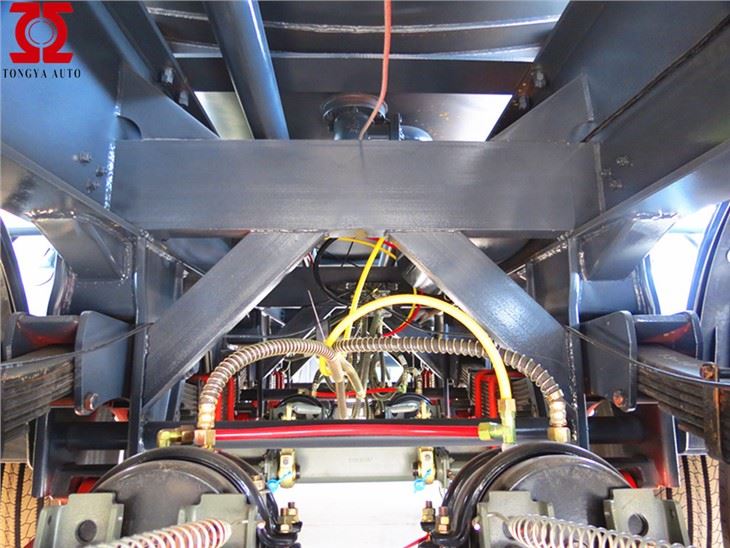

Main Beam | Welding design |
Axle | FUWA brand |

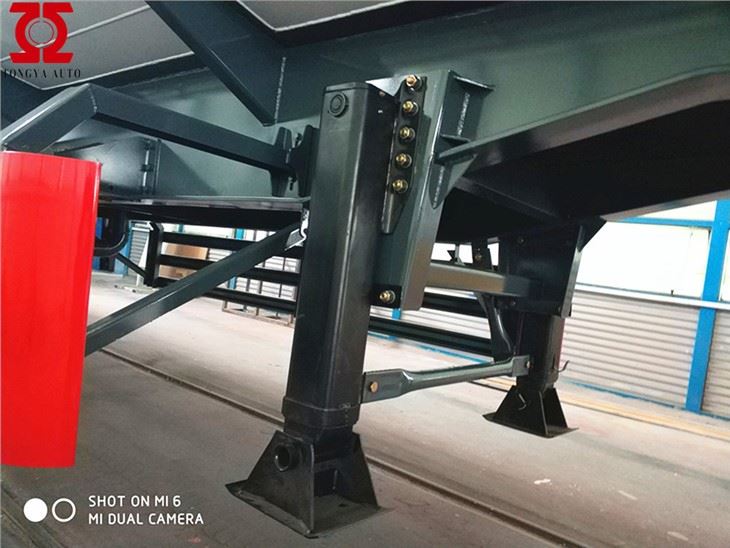

Landing Gear | JOST brand |
Suspension | Mechanical type |
Kingpin | JOST brand, 2.0 inch |
Tire | 315/80R22.5 |
Rim | 9.0-22.5 |
Pneumatic Brake | WABCO RE 6 relay valve; 2 pieces of 45L air tanks |
ABS | With |
Color | As per customers' requirement |
Shipping Term | By bulk cargo carrier or RORO |
