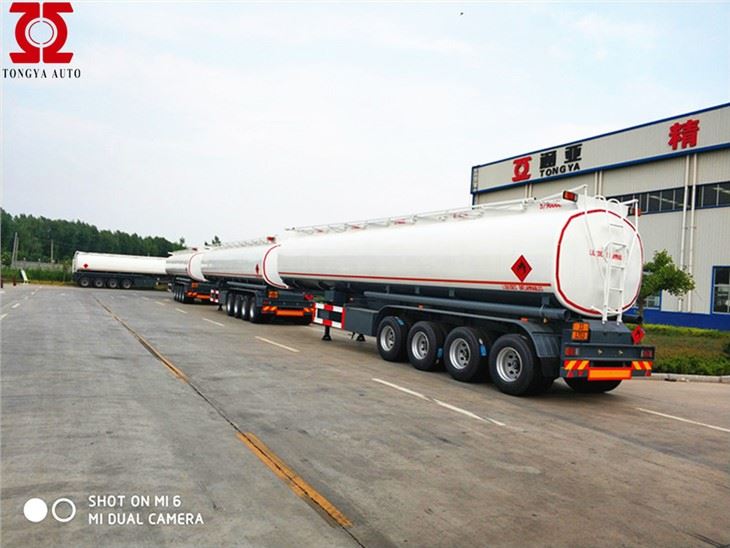

4 Axles Fuel Tanker Trailer

Our 4 axles fuel tanker trailer adopts advanced design concept. Our fuel tanker trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes.

Send Inquiry

Product Introduction

Product introduction

4 axles fuel tanker trailer is designed and manufactured with advanced concepts and first-class technology. Its tank body is made of Q345B carbon steel by automatic submerged arc welding, so it has not only high strength but also good corrosion resistance on the surface. We use parts of world famous brands, such as JOST and WABCO brake valves, to ensure the stability and durability of the base and other key parts. At the same time, this trailer has an explosion-proof large cover and an emergency shut-off valve at the bottom outlet of the tank, which is designed to ensure the safety of staff and reduce losses.

Features

1. According to customers' requirements, we can customize different volumes and compartments.

2. This tubing trailer conforms to international quality standards, and it has undergone water filling test to ensure high sealing.

3. The longitudinal welding process can effectively ensure the stability of the tank body and prolong its service life.

4. This tanker can not only increase the efficiency and stability of transportation, but also improve the safety.

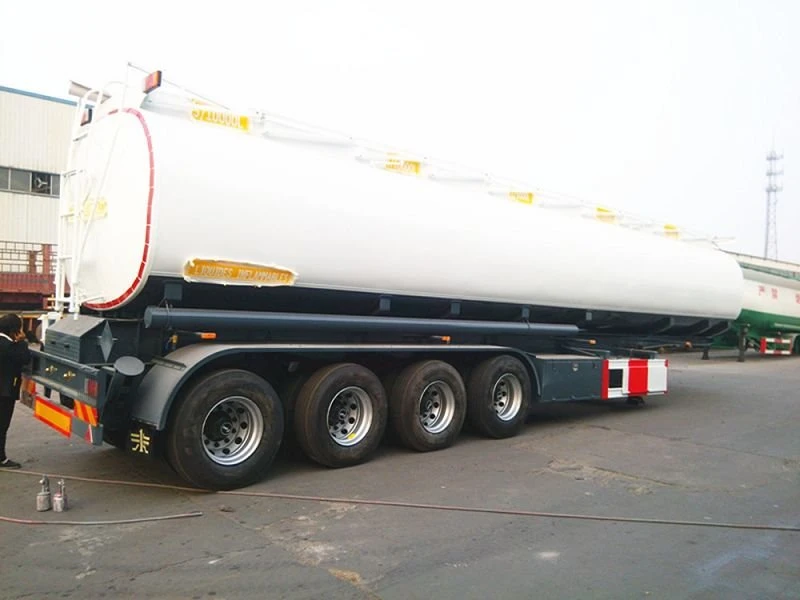

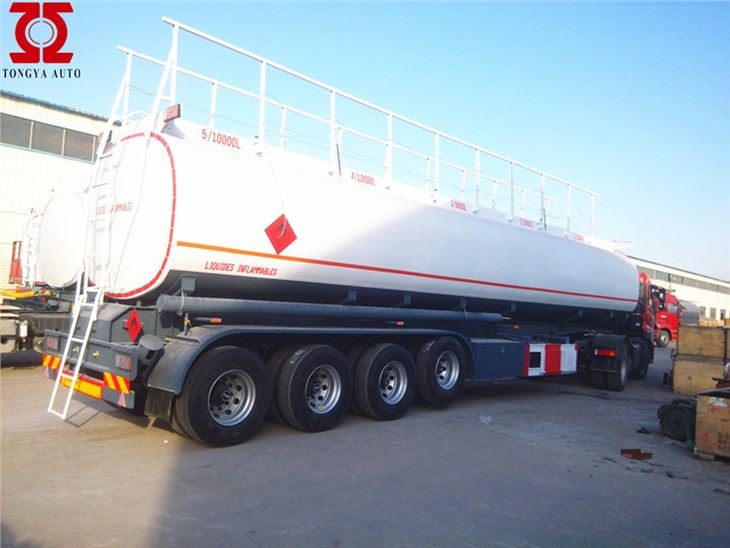

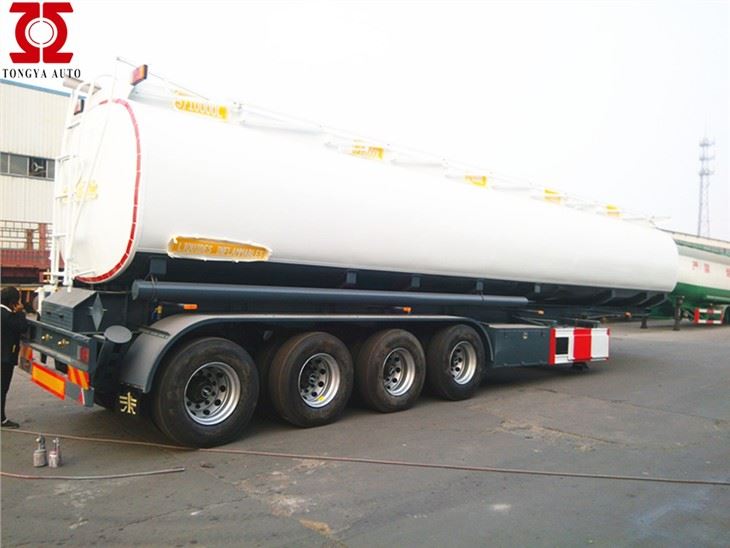

Product display

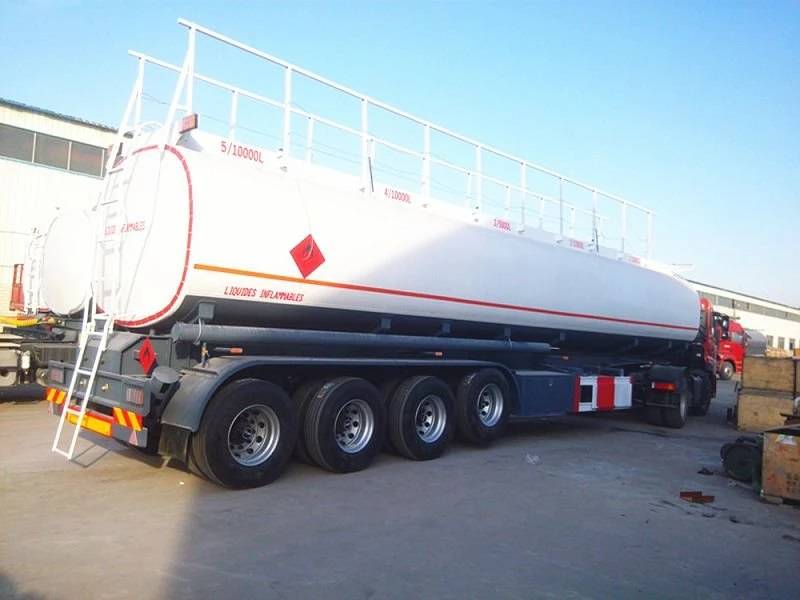

1(001)

Product Specification

Specification
Model	4 axles fuel tanker trailer
Shape	elliptic
Total Volume	45,000 liters
Tank Body Material	5mm Q235 steel
End Plate	6mm Q235 steel
Manhole Cover	Aluminum Alloy Manhole Cover
Bottom Safety Valve	Aluminum Pneumatic Valve

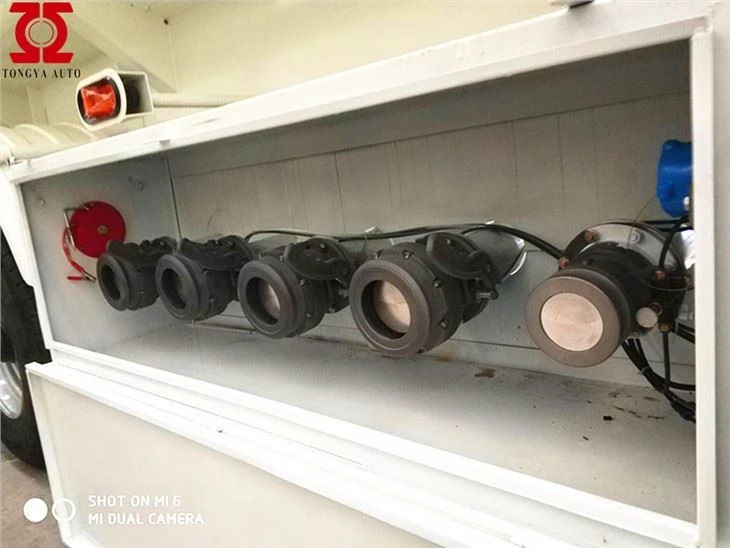

Discharge Valve	API Valve, Diameter 4 inch
Compartments	5 silos
Main Beam	connected by bolts and nuts
Axle	FUWA brand
Landing Gear	JOST brand
Suspension	Air type
Kingpin	JOST brand, 2.0 inch
Tire	315/80R22.5
Rim	9.0-22.5
Pneumatic Brake	WABCO RE 6 relay valve; 2 pieces of 45L air tanks
ABS	With
Color	As per customers' requirement
Shipping Term	By bulk cargo carrier or RORO
