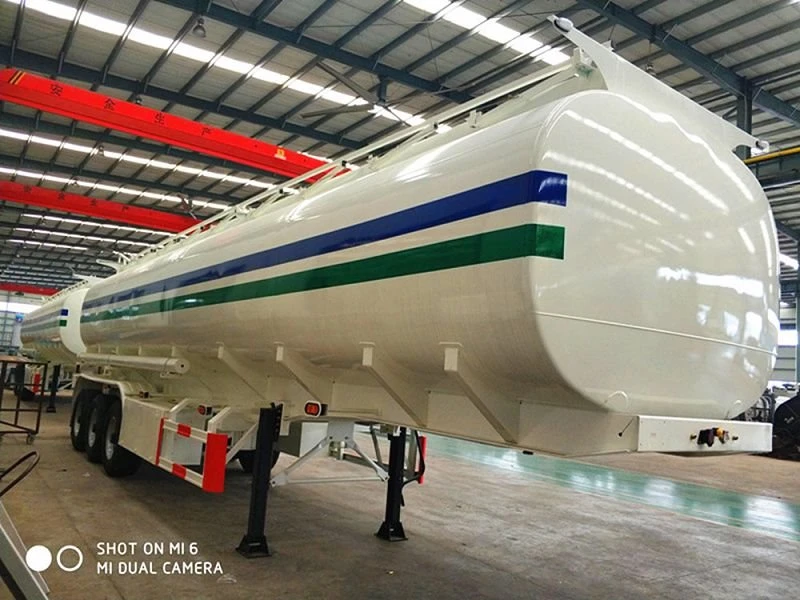

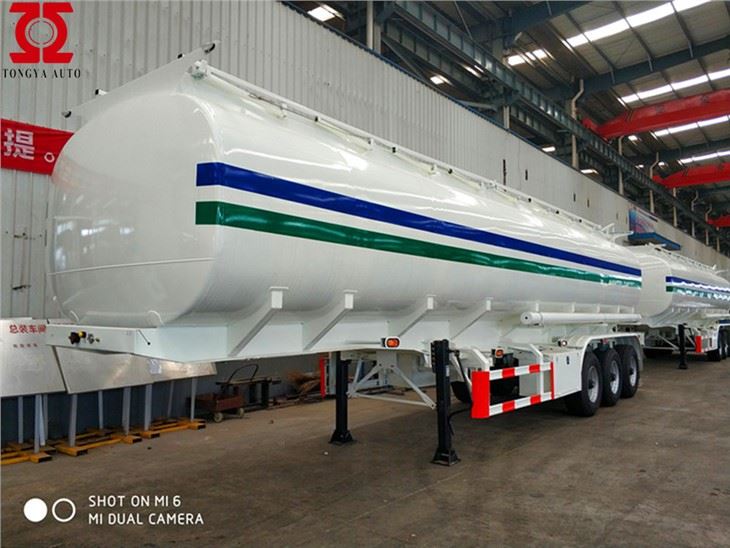

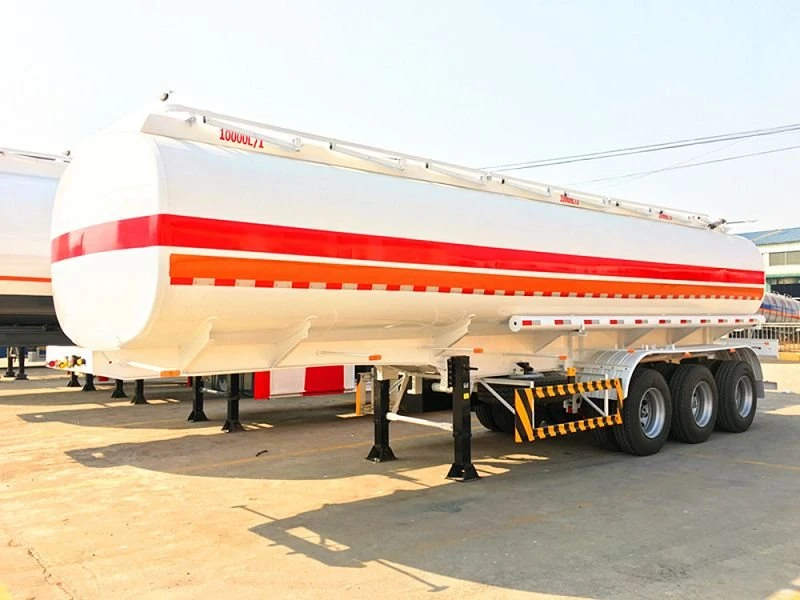

50000 Liters Fuel Tank Semi Trailer
50000 liters fuel tank semi trailer is used for loading gasoline, diesel, palm oil, etc.
We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product Introduction
Product introduction
50000 Liters Fuel Tank Semi Trailer is mainly used to store liquid media such as palm oil, diesel oil, gasoline, etc. The volume of 50000L greatly improves the efficiency of transportation. The stable chemical properties make the product not easy to be eroded by some weak corrosive substances. There is a vertical bar at the bottom to support the tank body during unloading, so as to facilitate the loading and unloading operation of relevant personnel. Multiple tires are used to disperse the weight of the tank body, making driving safer. And the tires are made of high-quality materials, which are very thick, so they will not be easily punctured.
Features
50000 Liters Fuel Tank Semi Trailer is used for loading gasoline, diesel, palm oil, etc. Large products have large capacity, which can greatly improve the efficiency of transportation. The tank body is manufactured by advanced processing technology to obtain excellent airtightness. The excellent materials give the tank excellent corrosion resistance, oxidation resistance and rust resistance, and prolong its service life. At the same time, the product is less affected by temperature changes and will not deform due to heating. We have always put customers first and are committed to providing you with high-quality services.
Product description
Product Specification
| Specification | |
Model | 50000 liters fuel tank semi trailer |
Shape | elliptic |
Total Volume | 50,000 liters |
Tank Body Material | 5mm Q235 steel |
End Plate | 6mm Q235 steel |
Manhole Cover | Aluminum Alloy Manhole Cover |

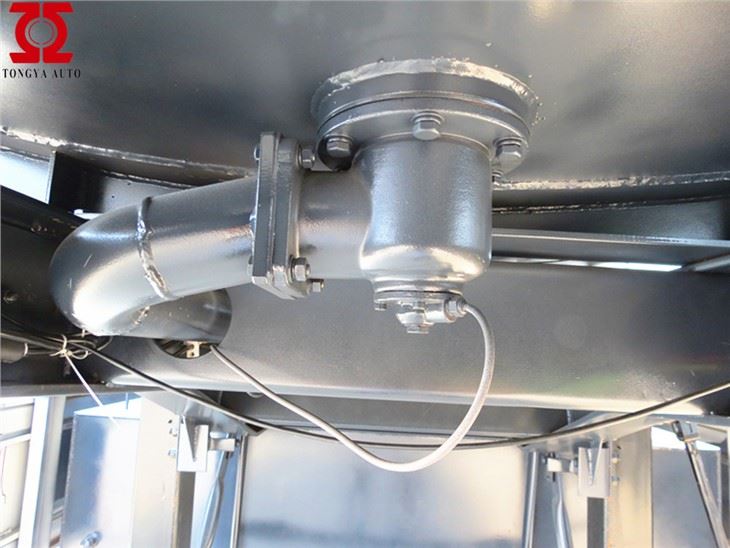

Bottom Safety Valve | Aluminum Pneumatic Valve |

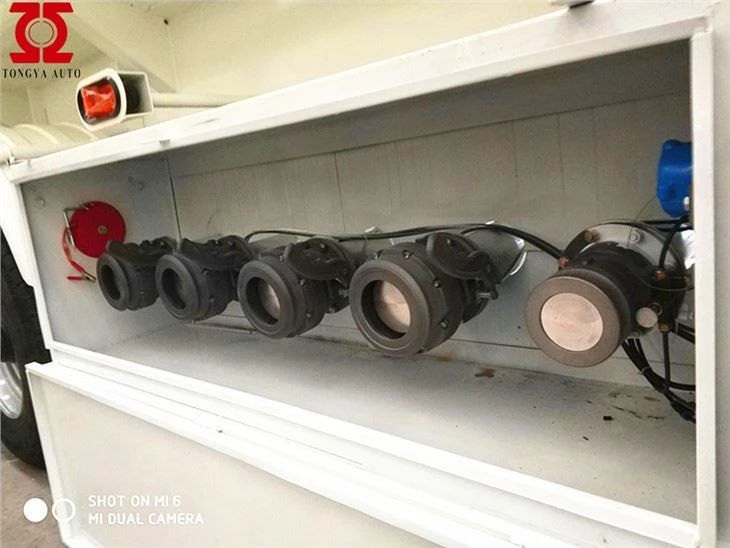

Discharge Valve | API Valve, Diameter 4 inch |
Compartments | 6 silos |
Main Beam | Welding design |
Axle | FUWA brand |

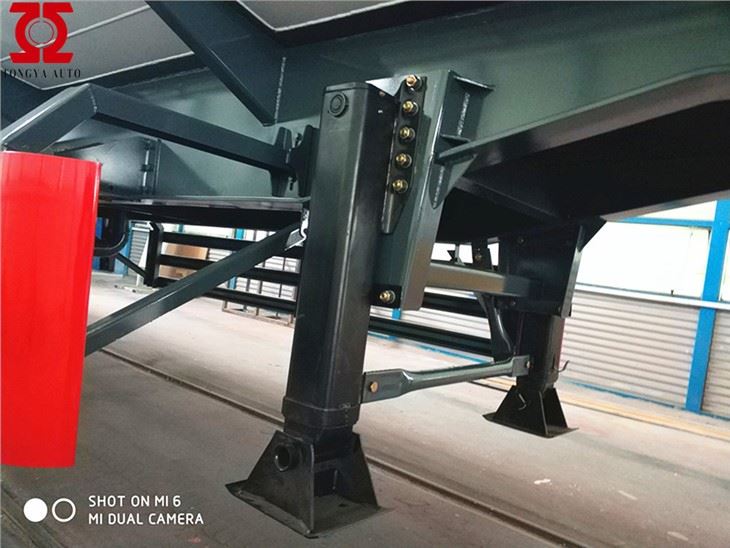

Landing Gear | JOST brand |
Suspension | Mechanical type |
Kingpin | JOST brand, 2.0 inch |
Tire | 315/80R22.5 |
Rim | 9.0-22.5 |
Pneumatic Brake | WABCO RE 6 relay valve; 2 pieces of 45L air tanks |
ABS | With |
Color | As per customers' requirement |
Shipping Term | By bulk cargo carrier or RORO |
