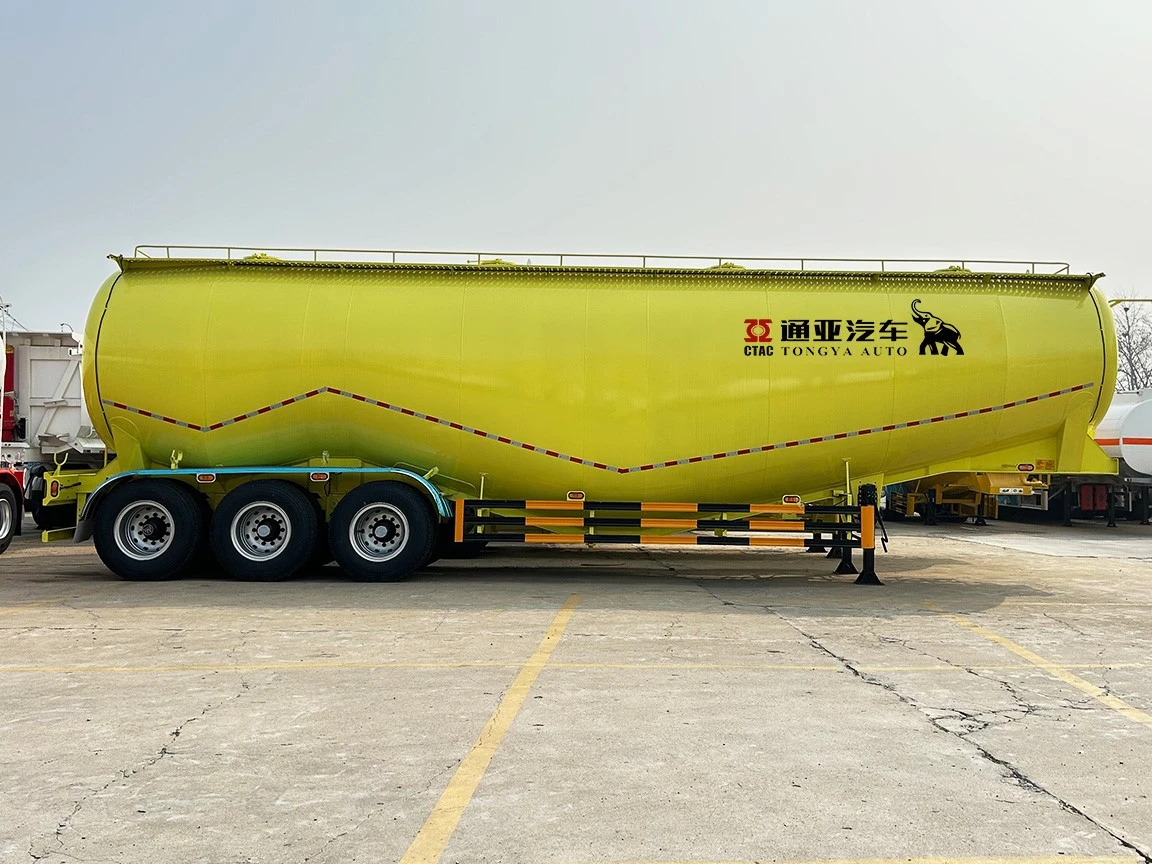

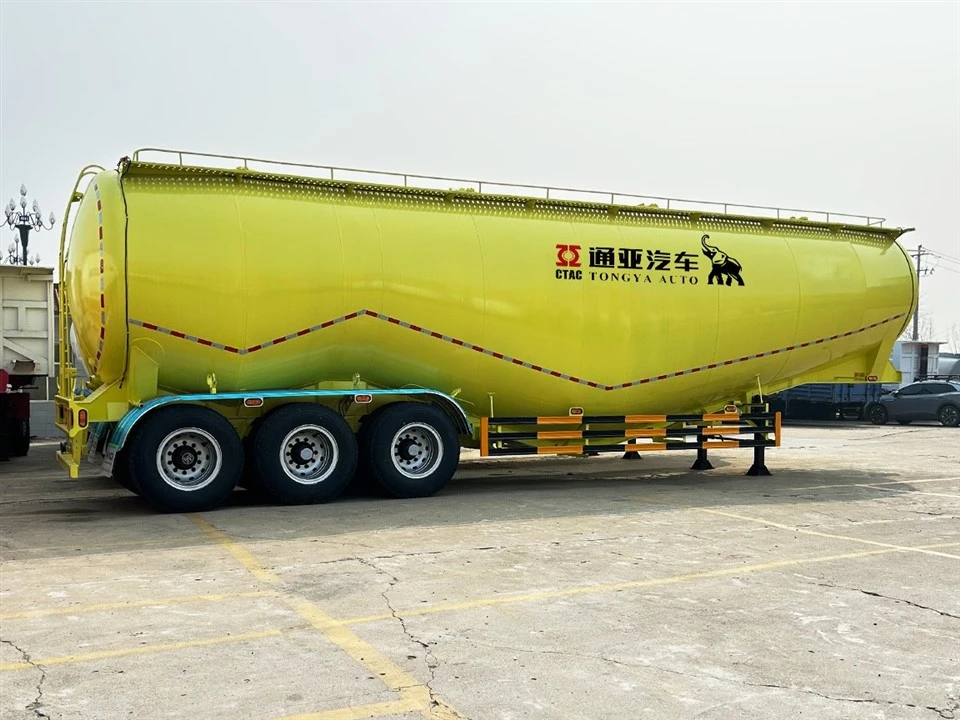

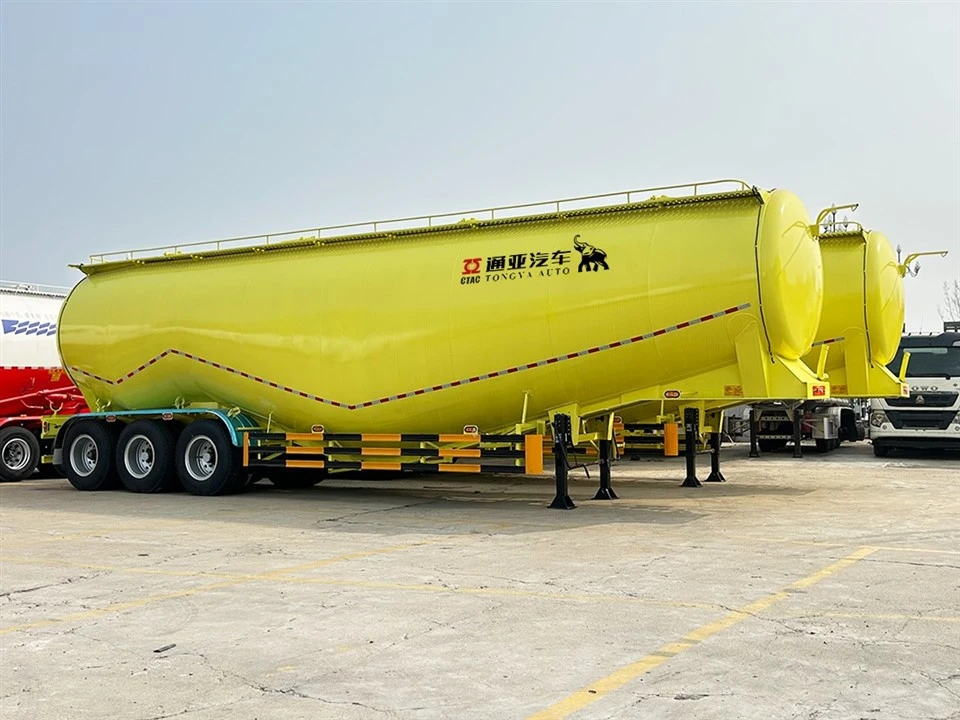

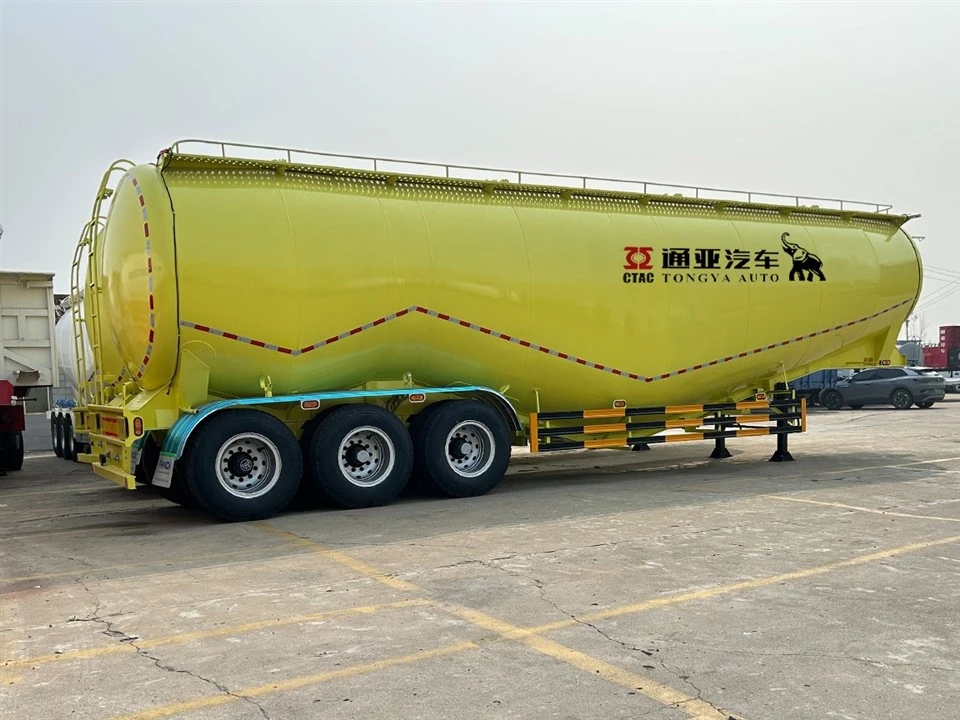

Powder Tanker Semi Trailer With 2 Compartment

Powder Tanker Semi Trailer With 2 Compartment

1, Customization is acceptable for tanker capacity and style; 2, China leading manufacturer since 1982, top 1 sales in China market since 2012; 3, Engine and compressor is available, PTO via truck tractor optional; 4, Fast discharging, <0.3% retention volume, 18 days delivery time.

Send Inquiry

Product Introduction

Products Description

Powder Tanker Semi Trailer Advantages:

1. Independent bin design: two bins can be loaded with different kinds of powder and granular materials or different customers, avoiding the problem of mixing and loading, improving the flexibility and efficiency of transportation, and meeting the transportation needs of multiple customers or multiple materials at the same time.
2. Fast unloading speed: generally equipped with efficient unloading devices, such as pneumatic unloading system, can quickly unload the powder and granular materials, shorten the loading and unloading time, and improve the turnover efficiency of the vehicle.

Products Specification

Weight:	Tare Weight	12T
	Loading capacity	60 T
	Total weight	72 T
Dimensions:	Dimension	13000×2500*3800mm (The final dimensions depend on the final design drawings)
Dimensions:	Tanker capacity	50m3 (50000L)
Tanker body:	Design/welding technology	Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes.
	Tanker body	The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel
	Bottom chassis	High strength Q345B steel
	Manhole:	Standard
	Discharge mouth	4 inch Discharge mouth
	Safety pressure valve	Standard
	Discharge hose	8m with Hose carries, the length is according to customer requirement
	Rear ladder and handrail	Standard
	Retention volume	<0.3%
OEM parts:	Axle	BPW
	King Pin	2.00 /3.5 inch, bolting king pin, JOST brand
	Suspension	Heavy duty suspension with equalizers, American design (high-strength type)
	Steel Spring	Four sets of 10pcs leaf spring, 13mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	12.00R24 Triangle brand
	Number of wheel	9pieces(including one spare wheel)
	Brake system	WABCO relay valve; Four double brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector.
	ABS system	(Can be choose freely,450 USD/set)
	Electrical:	One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.)
Miscellaneous:	Painting	color advised by client
	Marking	Standard
	Side Guard	Standard
	spare wheel carrier	Two set of heavy duty spare wheel carriers, including a riser.
	Tools box	One piece (1. 00. 50. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer

For more details,please contact us.We will offer you the best compectitive pricing.

Company Profile

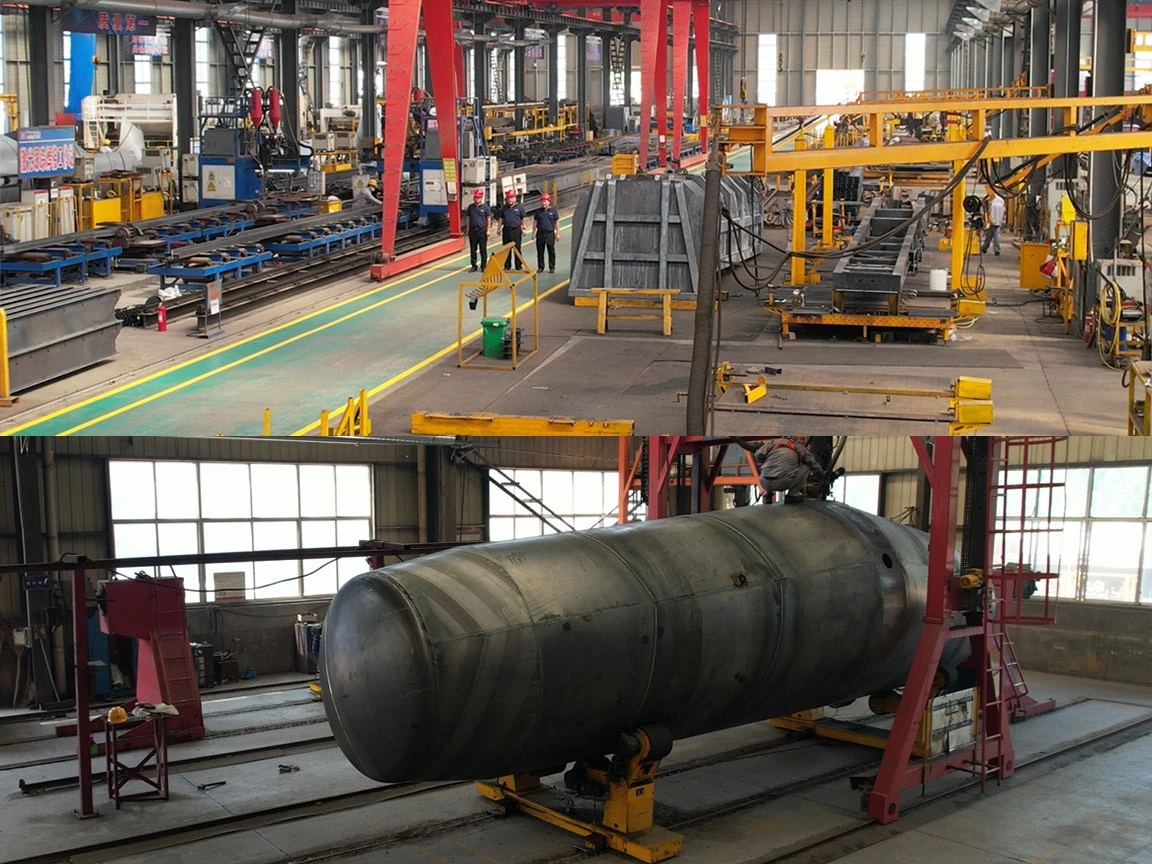

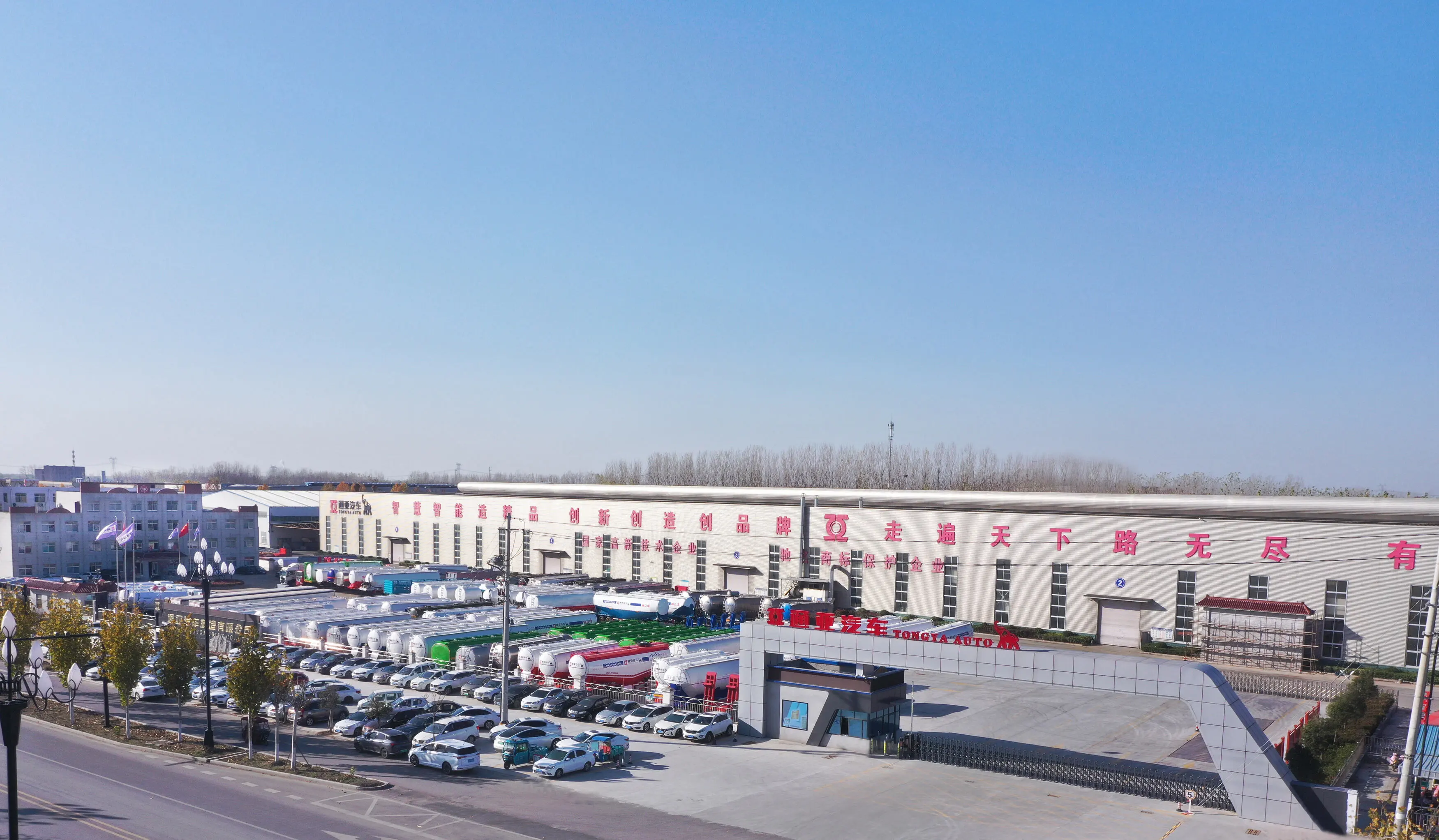

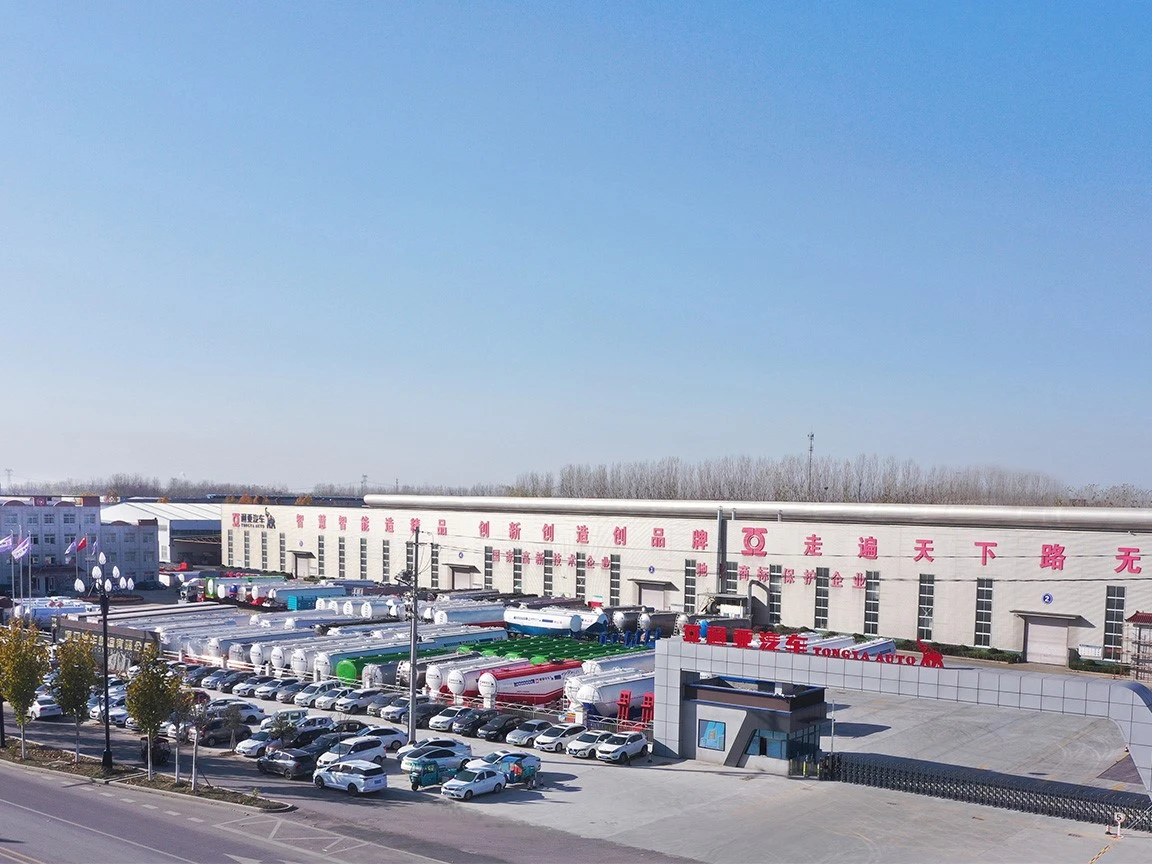

Our company covers an area of 400,000 square meters, total assets 7million US dollor. There are 156 persons with senior technical title. We have 1200 sets of first class fully automatic laser cutting machine, Automatic flat butt welding machine, Laser locating welding machine, fully automatic welding robot, tanker body inter and ourter automatic welding mechine, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and TEST EQUIPMENT which are advanced technology and Hi-Tech equipments. One hundred kinds of truck semi trailers and tanker trailers have passed our National Technical Appraisal and up to top class level in China, We have passed many certificates, such as ISO9001:2015, CCC, C.C.S, Saber, CQC, BV, SGS, CNCA, COTECNA, ECTN, SONCAP, OTTC etc.
