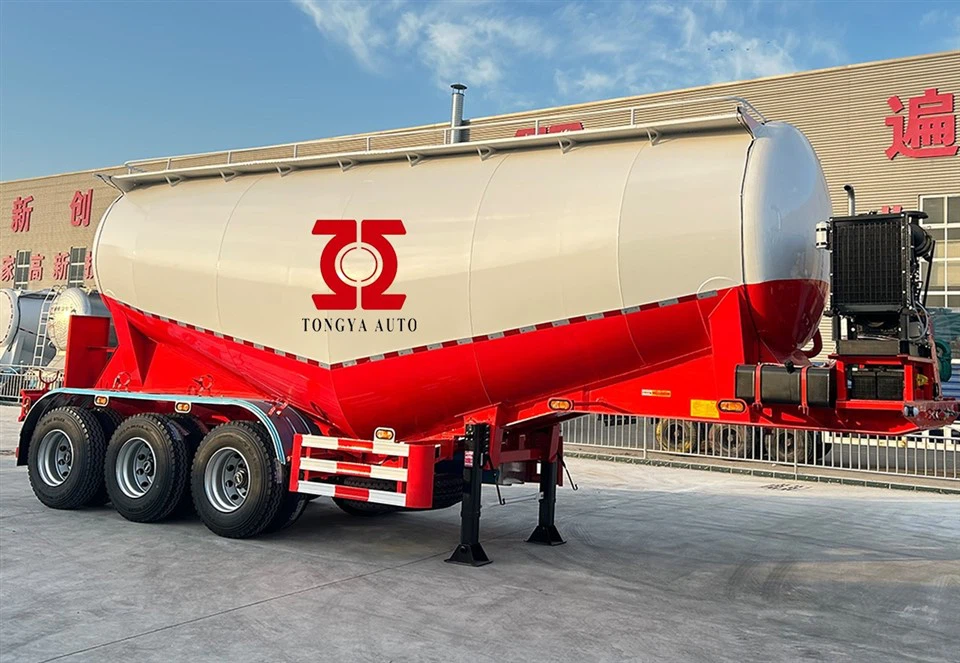

40T Bulk Cenemnt Tanker Semi Trailer With Diesel
As the manufacturer, customization is acceptable for style, tanker capacity capacity. we can design the cement trailer with engine and compressor, and if you want make the more lighter for the truck tractor plus tanker trailer, PTO via truck tractor is also available.
Product Introduction
Products Description
40T Bulk Cenemnt Tanker Semi Trailer Advantages:
1. High efficiency and energy saving: adopting advanced compression technology, it can complete the compression of a large amount of fly ash in a short time, reduce energy consumption and improve work efficiency.
2. Safe and reliable: Equipped with multiple safety protection devices to ensure that no accidents will occur during the compression process, ensuring the safety of the operator.
3. Strong durability: the use of high-quality materials and manufacturing process, to ensure that the compressor in the harsh working environment can also be a long time stable operation.
Products Specification
40T Bulk Cenemnt Tanker Semi Trailer Specification:
|
Weight: |
Tare Weight |
10T |
|
Loading capacity |
40 T |
|
|
Total weight |
50 T |
|
|
Dimensions: |
Dimension |
8500×2500*3700mm (The final dimensions depend on the final design drawings) |
|
Tanker capacity |
40m3 (30000L) |
|
|
Tanker body: |
Design/welding technology |
Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes. |
|
Tanker body |
The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel |
|
|
Bottom chassis |
High strength Q345B steel |
|
|
Tanker shape |
"V" shape |
|
|
Silo |
1 silo |
|
|
Manhole: |
2 pieces, (Diameter is 500mm) |
|
|
Discharge mouth |
4 inch Discharge mouth |
|
|
Safety pressure valve |
Standard |
|
|
Discharge hose |
8m with Hose carries, the length is according to customer requirement |
|
|
Air compressor |
12m3 double-cylinder air compressor, Bohai brand |
|
|
Engine |
Diesel Engine,Weichai 4102 engine |
|
|
Rear ladder and handrail |
Standard |
|
|
Retention volume |
<0.3% |
|
|
OEM parts:
|
Axle |
3* 13 tons capacity, FUWA brand (Chinese best brand) |
|
King Pin |
2.00 /3.5 inch, bolting king pin, JOST brand |
|
|
Suspension |
Heavy duty suspension with equalizers, American design (high-strength type) |
|
|
Steel Spring |
Six sets of 10pcs leaf spring, 16mm thickness, 90mm width |
|
|
Landing legs |
JOST brand, manual operation landing legs with sand shoe |
|
|
Tire specs |
12R22.5, or 315/80R22.5 Triangle brand |
|
|
Rim |
9.0-22.5 |
|
|
Number of wheel |
13 pieces(including one spare wheel) |
|
|
Brake system |
WABCO relay valve; Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. |
|
|
ABS system |
Without(Can be choose freely,450 USD/set) |
|
|
Electrical: |
One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) |
|
|
Miscellaneous: |
Painting |
color advised by client |
|
Marking |
Standard |
|
|
Side Guard |
Standard |
|
|
spare wheel carrier |
Two set of heavy duty spare wheel carriers, including a riser. |
|
|
Tools box |
One piece (1. 0*0. 5*0. 5m) (equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) |
|
|
Note: All the details not mentioned will design as the final confirmation with the customer |
||
Products Description
TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.
Start export business since 2006, with a complete,professional and efficient export team.
Our product export to more than 40 countries, such as Russia, East South Asia, Australia, South America, Africa, Central Asia and South Aisa .Each year we export common semi trailer more than 5000 units, tanker semi trailer 3500units.
