Container Chassis Trailer
3 axles container chassis trailer for transportation of 2 x 20ft or 1 x 40ft containers .
The frame can be flat plate style and skeleton style.Twist lock settings installed 12 pics, 8 pics, and 4pcs to satisfy the containers with different sizes for convince.
We also have the gooseneck container chassis trailer for sale,please share with us your requirements!
Product Introduction
Tare Weight | About 6.5tons |
Outer side dimension (mm) | 12450*2490*1400 |
Loading Capacity(Ton) | ≦45T(40FT) |
Axles | 3 axles square axle with 13 tons capacity,FUHUA brand(China best brand) |

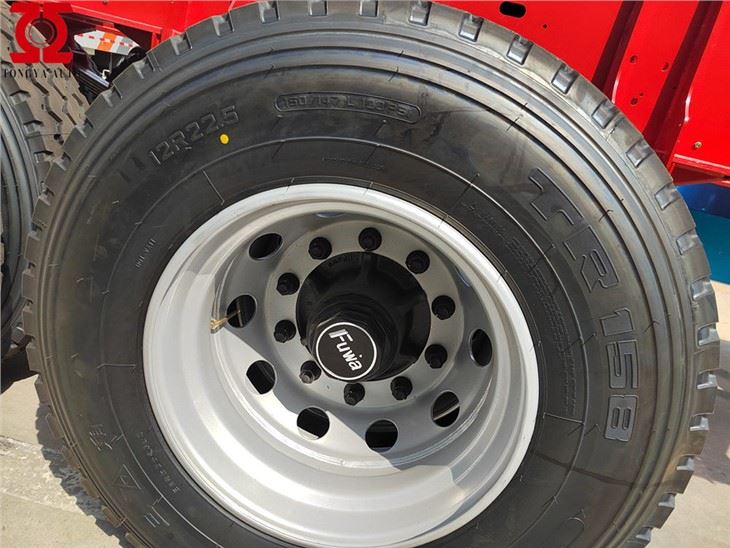

Tire | 12.00R22.5 or 315/80R22.5 |
Rim | 9.00-22.5 China Brand |

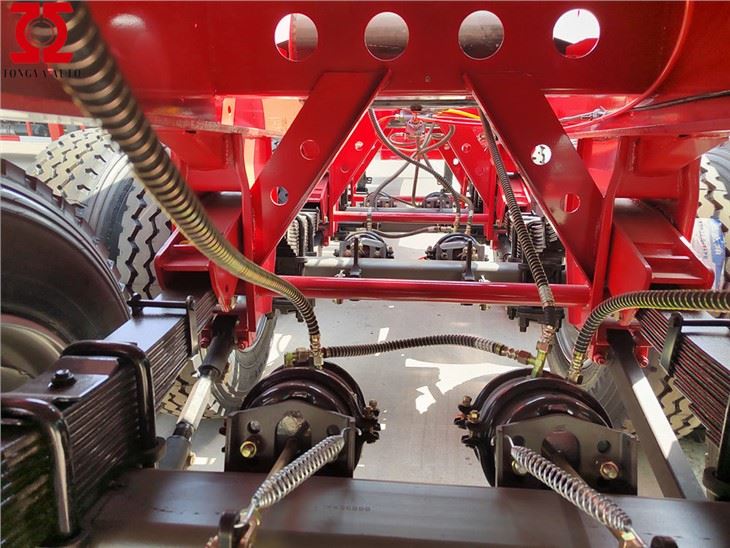

Suspension | Mechanical suspension |
Spring leaf | 90(W)mm*13(Thickness)mm 10 pcs leaf spring |
King pin | JOST brand 2.0 or 3.5 |

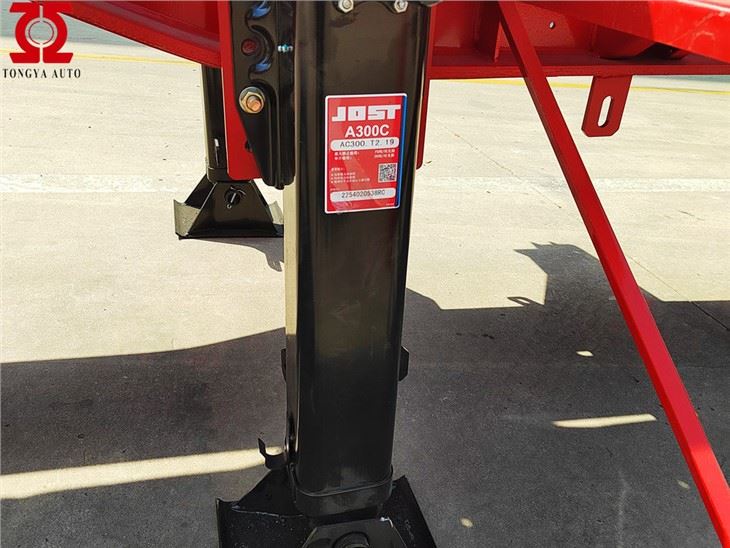

Landing legs | JOST brand E100 or China brand 28 Tons (Double speed) |
Main Beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel. |
Rear floor | 3 mm thickness chequer plate |
Brake chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist locks |
ABS | Optional |
Light | LED light |
Electrical | One unit of 27V 7-pin ISO 1185 socket |
Tool box | One piece, 1m*0.5m*0.5m (Size can be choose freely) |
Painting | Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client. |
Container chassis trailer as know as skeleton semi trailer,Generally used for transport ISO container in port, shipyard, routes, bridges, tunnels, transfer station, supporting transport logistics system.As a container chassis trailer manufacturer, We supply trailer options for carrying 20 foot and 40ft and other size containers. We use the largest of 12 pcs of EU standard container locks.
We always put inspection on container chassis trailer out of our factory.We know once those products with quality defects shipped to the destination,both of us are in great trouble.We should solve the problem,find the defect,and exchange the items easily,with the minimum cost if we inspect every outgoing shipment.
As a professional container chassis trailer supplier,we keep a very stable quality for years.Our container chassis trailer qualified products rate is 99.86% and we are constantly improving it,thanks to our professional production team and technical team.
And we are also the first company to export container chassis trailer in our local. Now our truck trailers are go through the whole East Aisa, Africa, South America, Middle East, Central Asia, Russia and Oceania area and get a good reputation.Our boss Mr. Yang attaches great importance to the research and development of new products. We have a research and development team of 40 people. Also attaches great importance to the production schedule and product quality, then he purchased the laser cutting machines and robots. Our company have passed various certificates, such as I S O 9 0 0 1, CCC, Famous Trademark of China, Taishan Quality Certificate.
Welcome to visit our company at any time.
