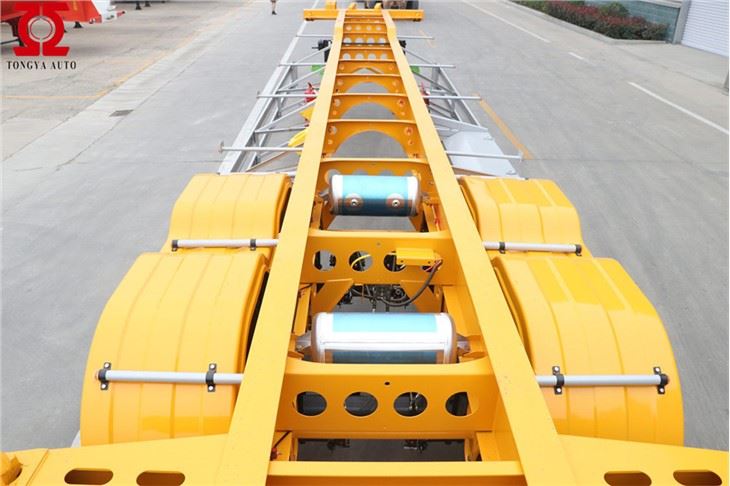

Skeletal Semi Trailer
Skeletal semi trailer is our star product in our factory,It has cheap price and high quality.
This skeletal semi trailer have passed many certificates,such as ISO9001:2008,CCC,CQC,BV SGS,CNCA,COTENCNA,ECTN,SONCAP ect.
We make sure that skeletal semi trailer can meet load requirements on different kind of roads and has a long service life.
Product Introduction
Products Description
Lightweight design: High-strength steel and optimized structural design are used to minimize deadweight and improve fuel economy while ensuring load-bearing capacity.
High-strength load-bearing: The beam is made of high-strength steel and has undergone strict process treatment to ensure that it can withstand the test of heavy loads and complex road conditions.
Multi-purpose adaptation: It can be equipped with containers, warehouse fences, flatbeds and other upper parts according to different needs to realize the transportation of various goods.
Safe and reliable: Equipped with safety devices such as ABS anti-lock braking system, air suspension, LED lighting system, etc. to ensure driving safety.
Convenient maintenance: Modular design, strong versatility of parts, convenient and quick maintenance.
Products Property
|
Tare Weight |
About 6.5tons |
|
Outer side dimension (mm) |
12450*2490*1400 |
|
Loading Capacity(Ton) |
≦35T(40FT) |
|
Axles |
2 axles square axle with 13 tons capacity,FUHUA brand(China best brand) |
|
Tire |
12.00R22.5 or 315/80R22.5 |
|
Rim |
9.00-22.5 China Brand |
|
Suspension |
Heavy duty tri-axle with 13 tons capacity,FUHUA brand |
|
Spring leaf |
90(W)mm*13(Thickness)mm 10 pcs leaf spring |
|

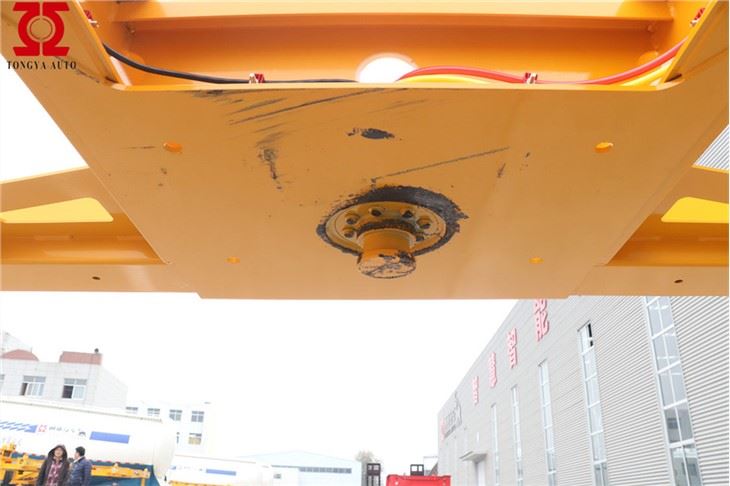

King pin |
JOST brand 2.0 or 3.5 |
|
Landing legs |
JOST brand E100 or China brand 28 Tons (Double speed) |
|
Main Beam |
Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel. |
|
Brake chamber |
WABCO relay valve |
|
Twist Locks |
12 units ISO twist locks |
|
ABS |
Optional |
|
Light |
LED light |
|
Voltage |
24V |
|
Electrical |

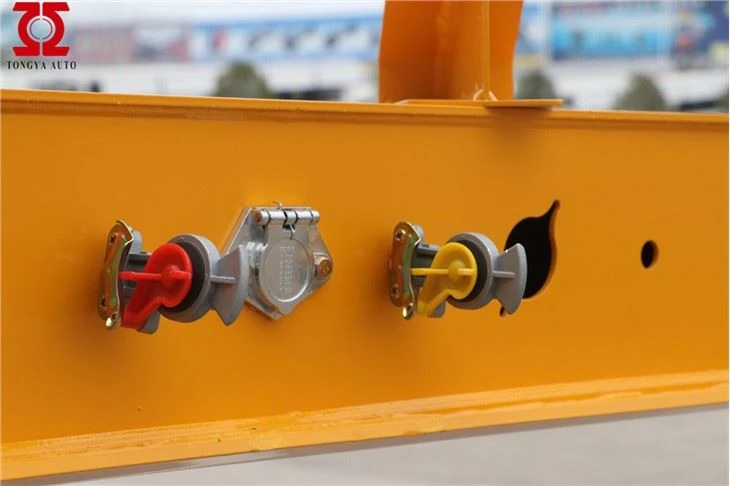

One unit of 27V 7-pin ISO 1185 socket |
|
Tool box |
One piece, 1m*0.5m*0.5m (Size can be choose freely) |
|
Painting |
Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client. |
Products Highlights
Cheap price and high quality tri-axle 20ft 40ft skeletal semi trailer for sale.Tongya skeletal semi trailer can satisfy the concentrated force, the anti bump and the distortion resistance.We make sure that skeletal semi trailer can meet load requirements on different kind of roads and has a long service life.Customize the skeletal semi trailer according to your requirements.
Tongya company covers an area of 730,000 square meters,total assets 460 million RMB.There are 128 persons with senior technical title.We have first class numerical control cutting machine,automatic welding machine.100 kinds of truck semi trailers and tanker trailers have passed our National Technical Appraisal and up to top class leave in China.This skeletal semi trailer have passed many certificates,such as ISO9001:2008,CCC,CQC,BV SGS,CNCA,COTENCNA,ECTN,SONCAP ect.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods. We believe that only by delivering you the solution and solving the problem,we can make our profit!We look forward to mutual benefit cooperation in the future with you!!
