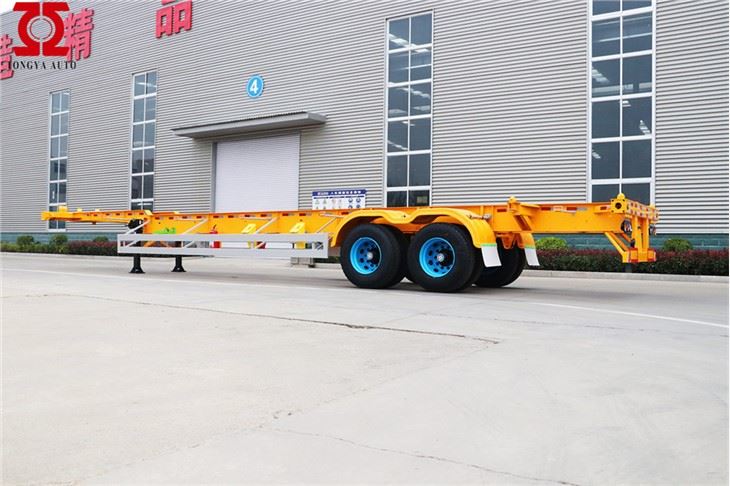

Gooseneck Container Trailer
Gooseneck container trailer is a special skeleton semi trailer,the height is lower than straight type.
The gooseneck container trailer has high-strength and strong stiffness features.Loading capacity for the 3 axles container trailer about 60T.
If you have any special specifications ,we also can according to your requirements to make this trailer.
Product Introduction
Tare Weight | About 6.5tons |
Outer side dimension (mm) | 12450*2490*1400 |
Loading Capacity(Ton) | ≦35T(40FT) |
Axles | 2 axles square axle with 13 tons capacity,FUHUA brand(China best brand) |

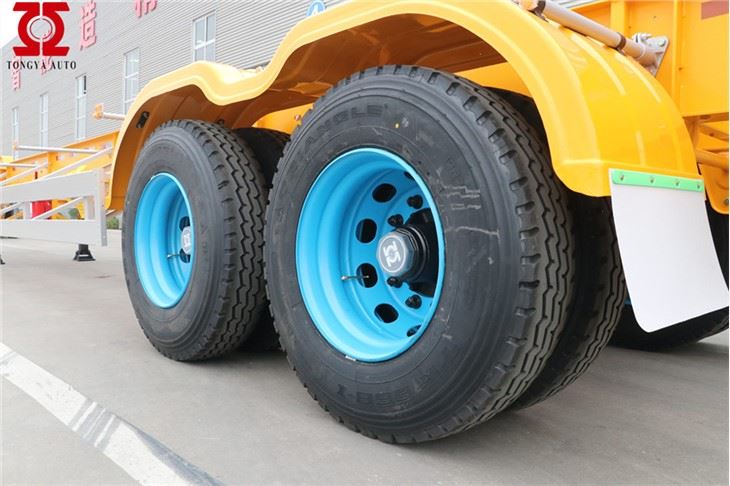

Tire | 12.00R22.5 or 315/80R22.5 |
Rim | 9.00-22.5 China Brand |
Suspension | Heavy duty tri-axle with 13 tons capacity,FUHUA brand |
Spring leaf | 90(W)mm*13(Thickness)mm 10 pcs leaf spring |
King pin | JOST brand 2.0 or 3.5 |
Landing legs | JOST brand E100 or China brand 28 Tons (Double speed) |
Main Beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel. |
Brake chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist locks |
ABS | Optional |
Light | LED light |
Voltage | 24V |
Electrical | One unit of 27V 7-pin ISO 1185 socket |
Tool box | One piece, 1m*0.5m*0.5m (Size can be choose freely) |
Painting | Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client. |
Gooseneck container trailer 3 axle 45ft container chassis for sale.
Tongya company provide the gooseneck container trailer can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer.All the gooseneck container trailer use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Double coin,etc !Products fully comply with relevant national standard GB1589, GB/T6420 !At the same time to meet the individual needs of customers. OEM/ODM service. Just tell us your idea, our R&D team is standing by ! Our main beam material use Q345 for the gooseneck container trailer,it has high-strength and strong stiffness features.Cross beam use Heavy duty 10# channel steel, (Q235 steel).Brake system for the gooseneck container trailer is great,WABCO relay valve; Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector.
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available.
Our product export to more than 30countries,such as East South Asia,Australia,South America,Africa,Central Asia and South Asia.Each year we common semi trailer more than 700 units,tanker semi trailer more than 900 units.
We believe that the word will know more of China because of our Tongyada semi trailer!
