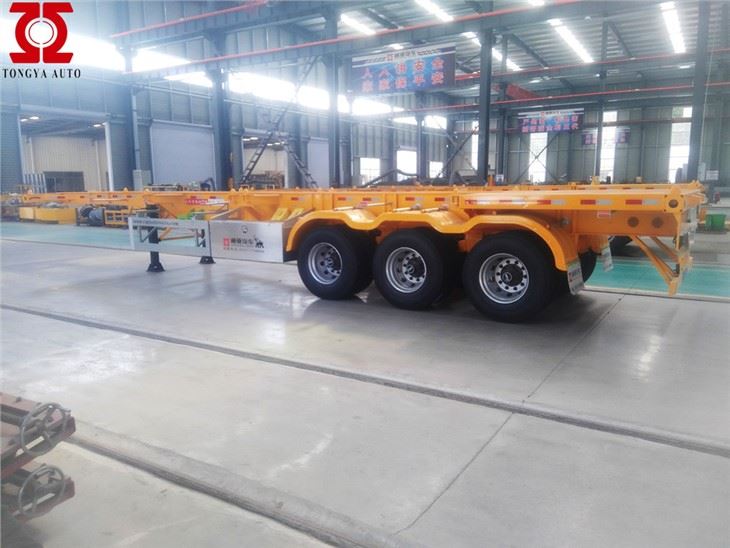

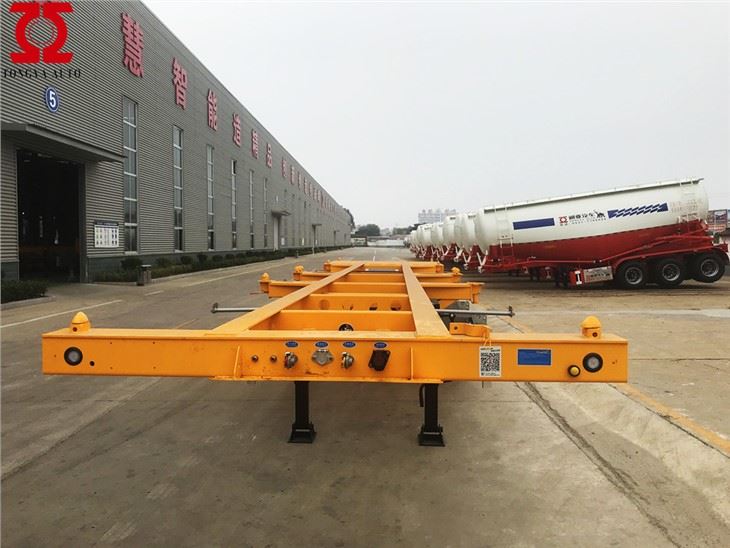

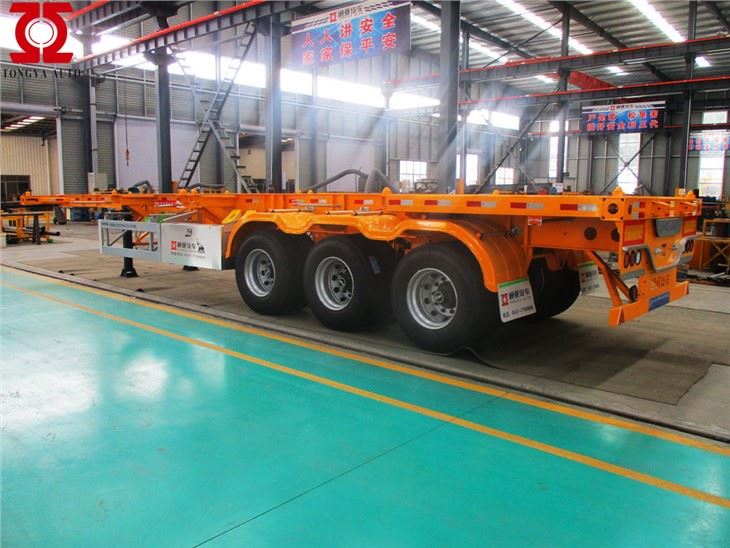

3axles Skeleton Semi Trailer

3axles Skeleton Semi Trailer

High quality 3 axles skeleton semi trailer for sale
This type skeleton semi trailer is used for loading 2*20ft,1*40ft container
Design/welding technology is heavy duty and extra durability designed;welding by
Automatic Submerged-Arc processes;

Product Introduction

Introduction

The 3axles Skeleton Semi Trailer is characterized by high strength and strong lifting force. Secondly, we adopt the space frame structure made of longitudinal beam and integral through-beam resistance welding, which can balance the strength, stiffness, toughness and strong load-bearing capacity of the frame. Finally, our products are inexpensive and good quality, which is loved by our customers.


Feature

The 3axles Skeleton Semi Trailer is made of high quality steel, which has the characteristics of long life and reliable quality. Secondly, our products have personalized features such as short wheelbase, small turning radius and flexible operation. What's more, our products are very strong and durable, and have the characteristics of easy cleaning. Finally, using it can save you a lot of time and energy.



Tare Weight

About 6.5tons

Outer side dimension (mm)

12450*2490*1400

Loading Capacity(Ton)

≦45T(40FT)

Axles

3 axles square axle with 13 tons capacity,FUHUA brand(China best brand)

Tire

12.00R22.5 or 315/80R22.5
China Brand or According to Customer requirement

Rim

9.00-22.5 China Brand

Suspension

Mechanical suspension

Spring leaf

90(W)mm*13(Thickness)mm 10 pcs leaf spring

King pin

JOST brand 2.0 or 3.5

Landing legs

JOST brand E100 or China brand 28 Tons (Double speed)

Main Beam

Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel.

Brake chamber

WABCO relay valve

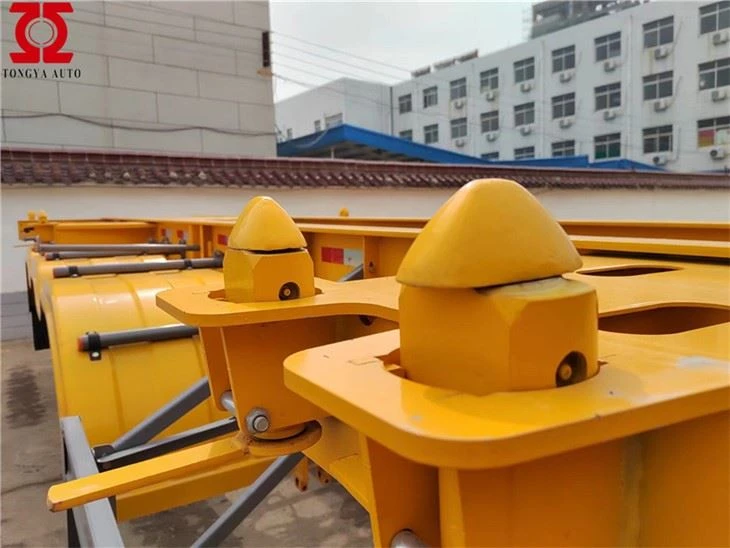

Twist Locks

12 units ISO twist locks

ABS

Optional

Light

LED light

Voltage

24V

Electrical

One unit of 27V 7-pin ISO 1185 socket

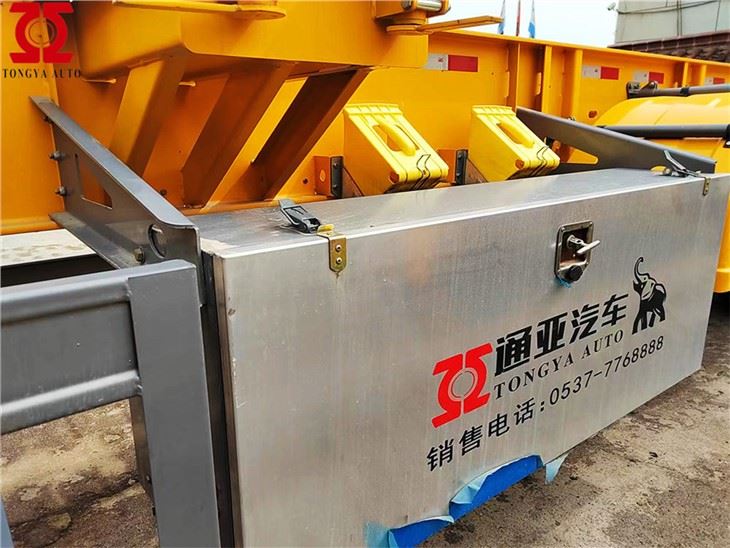

Tool box

One piece, 1m*0.5m*0.5m (Size can be choose freely)

Painting

Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client.
