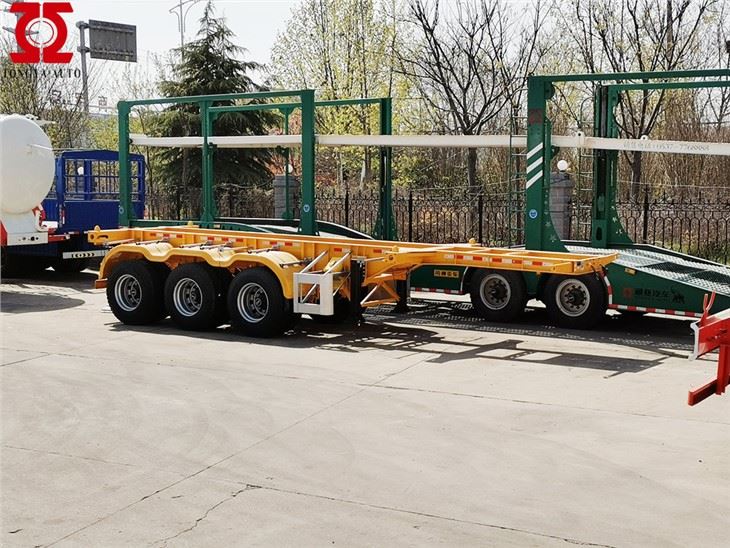

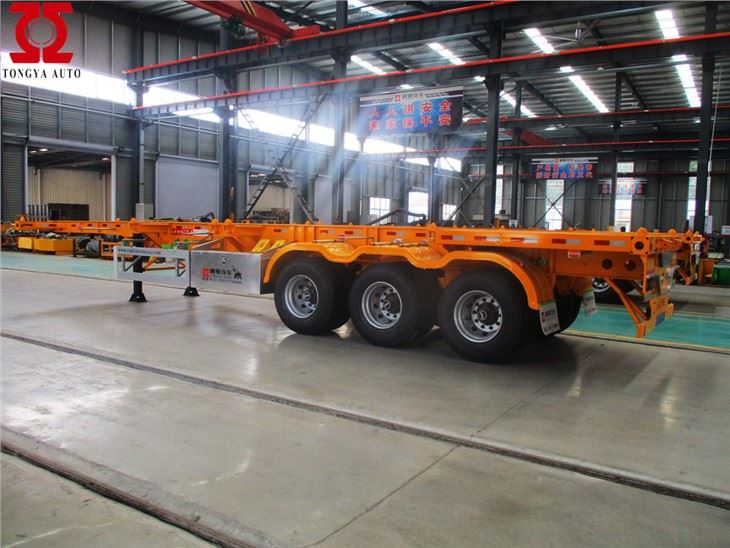

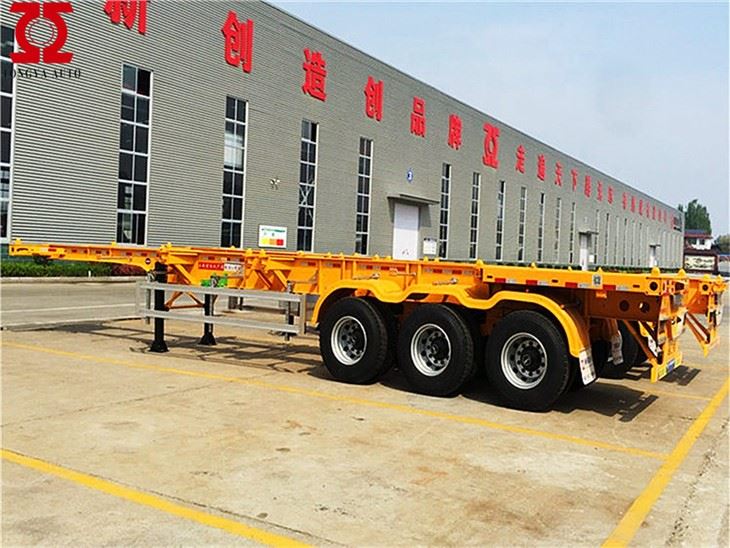

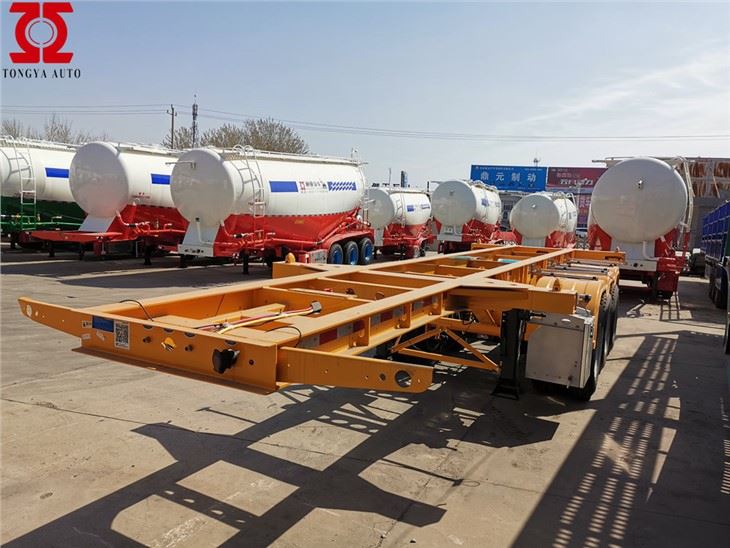

40ft Skeleton Trailer
TONGAY 3 axles 40ft heavy duty and extra durability design skeleton semi trailer for sale.

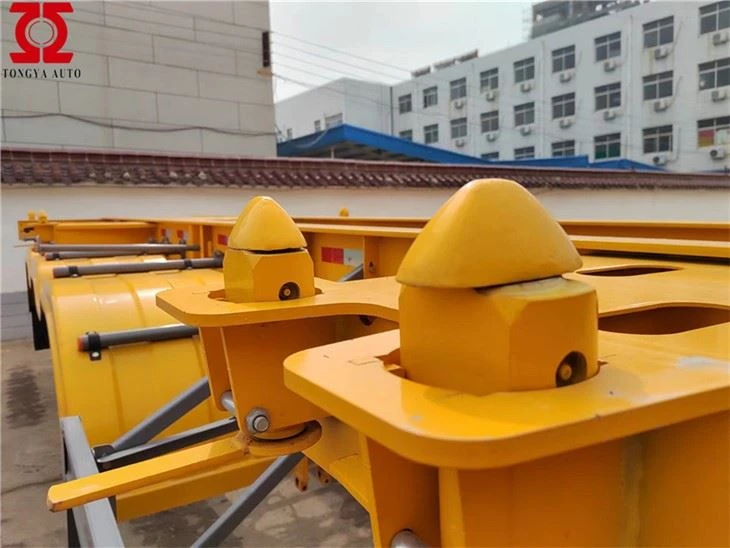

This 40ft skeleton trailer have12 units ISO twist locks for 2x20ft, 1x40ft ,1x20ft container, 4 units fixed,8 units retractable twist locks.
6 months of quality guarantee is provided for this 40ft skeleton semi trailer.
Product Introduction
Tare Weight | About 6.5tons |
Outer side dimension (mm) | 12450*2490*1400 |
Loading Capacity(Ton) | ≦45T(40FT) |
Axles | 3 axles square axle with 13 tons capacity,FUHUA brand(China best brand) |
Tire | 12.00R22.5 or 315/80R22.5 |
Rim | 9.00-22.5 China Brand |
Suspension | Heavy duty tri-axle with 13 tons capacity,FUHUA brand |
Spring leaf | 90(W)mm*13(Thickness)mm 10 pcs leaf spring |
King pin | JOST brand 2.0 or 3.5 |
Landing legs | JOST brand E100 or China brand 28 Tons (Double speed) |
Main Beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel. |
Brake chamber | WABCO relay valve |
Twist Locks | 12 units ISO twist locks |
ABS | Optional |
Light | LED light |
Voltage | 24V |
Electrical | One unit of 27V 7-pin ISO 1185 socket |
Tool box | One piece, 1m*0.5m*0.5m (Size can be choose freely) |
Painting | Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client. |
Tongya tri- axles 40ft skeleton trailer for sale.Usage for 40ft skeleton trailer:used for loading 2*20ft/1*40ft container.The tare weight of the 40ft skeleton trailer about 5.5T/unit.,and the loading capacity for the 40ft skeleton trailer is 45T.Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes.Main beam for the 40ft skeleton trailer;Opting for high strength Q345B steel, 500mm deep welded I-section main beams .Top Flange thickness 14mm, width 140mm; Bottom Flange thickness 16mm, width 140mm.Middle Flange thickness 8mm; 3 axles *square axle with 13 tons capacity, FUWA brand (Chinese best brand);40ft skeleton trailer have12 units ISO twist locks for 2x20ft, 1x40ft ,1x20ft container, 4 units fixed,8 units retractable twist locks.Shipping by container,two skeleton trailer put into one 40ft container. Our factory very serious about quality inspection and we try our best to stop any defective products from being shipping . Once we find any quality issue,un-qualified products ,we will replace them with any cost.We are the manufacture,production time 7 workdays for one unit semi trailer,300 units per month.6 months of 40tf skeleton trailer quality guarantee is provided,
Following we'll provide qualified spare parts with the price we get from our suppliers, and sent engineer for maintenance if necessary at your cost.
Now we provide more than 60 types of trailers and also our trailers can be customized according to your specifications and design drawings. You are warm welcome to contact us and we are ready for you!!!
