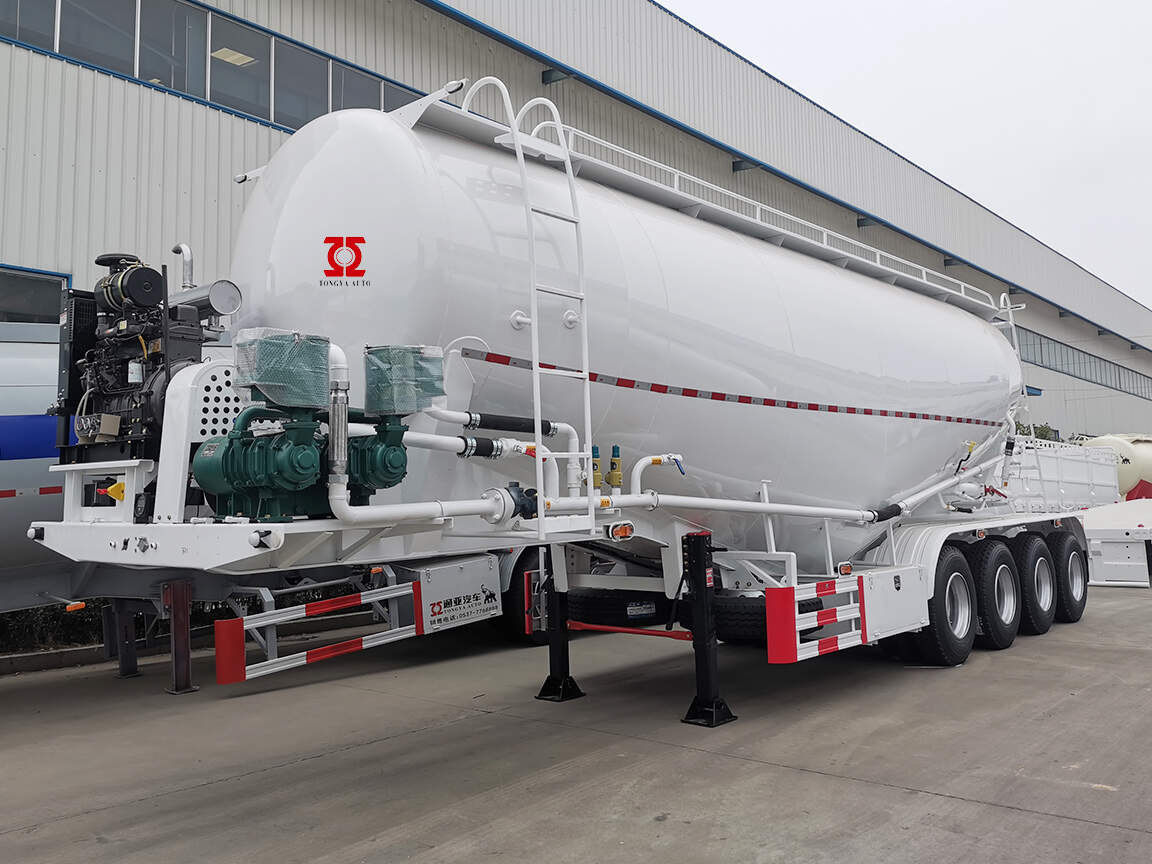

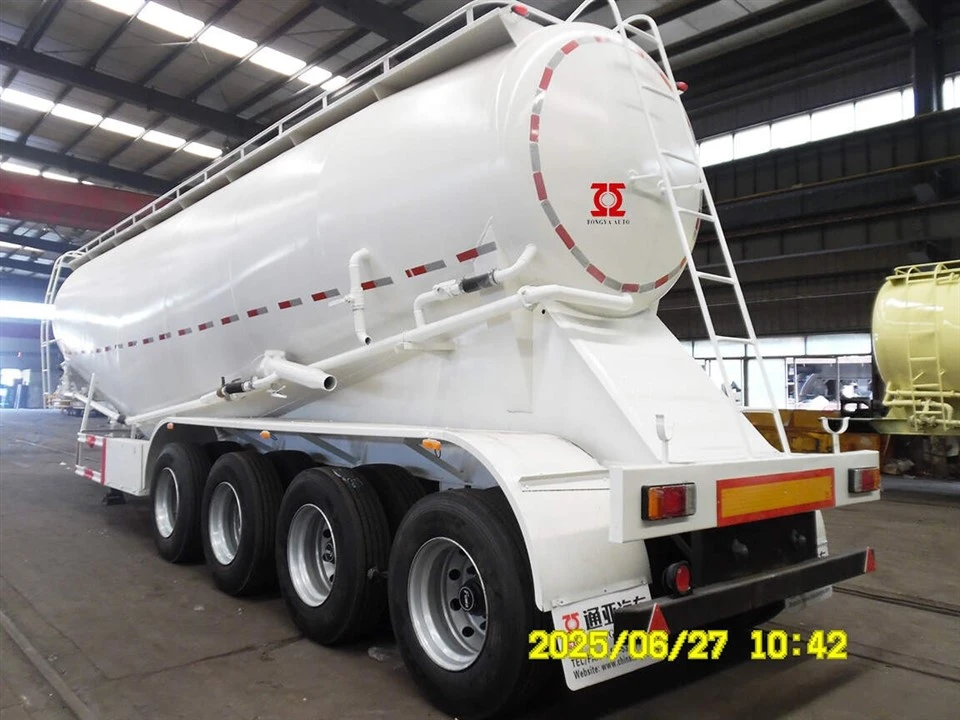

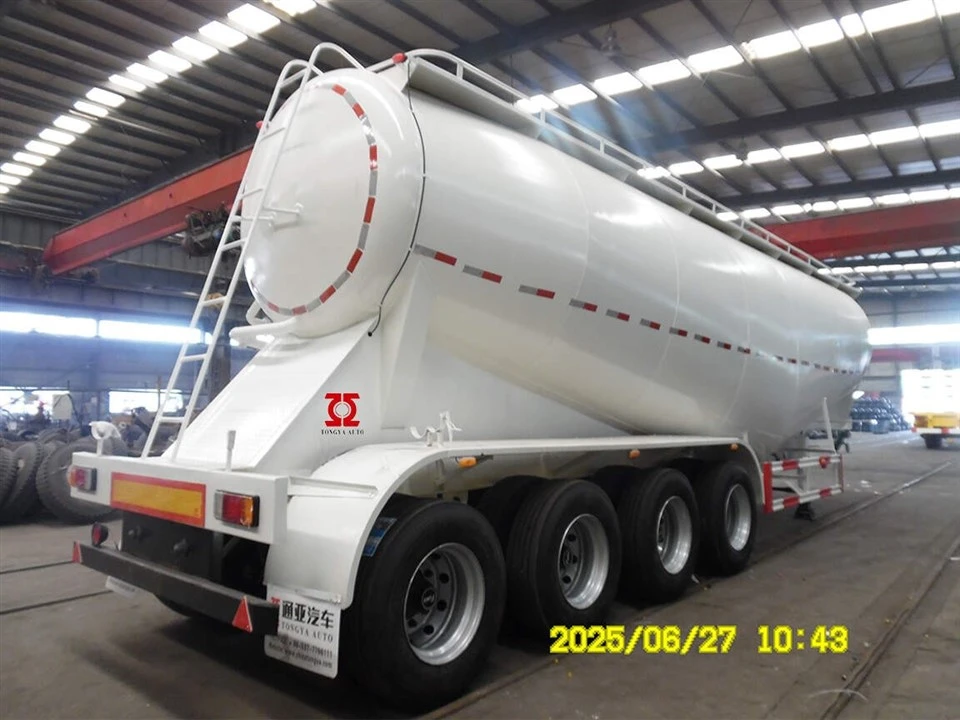

4 Axle 50m3 Bulk Cement Tanker Semi Trailer
50m3 large volume powder bulk cement tanker semi trailer is suitable for the transportation of fly ash, pulverized coal, cement and other materials, such as light weight, convenient operation and low cost, and has the characteristics of small air flow loss in the air chamber, good compression resistance, fast discharge speed and low residual rate.
Product Introduction
Products Description
4 Axle 50m3 Bulk Cement
Tanker Semi Trailer Advantage:
1, Customization is acceptable for tanker capacity and style;
2, China leading manufacturer since 1982, top 1 sales in China market since 2012;
3, Engine and compressor is available, PTO via truck tractor optional;
4, Fast discharging, <0.3% retention volume, 18 days delivery time.
Products Specification
| Main Dimension | |
| Manufacturer: | TONGYA AUTOMOBILE.CO.,LTD |
| Place of Origin： | Shandong, China |
| Type： | Bulk Cement Tanker Semi Trailer |
| Dimension: | 11900*2500*3900mm (can be customized) |
| Tare Weight: | About 11T |
| Loading Capacity: | ≤50T |
| Tanker Capacity: | 50m3 (50000L) |
| Tanker body Thickness(mm): | 5mm |
| Front and Rear dish Thickness(mm): | 6mm |
| Chassis | |
| Bottom chassis | High strength Q355B steel |
| Tanker shape | "V" shape |
| Manhole: | 2 pieces, (Diameter is 500mm) |
| Discharge mouth | 4 inch Discharge mouth |
| King Pin: | Jost brand 2.0 inch |
| Support Legs： | Jost brand A300C |
| Axle: | 13T*4, FUWA Brand |
| Suspension: | Mechanical suspension |
| Spring Leaf: | 90(width)mm*13(thickness)mm*10layer |
| Tire: | 12R22.5 Triangle brand ( various tire brands are available) |
| Rim: | 9.0-22.5 |
| Air compressor | 12m3 double-cylinder air compressor, Bohai brand (Chinese famous brand) |
| Engine | Diesel Engine,Weifang Tianhe brand 4105 engine (Chinese famous brand) |
| Emergency Brake Valve: | WABCO |
| Spare Tire: | 1 Piece |
| Painting: | Advanced powder spraying with baking enamels processes |
| Accessories: | One standard tool box |
Company Detail

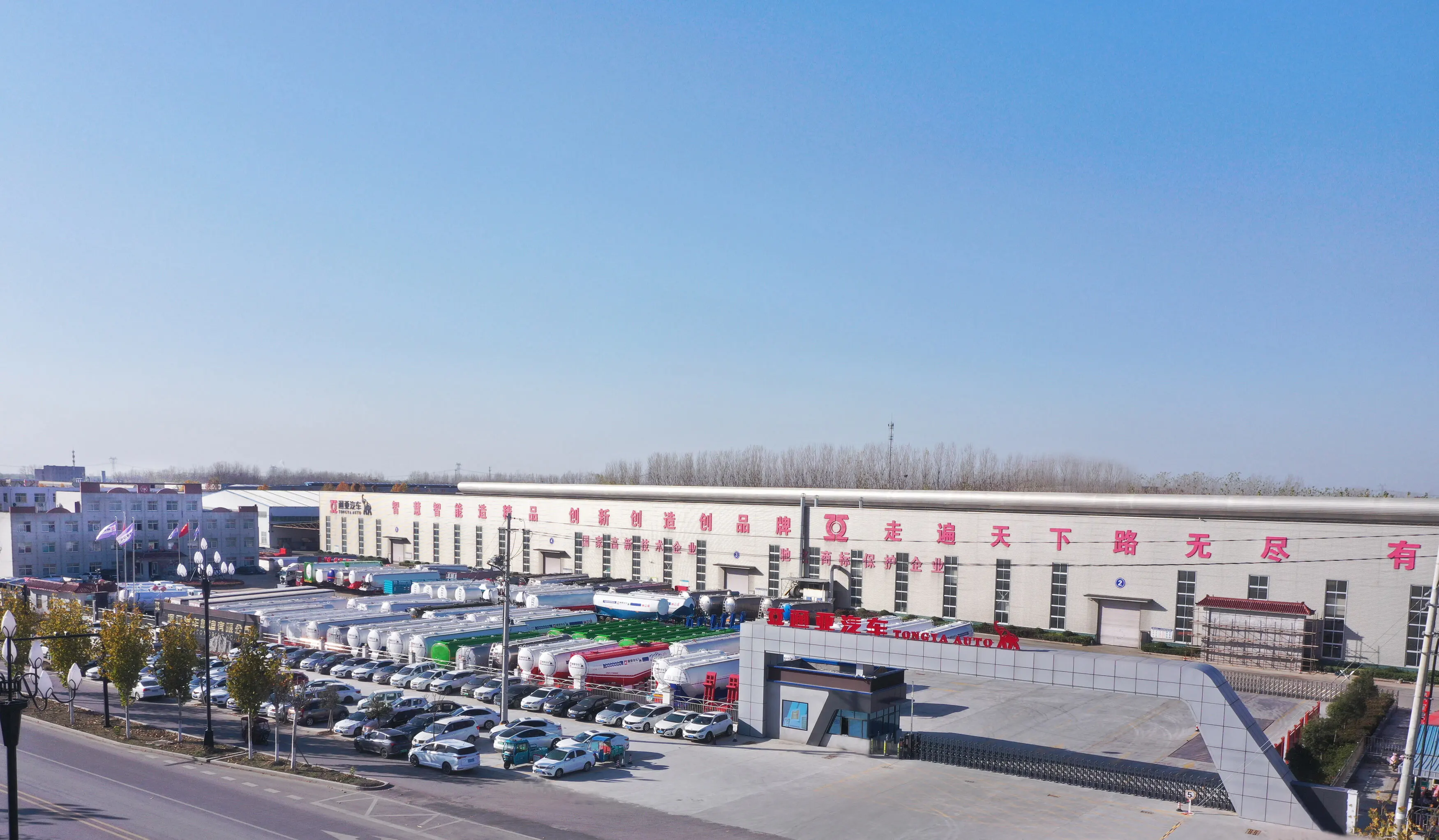

TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design, manufacturing and sales of semi trailer and spare parts together.
Start export business since 2006, with a complete, professional and efficient export team. We start to send engineers, factory production supervisors,purchasing manager and sales to attend international exhibition since 2008, include IAA Transportation Fair in Hanover Germany,Mid-America trucking show in USA. Every Canton Fair and Bauma China.
