China Manufacture TONGYA 4 Axles Petrol Tankers
1.Oil transport trailer is used for loading gasoline, diesel, palm oil, etc. 2. We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product Introduction

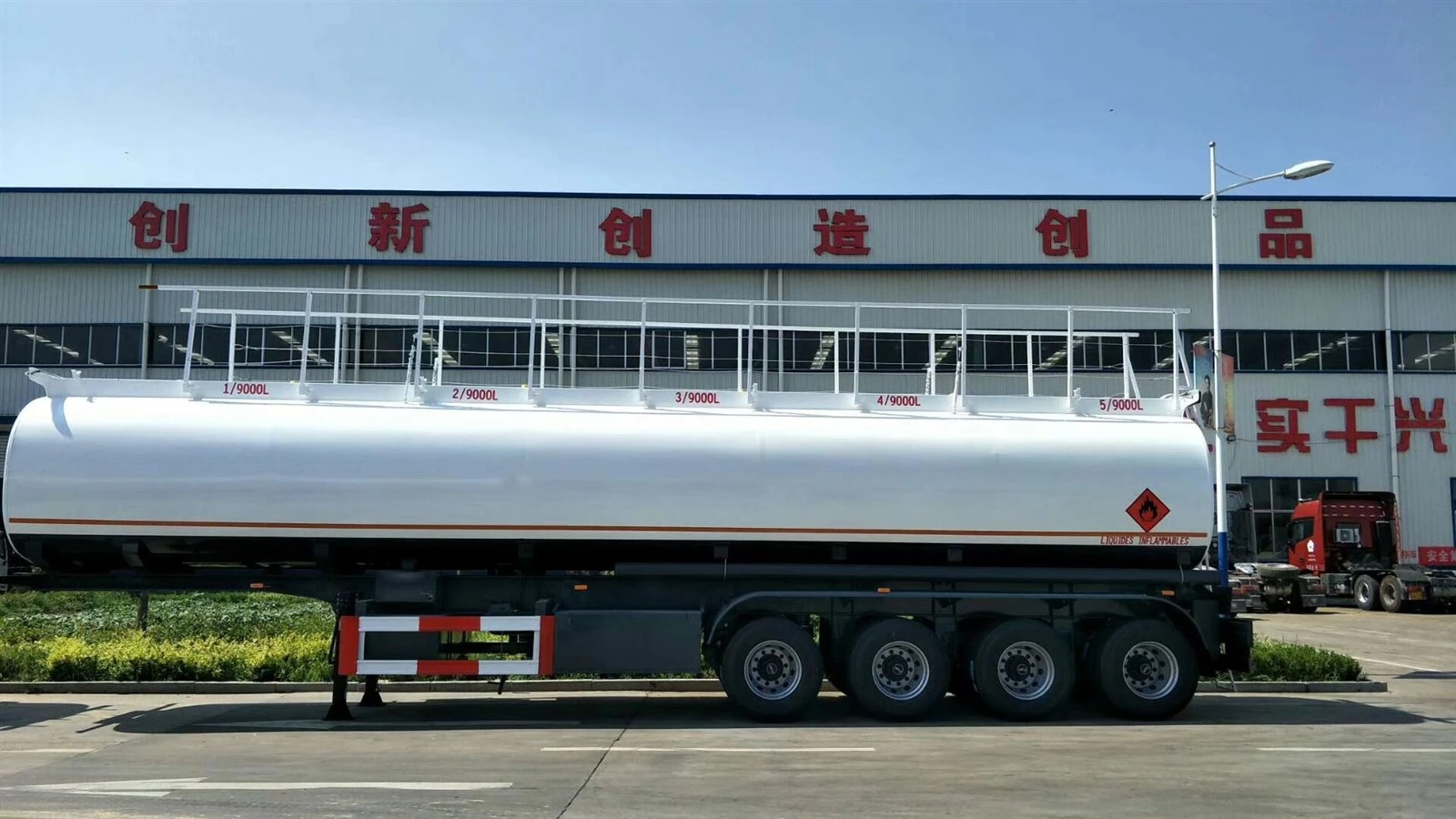

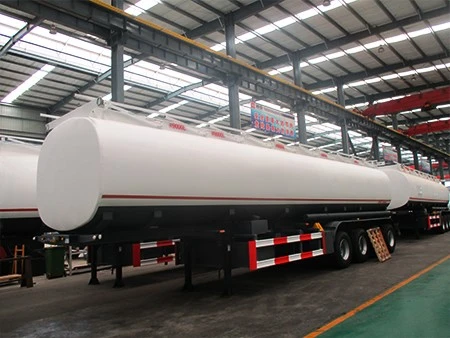

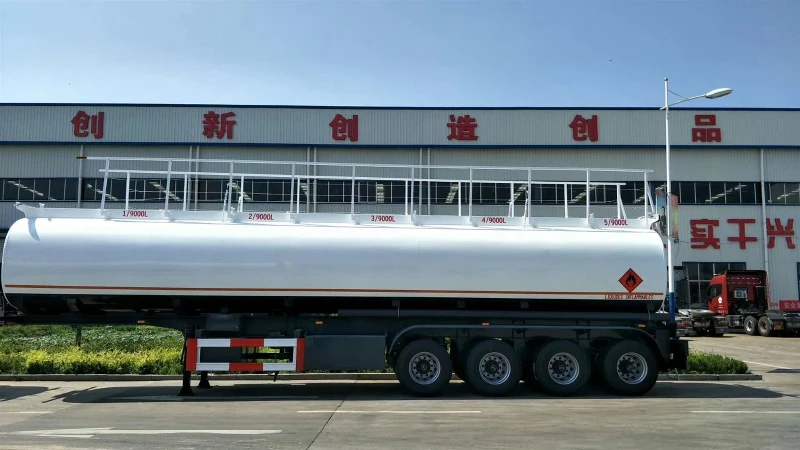

China Manufacture TONGYA 4 axles petrol tankers
All various fuel products can be carried with 4 axles petrol tankers . Petroleum,Diesel,Fuel oil,JET A1 and many other types of fuel products transportation suitable with three axle tanker semi-trailer.
Loading capacity between 20.000 ltr to 57.000 ltr for 4 axles petrol tankers . Compartment quantities can be arranged according to the customer request on China Manufacture TPNGYA 4 axles petrol tankers.
China Manufacture TONGYA 4 axles petrol tankers supplier :
|
Basic Information |
||
|
Outer size |
13000x2500x3780mm |
|
|
Design Capacity (gross) |
45000L |
|
|
Tare weight (±3%) |
13000KG |
|
|
Type |
Tri-axle semi-trailer |
|
|
Coupling height |
Unladen 1320 mm |
|
|
Tank assembly |
||
|
Compartment |
Optional |
|
|
Front/Rear end plate |
Material |
Carbon steel |
|
Front/Rear end plate |
thickness |
6mm |
|
Tank body (with insulating layer) |
Material |
Carbon steel |
|
Thickness |
5mm |
|
|
Wave-proof plate thickness |
4mm |
|
|
Manhole cover |
Diameter |
500mm |
|
Material |
Factory standard |
|
|
Number |
2-6pcs (optional ) |
|
|
Discharging valve |
Diameter |
3 inch |
|
Material |
Aluminum Alloy API valve |
|
|
Number |
2-6 pcs(optional ) |
|
|
Bottom safety valve |
Aluminum Alloy 4 inch |
|
|
Discharging pipe |
Diameter |
3 inch |
|
Type |
Rubber hose,2pcs |
|
|
Cat walk |
Standard |
|
|
CHASSIS
|
||
|
Axle |
Brand |
Fuwa |
|
Type |
13t |
|
|
Number |
4pcs |
|
|
Rim |
Type |
9.0-22.5 |
|
Number |
16 pcs |
|
|
Tire |
Brand |
Triangle brand |
|
Type |
12R22.5 |
|
|
Number |
16pcs |
|
|
Suspension |
Mechaniacal suspension / air suspension can be optional |
|
|
Spring leaf |
Leaf width |
90mm |
|
Leaf thickness |
13mm |
|
|
Layer/set |
10 Layer |
|
|
King pin |
Type |
Bolts type |
|
Diameter |
2 inch |
|
|
Brake system |
Air tank |
45L air tanks |
|
Brake chamber |
WABCO RE6 relay valve; T30/30+T30 Spring brake chamber |
|
|
ABS |
Optional |
|
|
Landing gear |
Brand |
JOST |
|
Type |
E100 |
|
Send an inquiry and we will give you exclusive price discounts.
We are factory manufacturing, welcome you to visit our factory.
Packing and transportion:
The internal tank body of the tank trailer is fitted with a corrugated reinforced wave guard every 2m. When the brakes are applied when the tank is fully loaded with oil, the wave guard can reduce the impact of the oil on the tank body and play a safe protective role. The whole tank body is fully automatic and seamlessly welded, 100% passing the strict testing requirements such as liquid penetration, air pressure testing and flaw detection, the tanker semi-trailer is safer to run and the quality is guaranteed.
Container Shipment( below 41 cbm can load in a 40hq, more than 42 cbm needs a big container and a small container. )
Bulk Shipment. This is the most common way, it can keep the completeness of the trailer.
Ro- Ro shipment. The price of Ro- Ro shipment is the most expensive of all ways. It can protect the trailer well and keep the completeness of the trailer.
Flat Rack. It is one of the containers but it has lengthy limited that is about 11.7 meters.
We work with many cargo agent and we will choose the most suitable, cheapest and safest way for you according to the quantity of trailers and your request.
