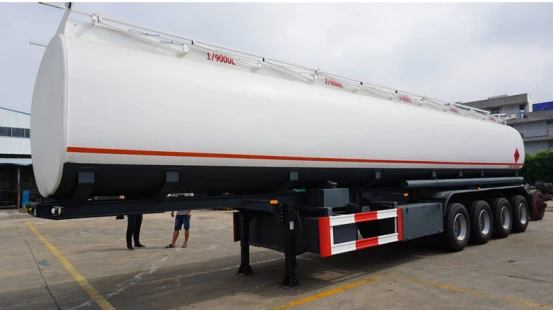

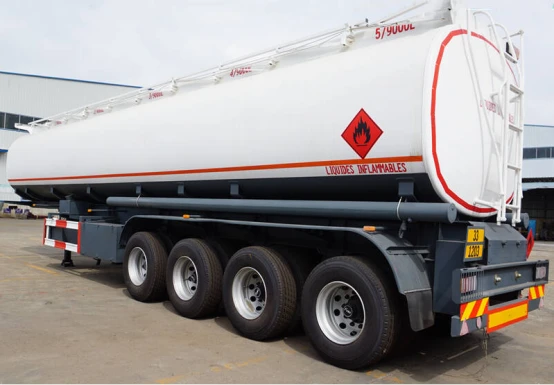

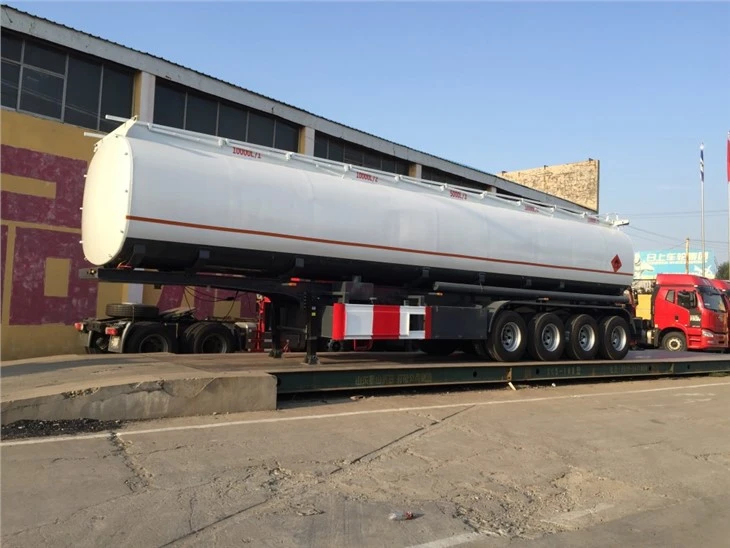

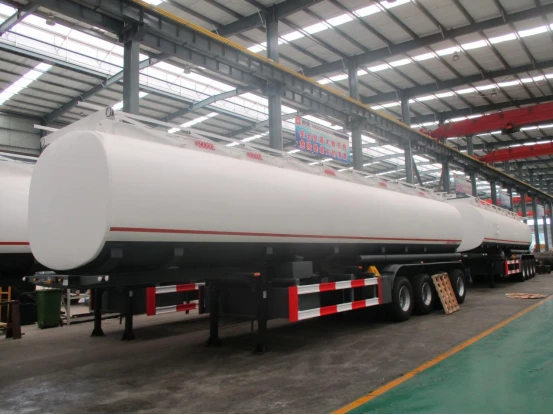

Customized 4 Axles Fuel Tanker Truck Trailer
1.Tank section style：Perfect circle；oval ;Rectangular circle 2.Tank body style: Straight style; Gooseneck style;full trailer style; V-type without stringer style etc. 3.Apply for transporting Fuel, JET A-1, Water, Liquid chemical, Crude oil, Food oil etc. is widely used in oil depot, petrol station，oil field, chemical factory, food oil factory, bitumen factory etc.
Product Introduction
Introduction
The Customized 4 Axles Fuel Tanker Truck Trailer have safety devices and have large manholes as explosion-proof covers. The bottom outlet of the tank is equipped with an emergency shut-off valve. Secondly, our tank body is automatically welded by advanced large-scale special welding machine. More importantly, our products are longitudinally welded. Ensure the safety of the tank truck and increase the service life. Finally, if you are interested in our products, please contact us in time.
Feature
The Customized 4 Axles Fuel Tanker Truck Trailer have water-filled test equipment tanks. This ensures a high sealing of the tank to avoid oil leakage. Secondly, our wave plate reduces the impact of liquid on the tanker. What's more, before refueling operation, it must be inserted into the wet land using a power avoidance pole. Finally, our products are also robust and have a good service life.
4 axles fuel tanker truck trailer Specifications
|
Type |
4 axles fuel tanker truck trailer |
|
|
Parameter |
Dimension (mm) |
length×width×height: 13000X 2,500X 3750mm |
|
kingpin setting (mm) |
1,000 |
|
|
tareweight (kg) |
approx. 7,500 |
|
|
Payload (kg) |
40,000 |
|
Steel Structure
Material:High Strength low alloy steel Q345(350Mpa yield strength) is used for welding I-Beam and Q235(235Mpa yield strength) is used for the fabricated parts.
OEM Parts Configuration
4 axles fuel tanker truck trailer Could be adjusted according to customer's request.
|
OEM |
landinggear |
JOST E100 |
|
kingpin |
2" JOST, exchangeable |
|
|
brake system |
Dual air brake system, WABCO brake valve |
|
|
ABS |
According to customer's request |
|
|
suspension |
Heavy Duty under mount Mechanical suspension with 10 pcs leaf spring. |
|
|
axle |
TONGYADA brand axle (fuwa, bpw, is optional) |
|
|
tire |
12R22.5-18PR, 16+1sets, |
|
|
rim |
9.0*22.5, equip 16sets |
|
|
toolbox |
1 steel box, |
