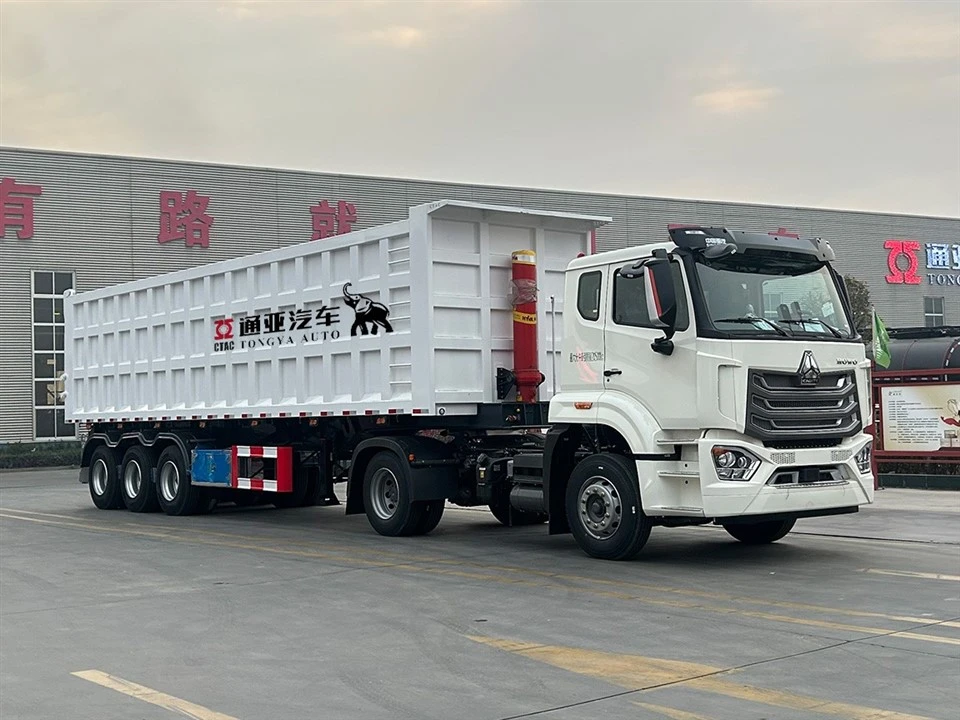

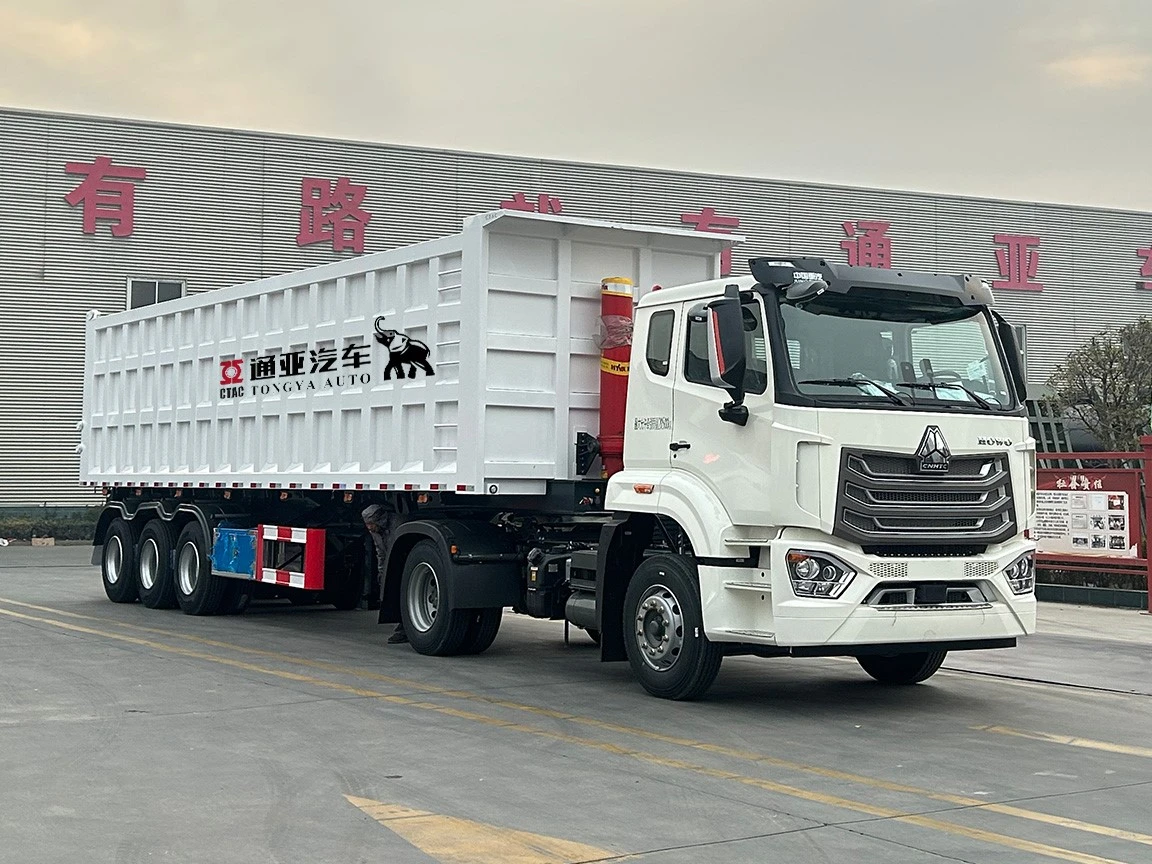

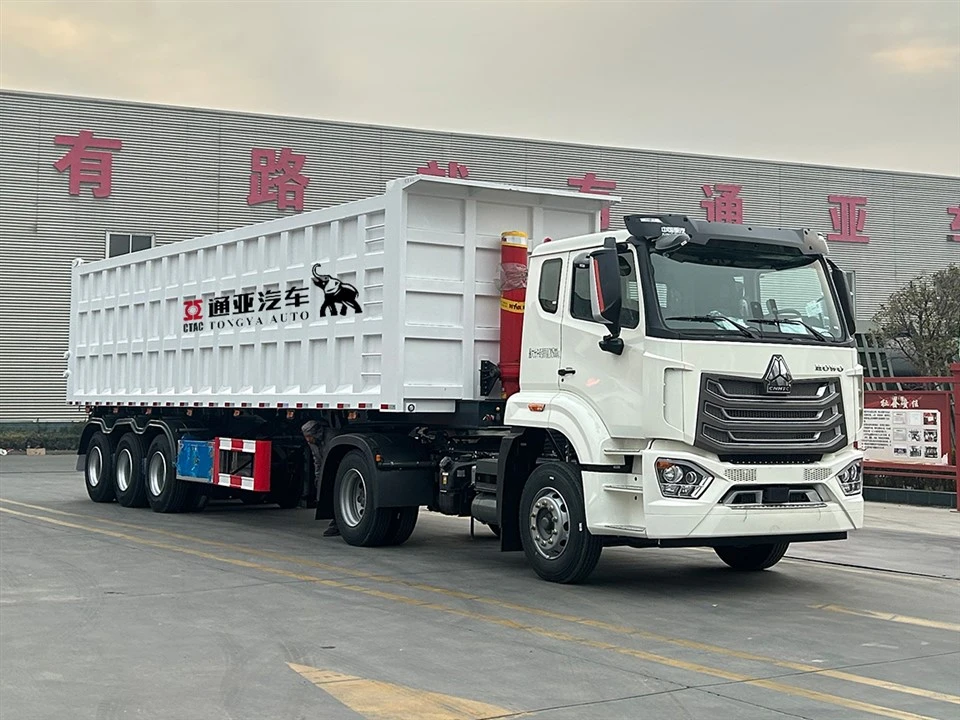

Dump Semi Trailer With Hydraulic Cylinder
60T Dump Semi Trailer can transport the goods through the self-unloading function, and is widely used in the transportation of bulk and scattered goods such as coal, ore, and construction materials.
Product Introduction
Products Description
请替换当前内容 This 50kVA single phase pole mounted transformer is exported to Canada inJuly,2024.The rated power of the pole mounted transformer is 50 KVA, the primary voltage is 34.5 kV and secondary voltage is 0.48v/0.277 KV. Western developed countries and Southeast Asia. North and South America, a large number of single-phase pole mounted This 50kVA single phase pole mounted transformer is exported to Canada inJuly,2024.The rated power of the pole mounted transformer is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA, the is 50 KVA.
Products specification
| Manufacturer: | TONGYA AUTOMOBILE.CO.,LTD |
| Place of Origin： | Shandong, China |
| Type： | 50T Rear Dump Semi Trailer |
| Dimension: | 9500*2500*3850mm (can be customized) |
| Tare Weight: | About 11-12T |
| Loading Capacity: | ≤60T |
| Side Wall Thickness(mm): | 4mm NM450 Wear-resistant steel |
| Bottom Plate Thickness(mm): | 6mm NM450 Wear-resistant steel |
| Chassis | |
| Main Beam: | Material T700 Steel |
| Height::500mm | |
| Upper plate:12mm | |
| Middle plate:8mm | |
| Down plate:14mm | |
| King Pin: | Jost brand 2.0 inch |
| Support Legs： | Jost brand A300C |
| Axle: | 13T*3, Fuwa Brand |
| Suspension: | Mechanical suspension |
| Spring Leaf: | 90(width)mm*13(thickness)mm*10layer |
| Lifting System: | HYVA brand |
| Tire: | 385/65R22.5 Chengshan brand ( various tire brands are available) |
| Rim: | 11.75-22.5 |
| ABS: | WABCO |
| Emergency Brake Valve: | WABCO |
| Spare Tire: | 1 Piece |
| Painting: | Advanced powder spraying with baking enamels processes |
| Accessories: | One standard tool box |
For more product details,please contact us.We will offer you the most compective pricing.
Company Profile

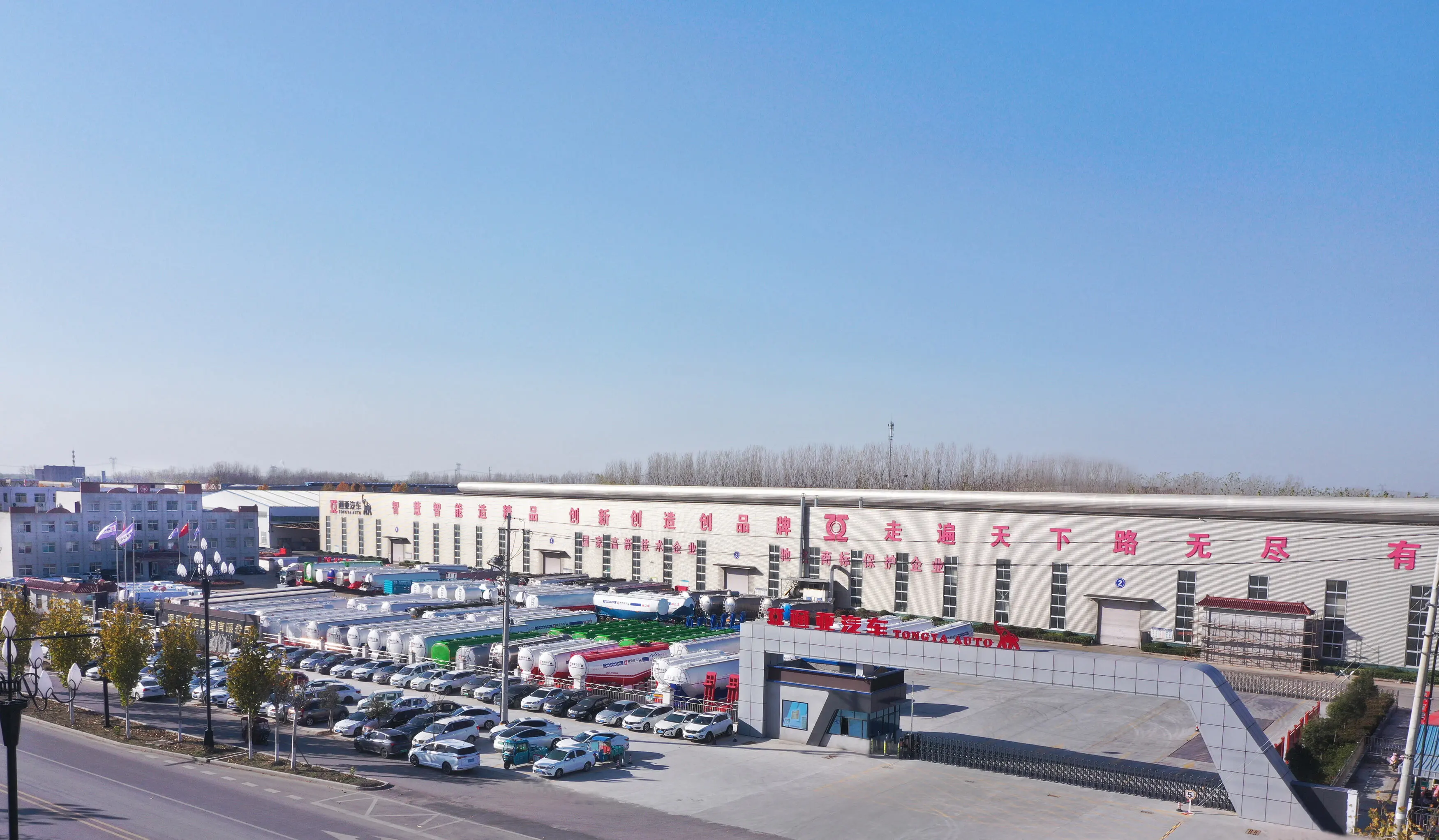

Our company covers an area of 400,000 square meters, total assets 7million US dollor. There are 156 persons with senior technical title. We have 1200 sets of first class fully automatic laser cutting machine, Automatic flat butt welding machine, Laser locating welding machine, fully automatic welding robot, tanker body inter and ourter automatic welding mechine, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and TEST EQUIPMENT which are advanced technology and Hi-Tech equipments. One hundred kinds of truck semi trailers and tanker trailers have passed our National Technical Appraisal and up to top class level in China, We have passed many certificates, such as ISO9001:2015, CCC, C.C.S, Saber, CQC, BV, SGS, CNCA, COTECNA, ECTN, SONCAP, OTTC etc.
