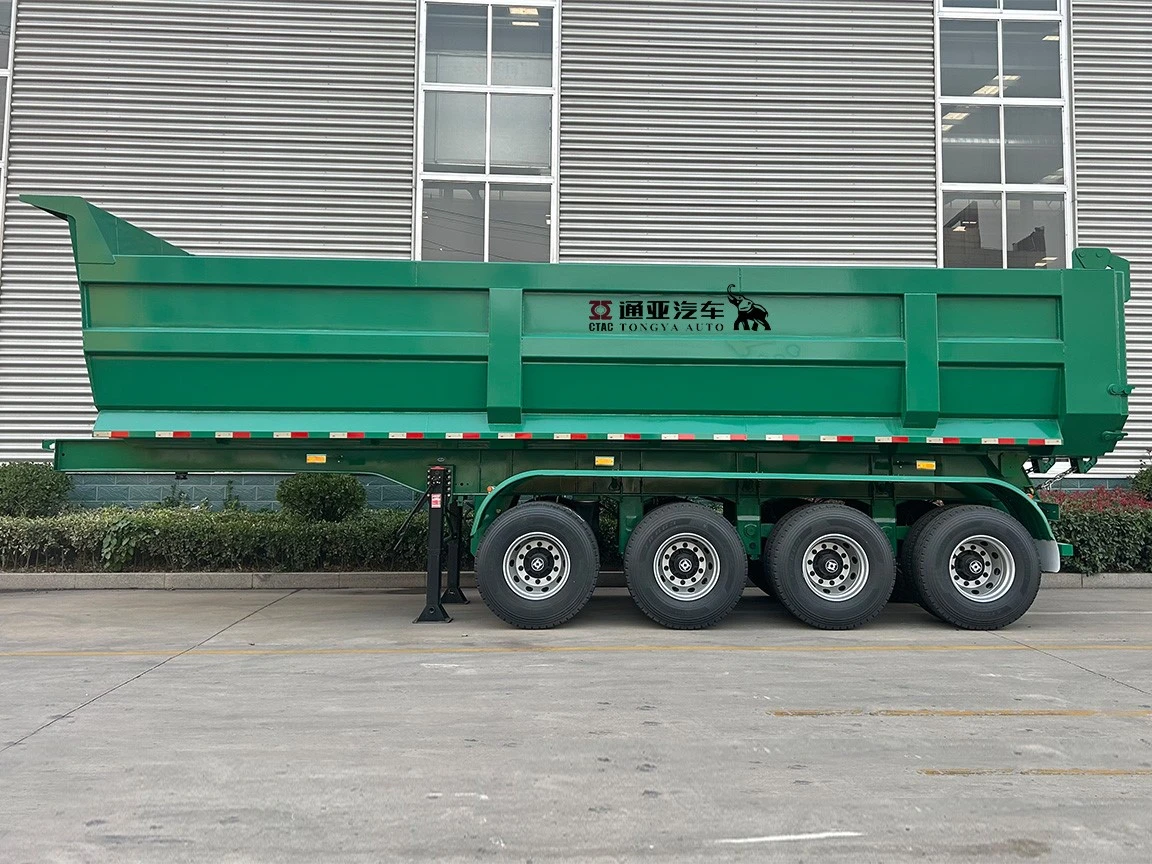

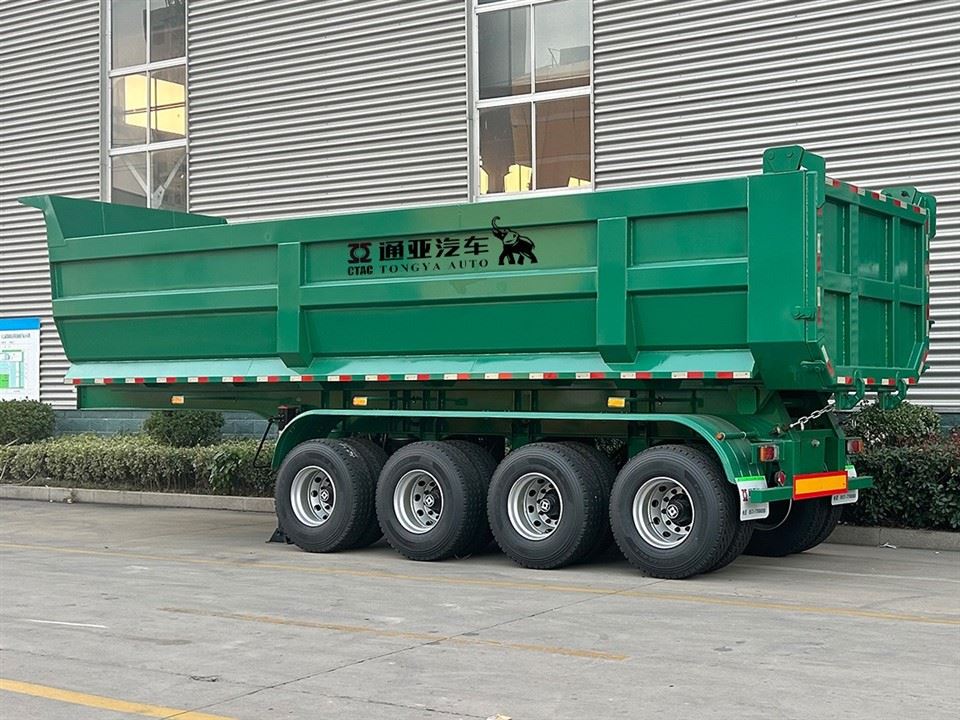

Four Axle Rear Dump Semi Trailer
4 Axle Rear Dump Semi Trailer is a vehicle used for the transportation of bulk and scattered goods such as coal, ore, and construction materials, and is lifted from the front side.
Product Introduction
Products Description
4 Axle Rear Dump Semi Trailer of Advantages:
1. High loading and unloading efficiency, can complete the unloading in a short period of time, greatly improving the loading and unloading efficiency;
2. Clean unloading, can reduce the goods in the transportation and loading and unloading links of the residence time, improve the transportation turnover rate;
3. Low transportation cost, reducing the workers' loading and unloading links, reducing the labor cost investment.
Products specification
| Manufacturer: | TONGYA AUTOMOBILE.CO.,LTD |
| Place of Origin： | Shandong, China |
| Type： | Rear Dump Semi Trailer |
| Dimension: | 10500*2550*3700mm (can be customized) |
| Tare Weight: | About 12-15T (12.62T) |
| Loading Capacity: | ≤60T |
| Side Wall Thickness(mm): | 5mm 450 Wear-resistant steel |
| Bottom Plate Thickness(mm): | 6mm 450 Wear-resistant steel |
| Chassis | |
| Main Beam: | Material Q355D Steel |
| Height::500mm | |
| Upper plate:16mm | |
| Middle plate:10mm | |
| Down plate:18mm | |
| King Pin: | Jost brand 3.5 inch |
| Support Legs： | Jost brand A300C |
| Axle: | 13T*4, Tongyada Brand (Chinese famous brand) |
| Suspension: | Mechanical suspension |
| Spring Leaf: | 90(width)mm*13(thickness)mm*10layer |
| Lifting System: | Georg brand GFC200-5-07200-K0486 |
| Tire: | 12R22.5*17 Triangle brand ( various tire brands are available) |
| Rim: | 9.0-22.5*17 |
| ABS: | WABCO |
| Emergency Brake Valve: | WABCO |
| Spare Tire: | 1 Piece |
| Painting: | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories: | One standard tool box |
Products Description
TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.
Our product export to more than 40 countries, such as Russia, East South Asia, Australia, South America, Africa, Central Asia and South Aisa .Each year we export common semi trailer more than 5000 units, tanker semi trailer 3500units.
FAQ
Q1,Why choose Tongya Automobile Co.,Ltd ?
1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers
2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries
3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process
4, Professional technical team with 24 fully experienced engineers
Q2,What can you buy from Tongya Automobile Co.,Ltd?
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container etc.
Q3,Can I visit your factory?
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.
Q4,How about your delivery time?
10-30 days after receive the deposit, depend on the order quantity.
Q5,What payment terms do you use?
T/T and L/C payment are acceptable.
Q6,Which incoterms 2010 terms can we work?
Normally we accept FOB, CFR, CIF.
Q7,Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.
Q8,What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port
The more information you will provide, the more accurate and competitive price we can offer.
