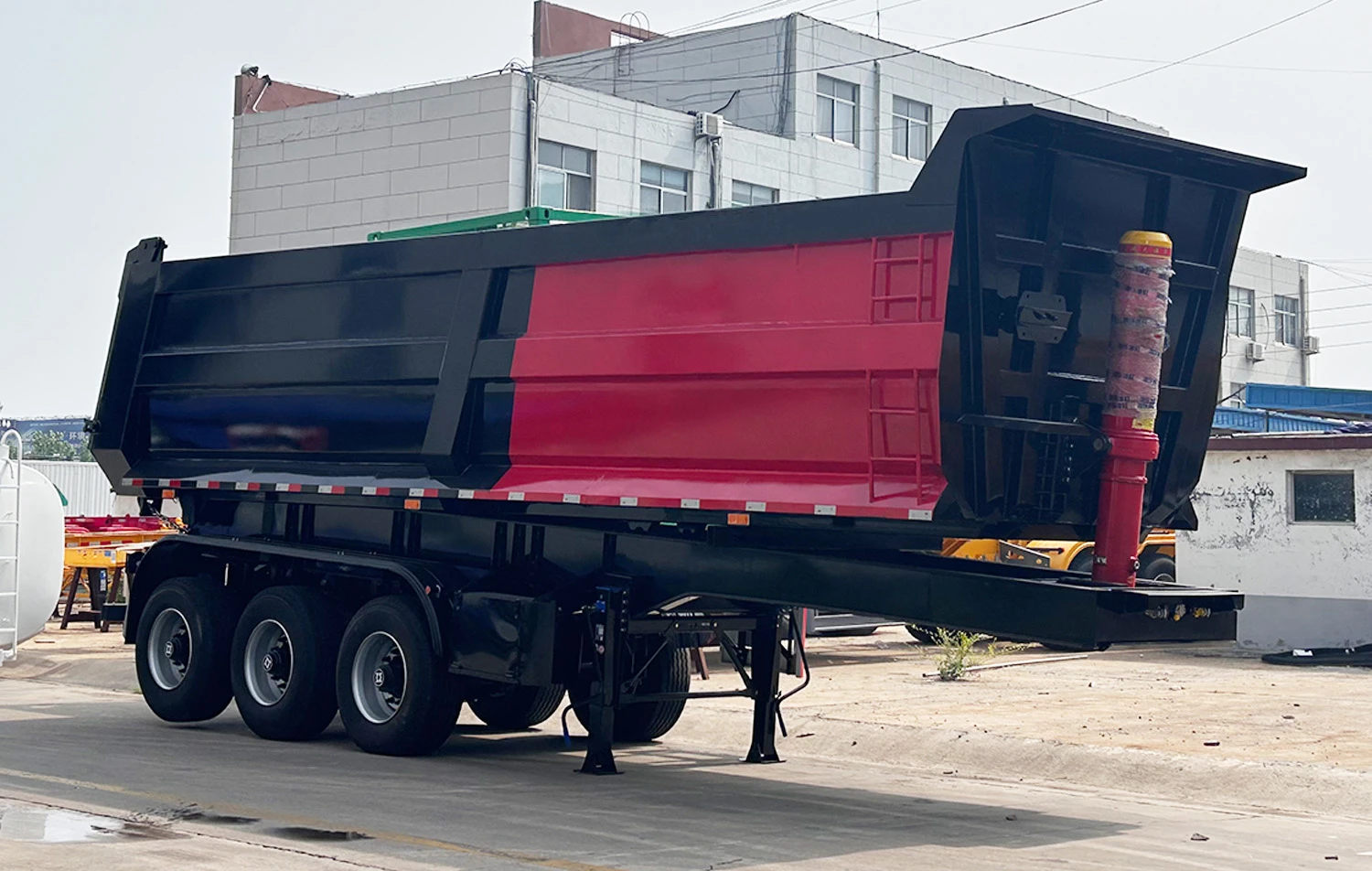

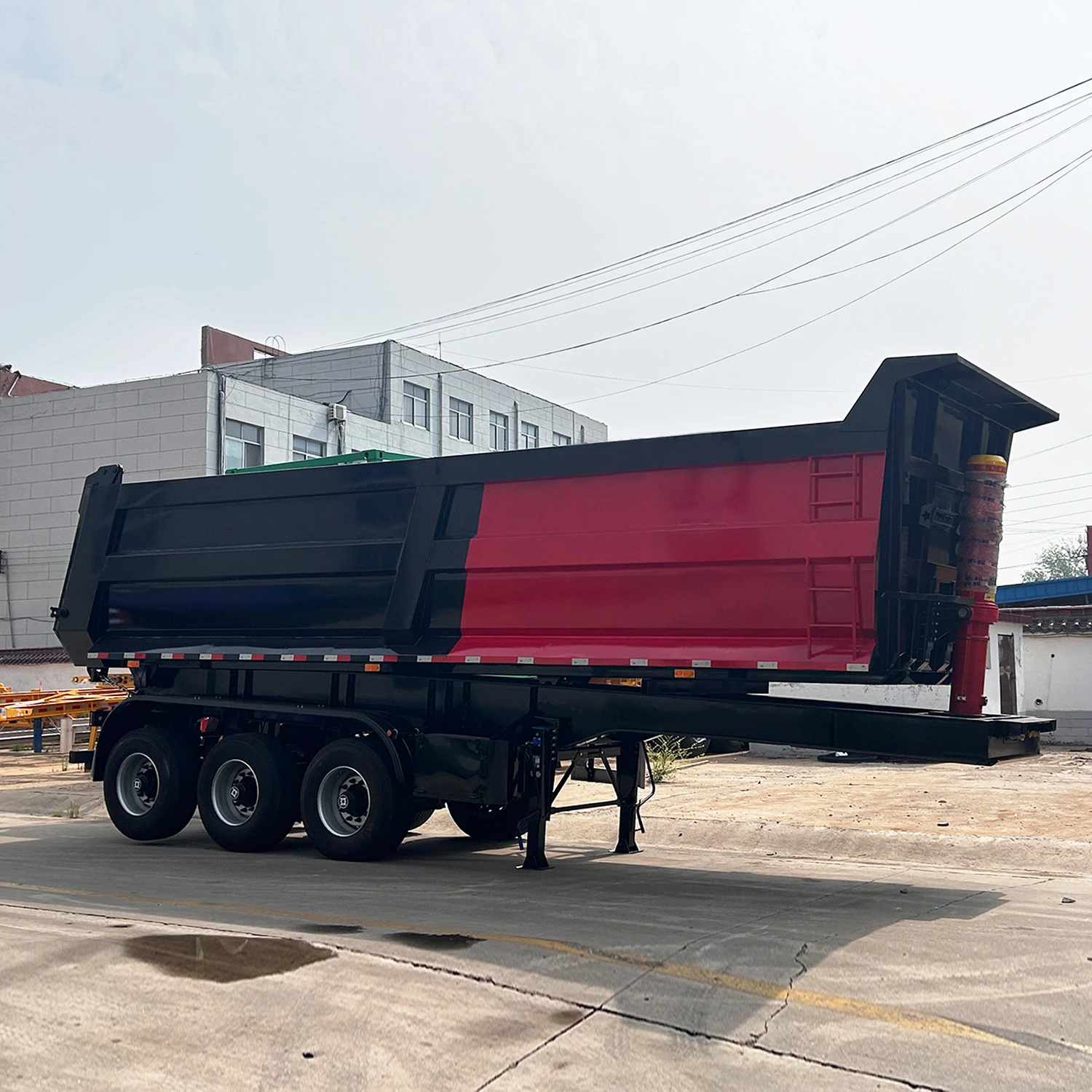

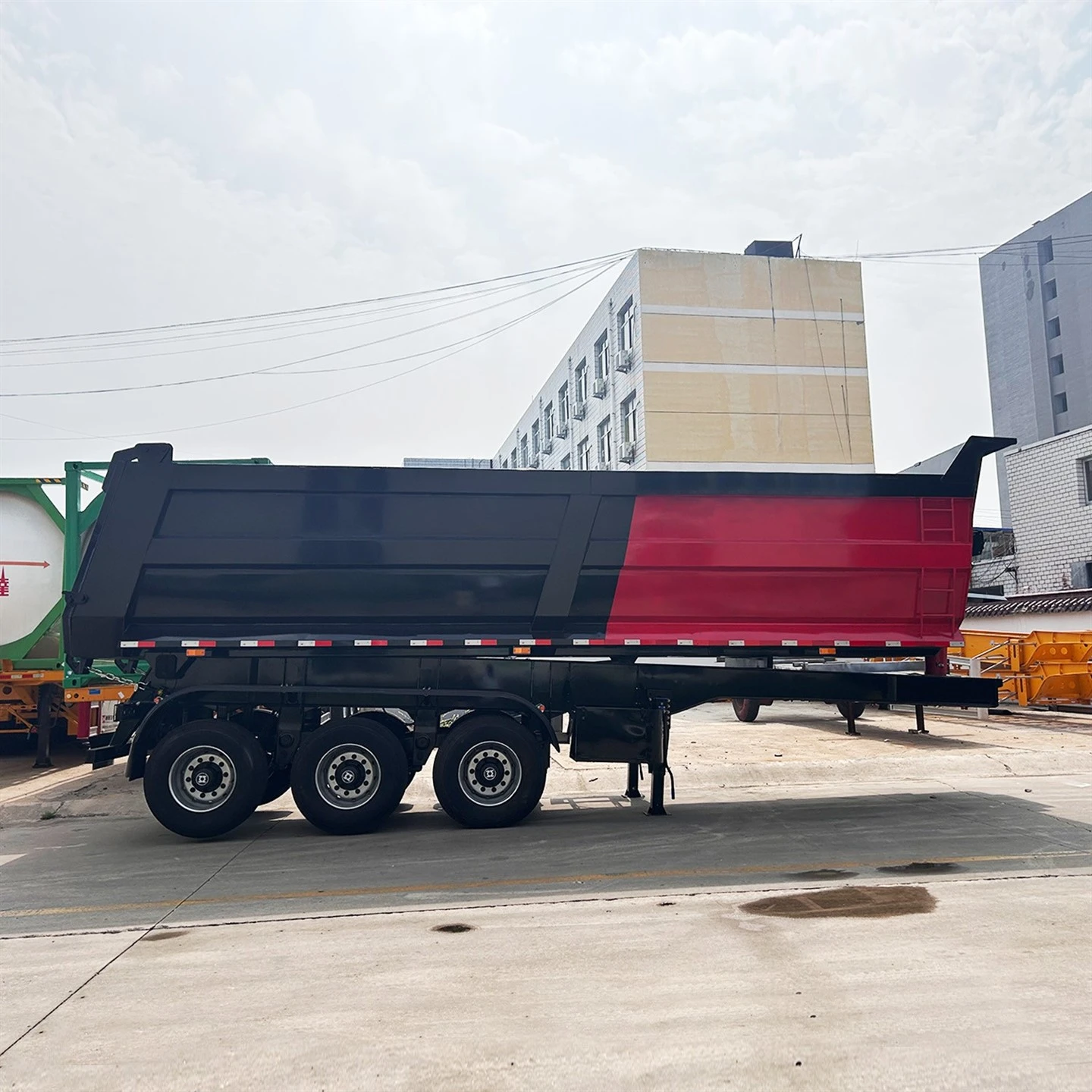

U Type dump Semi Trailer
This heavy duty side wall rear tipper semi trailer is designed for transporting bulk cargo. the height of the side wall is mormally 1500mm, and we can custom-made it according to your requirements.
Product Introduction
The U type dump semi trailer facilitates the quick dumping of materials, reducing unloading time and improving work efficiency. Its stable structure allows it to carry heavy loads, making it suitable for transporting sand, coal, and other heavy materials. It has strong adaptability, as it can be used in a variety of working conditions and is well-suited for complex environments such as construction sites and mining areas.
Specifications:
|
Tare Weight |
About 8T |
|
Dimension |
12500mm*2500mm*1550mm |
|
Loading Capacity (T) |
50 T |
|
Axle |
3 axles / 4axles, 13 T/16T/20T BPW / FUWA |
|
Rim |
9.00-22.5 (special for export market) |
|
Tire |
12R22.5 Deshenglong brand 13pieces/ 9 pieces |
|
Suspension |
Mechanical America Type optional/ bogie suspension |
|
Spring leaf |
90(W)mm*13(Thick)mm*10 Layer |
|
King pin |
brand JOST optional |
|
Support leg |
Jost A300C or TONGYA 28T |
|
Main beam |
Height: 500mm, upper plate is 16mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel |
|
Side beam |
Q235 16# channel steel |
|
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks |
|
ABS |
Without (optional) |
|
Valve |
WABCO valve |
|
Light |
LED light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Tool box |
1 piece:equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of final paint |
|
Shipping Terms: |
By bulk cargo carrier, RORO or 40HQ container |
Send inquiry Contact Supplier For Exclusive Services And Preferential Price.
We are factory manufacturing, welcome you to visit our factory.
Q1,Why choose Tongya Automobile Co.,Ltd ?
1,China leading manufacturer of semi trailer and tanker trailer since 1982,China famous brand, Annual output of 10,000 units different kinds of semi trailers .
2,More than 19 years export experience since 2005, Fully understand different local specs and standard from more than 50 different countries .
3, Customized product is available, with modern and advance production line with all kinds of production equipment and production process
4, Professional technical team with 24 fully experienced engineers.
Bulk Cement Tanker Semi trailer , Fuel Tanker Semi Trailer, Flatbed Semi Trailer, Skeleton Semi Trailer, Lowbed Semi Trailer, Dump Trailer,dolly trailer ,Fence Semi-trailer,Side Wall Semi-trailer, full trailer, Flour tanker trailer, ISO bulk tanker container
etc.
Of course,welcome to visit our factory.we are located in Liangshan, Shandong Province, a face-to-face conversation can serve you better.
10-30 days after receive the deposit, depend on the order quantity.
T/T and L/C payment are acceptable.
Normally we accept FOB, CFR, CIF.
Q7,Is it available to print our own brand on the vehicle?
Yes, we accept to do OEM for well known distributors and dealers.
Q8,What information should I let you know if I want to get a quotation?
First, please let us know which kind of trailers you want.
Second, Please let us know what kind of cargo that you will load with our trailers? Loading capacity? road condition?
Third, what trailer size is OK for you, and do you want customized product.
Four, your truck specs, like 2.0 or 3.5 inch fifth wheel ? fifth wheel height? 6*4 or 4*2 truck will use ?
Five, order quantity, destination port The more information you will provide, the more accurate and competitive price we can offer. Yes, we're looking for the agent all over the world, please contact us for further discussion.
