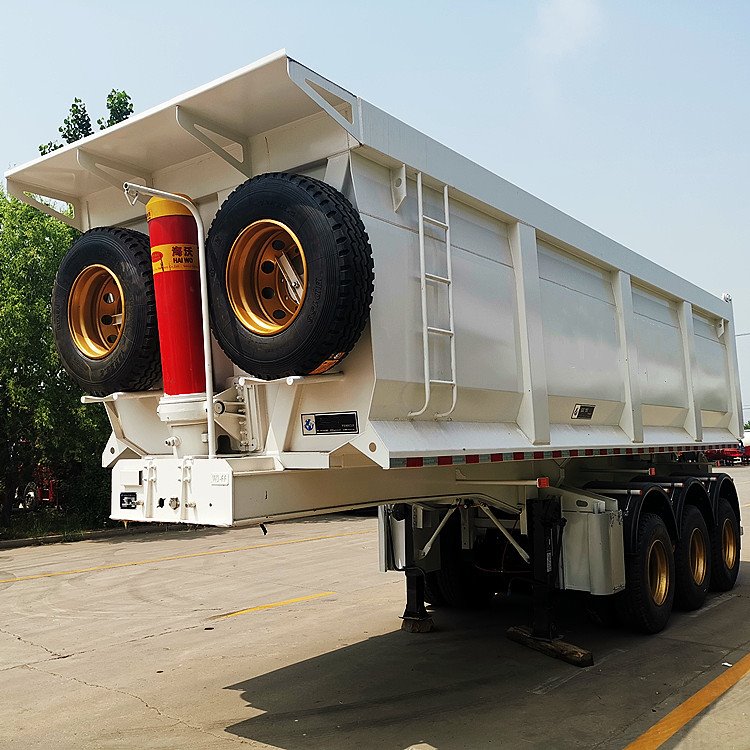

Rear Tipper Semi Trailer
The dangerous performance advantage of the rear dump semi-trailer is reflected in its strong load-bearing capacity. It is designed based on strict considerations for different transportation needs. By using high-strength structures to build the frame and cargo box structure, it can withstand huge cargo weights. Generally speaking, the rated load capacity of common rear dump semi-trailers is enough to accommodate tons, and some large-scale special-sized loads can even carry this strong load-bearing capacity, making it possible to transport large quantities of goods at one time and reduce the number of transports when transporting large bulk warehouses such as sand and gravel, coal, ore, thus greatly improving transportation efficiency and reducing unit transportation costs. Rear dump semi-trailers are mainly used in large mines and are suitable for construction and transportation of coal, ore, earthwork, materials and other bulk and bulk cargoes.
Product Introduction
Product introduction
Rear tipper semi trailer is mainly used in large mines and it is suitable for the transportation of bulk and scattered goods such as coal, ore, earthwork, and construction materials.
The chassis of rear tipper semi trailer adopts special chassis produced by various chassis manufacturers, with advanced technology and reliable performance. The advanced software optimizes the design of the products to meet the individual needs of customers. The process tooling of flow operation ensures the excellent quality of products.The rear dump trailer has become an ideal choice in the field of logistics and engineering construction due to its strong carrying capacity, efficient unloading system, flexible operating performance, reliable structural design and wide range of application scenarios. If you are looking for an efficient and reliable transportation equipment, the rear dump trailer is definitely your best choice.
Product description
Rear tipper semi trailer adopt laser cutting machine, so increasing our production speed and high precision.
The suspension of rear tipper semi trailer is automatically positioned and welded to make it firm.
Our rear tipper semi trailer adopt automatic welding, fast speed, beautiful welding seam.
For painting, the rear tipper semi trailer use electrophoresis primer and powder spray coating, the surface is smooth and flat, ensuring uniform color in the later stage, without rust.
Product Specification
|
Rear tipper Specification |
|
|
Product name |
Rear tipper semi Trailer |
|
Material |
Q345B carbon steel |
|
Color |
Customers Optional |
|
Usage |
Transport Bulk Cargo,Transport sand,stone |
|
Main Beam |
Q345B carbon steel "H" beam |
|
Lifting System |
HYVA Brand |
|
Loading capacity |
80tons |
|
Tare weight |
12tons |
|
Painting |
Sand Blasting, Anti corrosive Prime |
|
Dimension |
9500X2500X3700mm |
|
Floor |
6mm Checkered Plate |
|
Lighting |
LED Light |
|
Suspension |
Mechanical Suspension |
|
Axle |
20 Ton Fuwa/BPW |
|
Tire |
12R20 |
|
Landing Gear |
Standard 28Ton |
|
King pin |
3.5"(90mm) |
|
Brake System |
Dual Line Braking System |
|
Rim |
8.0-20 |
|
Leaf Spring |
90(W)mm*16 (Thickness)mm*10(Layer) |

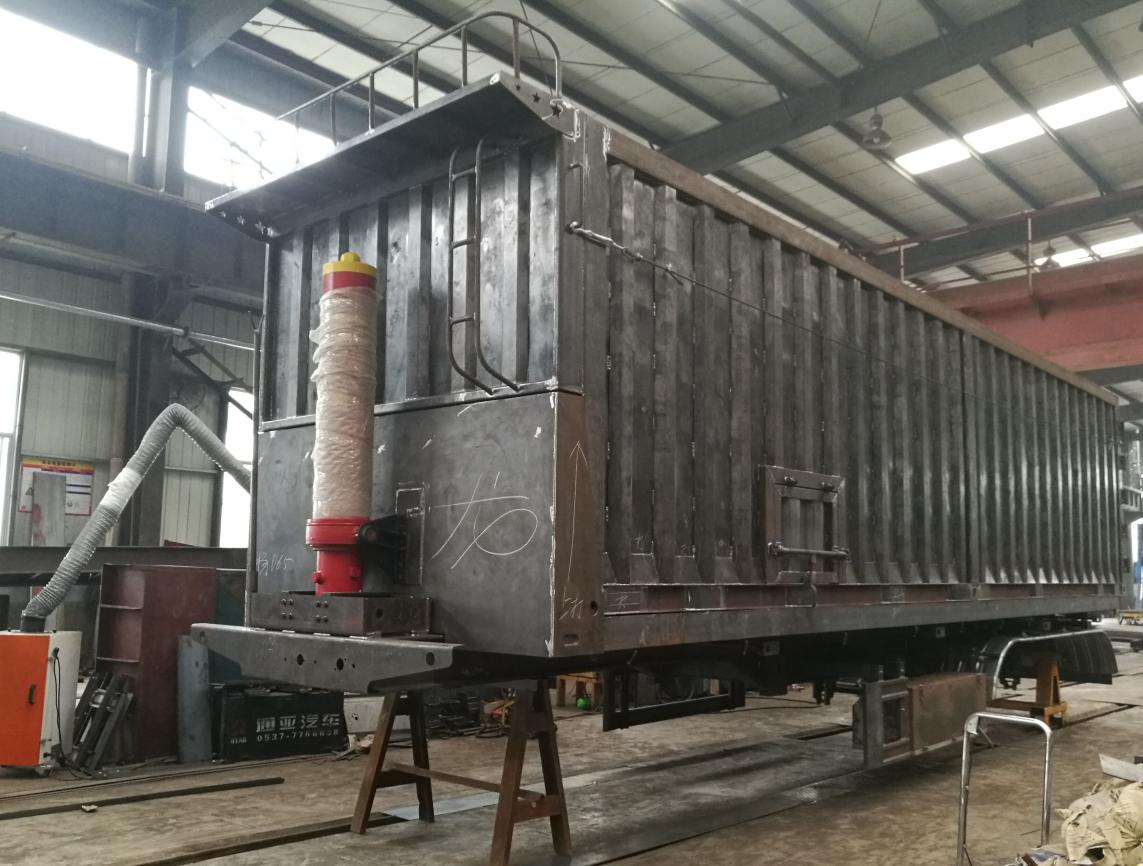

Product in factory

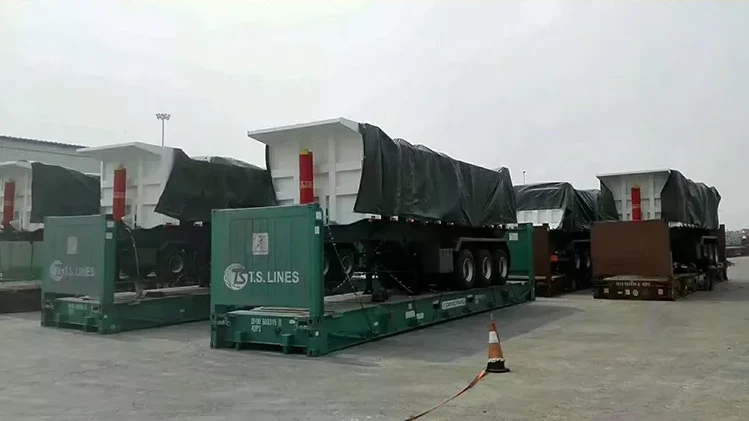

Transport method
