40ft Container Flatbed Truck Trailer
We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product Introduction
Product introduction

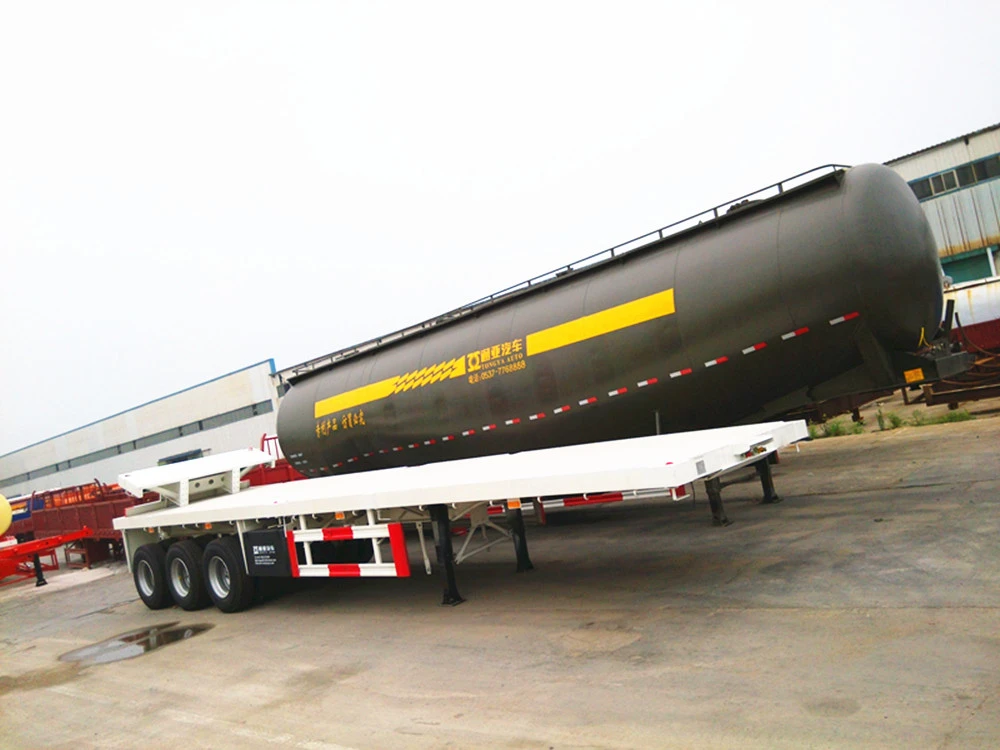

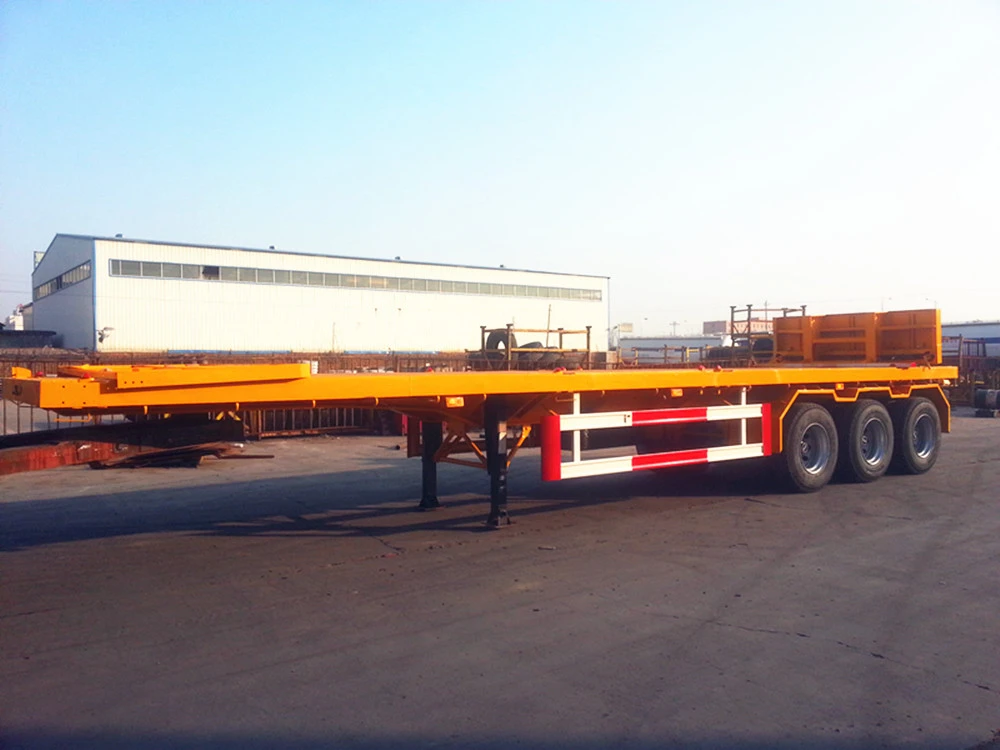

40ft container flatbed truck trailer is used for loading container or dry cargos.
Main beams welded by advanced large-scale special welding machines automatically.
Tongyada brand and CCC/ISO9001 certificates approved.
We adopt famous brand parts for our trailers, ensuring good characters.
We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product description
Our 40ft container flatbed truck trailer: Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trailers safely and cost-efficiently. TONGYA is one of the biggest heavy trailer manufacturer in China, also the leading for exporting, specialized in the researching, developing and manufacturing of various trailers. container flatbed semi trailer, 40ft is the most popular model. It is designed for carrying 40ft container, 20ft container and other dry bulk cargo. In general, the flatbed trailer suit for carrying loads 40 ton~60 tons weight. According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the color can also be customized. China Hot-sale trailer with durable quality. 12 sets container locks for carrying 1 unit 20ft, 40ft, containers and 2 units 20ft containers. Rope hooks help fasten cargo, suitable for multi cargo transporting.
Product Specification
|
Model |
40ft container flatbed truck trailer |
|
Overall size |
12,500mm*2,500mm*1,550mm |
|
Tare weight |
7,200kgs |
|
Payload |
45,000kgs, we can also design as per your requirements |
|
I Beam & Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm, width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 16mm, width 140mm |
|
Axle |
Tongya brand, 13T/axle |
|
Number of axles |
3 axles |
|
Suspension |
Heavy duty mechanical suspension |
|
Floor |
3mm diamond steel plate |
|
King Pin |
JOST brand 2” Bolt-in King Pin |
|
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
Wheel Rim |
9.0-22.5, 13 pieces |
|
Tire |
12R22.5, 13 pieces |
|
Spare Tire |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring braking chambers; two pieces of 45L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Tool box |
One standard tool box (Size can be chosen freely)(equipped with 1 unit tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
