40ft flatbed truck trailer
40ft flatbed truck trailer is used for loading container or dry cargos. Main beams welded by advanced large-scale special welding machines automatically. Tongyada brand and CCC/ISO9001 certificates approved. We adopt famous brand parts for our trailers, ensuring good characters. We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Product Introduction
China Hot-sale 40ft flatbed truck trailer with durable quality
40ft flatbed truck trailer is used for loading container or dry cargos.
Main beams welded by advanced large-scale special welding machines automatically.
Tongyada brand and CCC/ISO9001 certificates approved.
We adopt famous brand parts for our trailers, ensuring good characters.
We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.
Our 40ft flatbed truck trailer: This flatbed trailer train is a hot seller in China, for transporting heavy containers in wicked road conditions. With more than 20 years' exporting experience, our foreign markets are more than 40 countries and regions, such as Southeast Asia, Africa, Middle East, South America, etc. Set up a post-doctoral research station, take part in drawing up national and industrial standards, leading in new trend of technical design, raw material utilization, and equipment & craft, developing on innovation, always been imitated, but never been exceeded. Always developed under the concept of safety, efficient, pro-environment, intelligent adaptability. etc. widely master kinds of road condition, kinds of loading resources, kinds of transport environment at home and abroad, reasonably optimize the structure, offer quality and tailored products for professional customers, really embody our high quality. Create TONGYA unique heart-pleasing service, offer the trailored solution for the customer, and make sure the quality and create more value for customer.
|
Model |
40ft flatbed truck trailer |
|
Overall size |
12,500mm*2,500mm*1,550mm |
|
Tare weight |
7,200kgs |
|
Payload |
45,000kgs, we can also design as per your requirements |
|
I Beam & Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm, width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 16mm, width 140mm |
|
Axle |
Tongya brand, 13T/axle |
|
Number of axles |
3 axles |
|

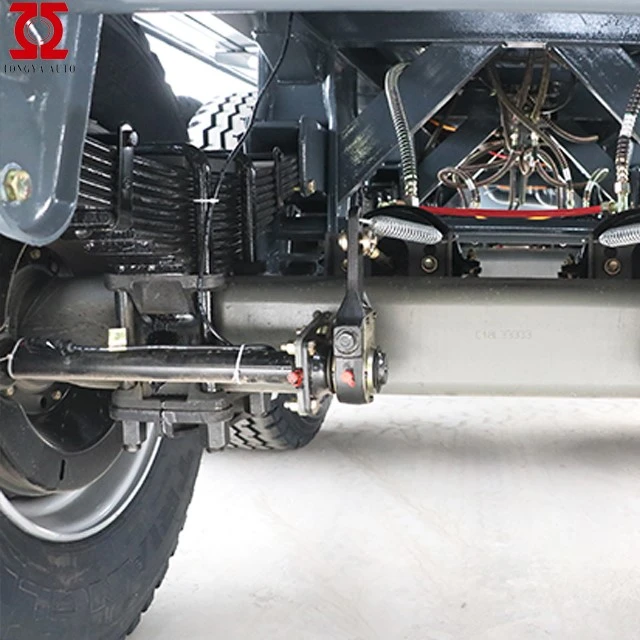

Suspension |
Heavy duty mechanical suspension |
|
Floor |
3mm diamond steel plate |
|
King Pin |
JOST brand 2" Bolt-in King Pin |
|
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
Wheel Rim |
9.0-22.5, 13 pieces |
|
Tire |
12R22.5, 13 pieces |
|
Spare Tire |
2 units |
|
Twist Lock |
12 units |
|
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring braking chambers; two pieces of 45L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Tool box |
One standard tool box (Size can be chosen freely)(equipped with 1 unit tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
