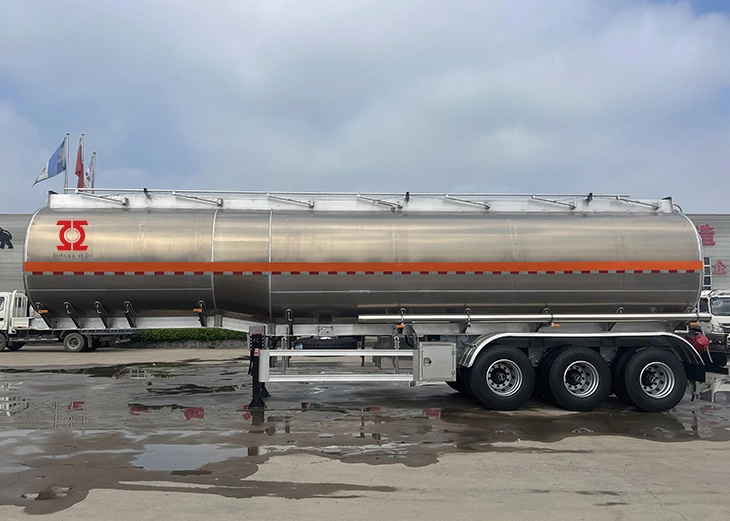

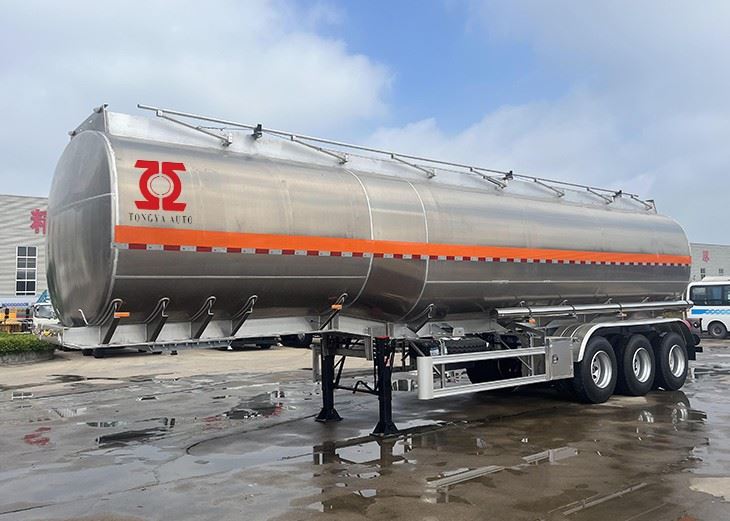

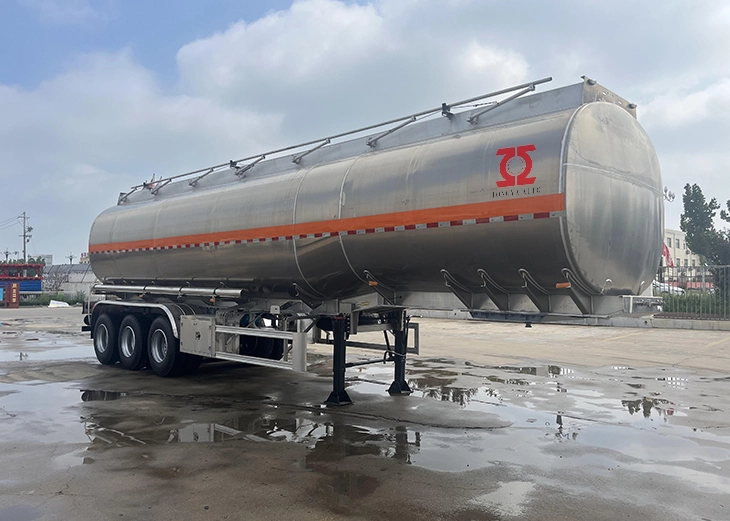

Aluminum Fuel Tanker Semi Trailer
The tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.
Product Introduction
The tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.
Tank section style：Perfect circle;oval ;Rectangular circle
Tank body style: Straight style; Goose-neck style;full trailer style; V-type without stringer style etc.
Aluminum Fuel Tanker Semi Trailer Advantages:
Basic Information |
||
| Outer size | 12000x2500x3600mm | |
| Design Capacity (gross) | 45000L | |
| Tare weight (±3%) | 7500KG | |
| Type | Tri-axle semi-trailer | |
Tank assembly |
||
| Compartment | 2-6 sets | |
| Front/Rear end plate | Material | aluminium alloy / stainless steel |
| Front/Rear end plate | thickness | 7mm |
| Tank body (with insulating layer) | Material | aluminium alloy / stainless steel |
| Thickness | 6mm | |
| Wave-proof plate thickness | 7mm | |
| Manhole cover | Diameter | 500mm |
| Material | Aluminum Alloy | |
| Number | 2-6pcs | |
| Discharging valve | Diameter | 3 inch |
| Material | Aluminum Alloy API valve | |
| Number | 2-6 pcs | |
| Bottom safety valve | Aluminum Alloy 4 inch | |
| Discharging pipe | Diameter | 3 inch |
| Type | Rubber hose,2pcs | |
| Cat walk | Standard | |
Chassis |
||
| Axle | Brand | Fuwa or Tongya brand |
| Type | 13t | |
| Number | 3pcs | |
| Rim | Type | 11.5-22.5 or 9.0-22.5 |
| Number | 6/12 pcs | |
| Tire | Brand | Triangle brand |
| Type | 385/65R22.5 or 12R22.5 | |
| Number | 6/12pcs | |
| Suspension | Air suspension / Mechaniacal suspension | |
| Spring leaf | Leaf width | 90mm |
| Leaf thickness | 13mm | |
| Layer/set | 10 Layer | |
| King pin | Type | Bolts type |
| Diameter | 2 inch | |
| Brake system | Air tank | 45L air tanks |
| Brake chamber | WABCO RE6 relay valve; T30/30+T30 Spring brake chamber | |
| ABS | Optional | |
| Landing gear | Brand | JOST |
| Type | A300C | |
The tanker accessories include Euro standard manhole cover ,API adaptor valve, Gravity drop coupler,dust cap;bottom valve,Vapor vent valve;vapor adaptor valve;vapor recovery joint;optic sensor,optic socket,optic sensor tester;fuel predictor.The internal tank body of the tank trailer is fitted with a corrugated reinforced wave guard every 2m. When the brakes are applied when the tank is fully loaded with oil, the wave guard can reduce the impact of the oil on the tank body and play a safe protective role. The whole tank body is fully automatic and seamlessly welded, 100% passing the strict testing requirements such as liquid penetration, air pressure testing and flaw detection, the tanker semi-trailer is safer to run and the quality is guaranteed.

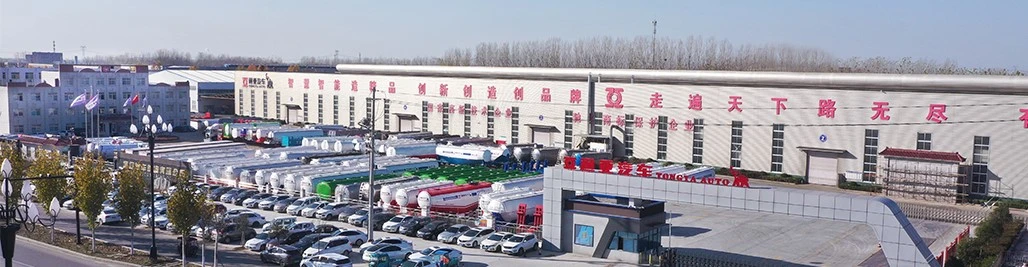

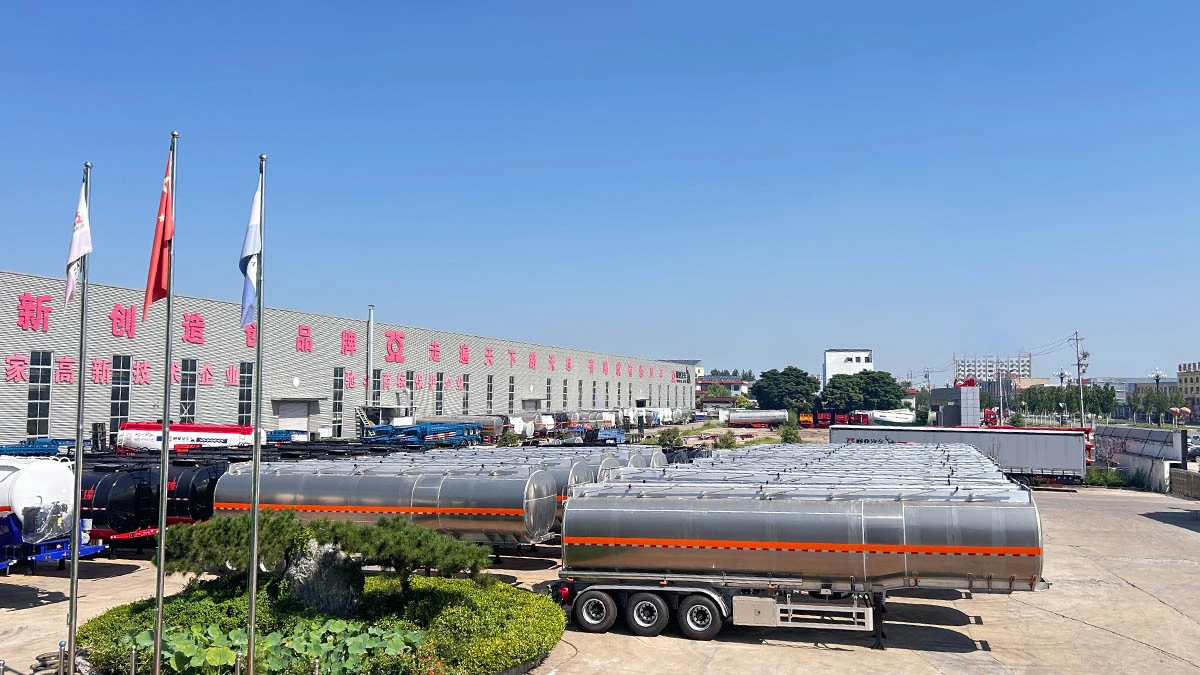

Our Factory--TONGYA AUTOMOBILE CO.,LTD is China leading semi trailer and tanker trailer manufacturer since 1982 ! Engaged design,manufacturing and sales of semi trailer and spare parts together.
