China 60000litres Fuel Tank Truck Trailer Manufacturer
1.We are manufacturer, According to clients' requirements, we can customize different volumes and compartments. 2. Our tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life. 3. We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.
Product Introduction

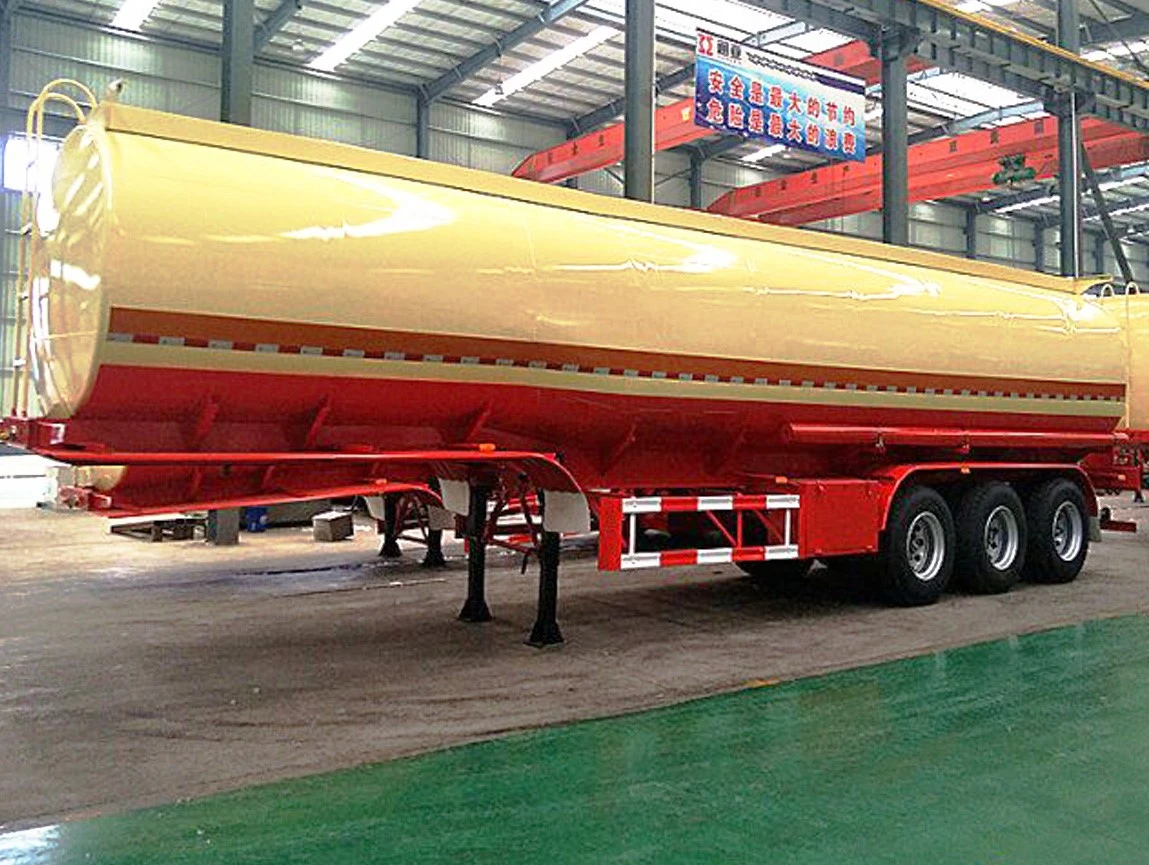

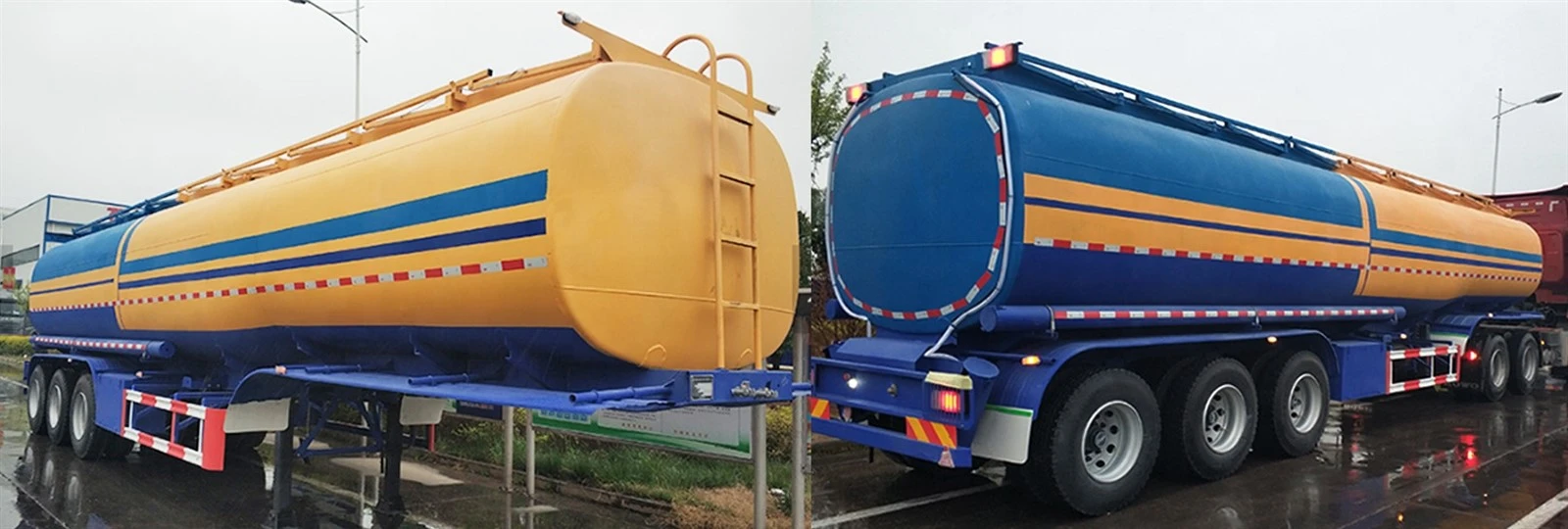

China 60000litres fuel tank truck trailer manufacturer

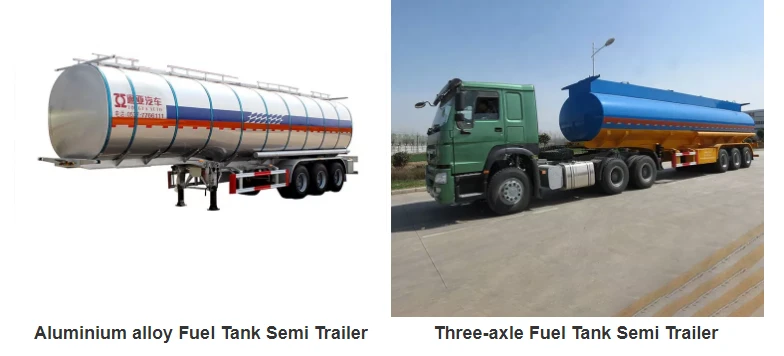

Apply for transporting Fuel, JET A-1, Water, Liquid chemical, Crude oil, Food oil etc. is widely used in oil depot, petrol station,oil field, chemical factory, food oil factory, bitumen factory etc.Loading capacity between 20.000 ltr to 57.000 ltr for 3 axle fuel tanker semi-trailer. Compartment quantities can be arranged according to the customer request on 3 axle fuel tanker semi-trailer.
Tank section style：Perfect circle;oval ;Rectangular circle
Tank body style: Straight style; Goose-neck style;full trailer style; V-type without stringer style etc.
China 60000litres fuel tank truck trailer specification :
|
Basic Information |
||
|
Outer size |
13500x2500x3780mm |
|
|
Design Capacity (gross) |
60000L |
|
|
Tare weight (±3%) |
13000KG |
|
|
Type |
Tri-axle semi-trailer |
|
|
Coupling height |
Unladen 1320 mm |
|
|
Tank assembly |
||
|
Compartment |
Optional |
|
|
Front/Rear end plate |
Material |
Carbon steel |
|
Front/Rear end plate |
thickness |
6mm |
|
Tank body (with insulating layer) |
Material |
Carbon steel |
|
Thickness |
5mm |
|
|
Wave-proof plate thickness |
4mm |
|
|
Manhole cover |
Diameter |
500mm |
|
Material |
Factory standard |
|
|
Number |
2-6pcs (optional ) |
|
|

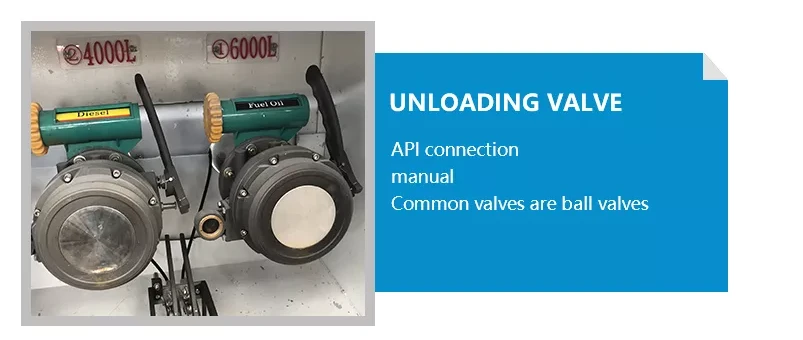

Discharging valve |
Diameter |
3 inch |
|
Material |
Aluminum Alloy API valve |
|
|
Number |
2-6 pcs(optional ) |
|
|
Bottom safety valve |
Aluminum Alloy 4 inch |
|
|
Discharging pipe |
Diameter |
3 inch |
|
Type |
Rubber hose,2pcs |
|
|
Cat walk |
Standard |
|
|
CHASSIS
|
||
|

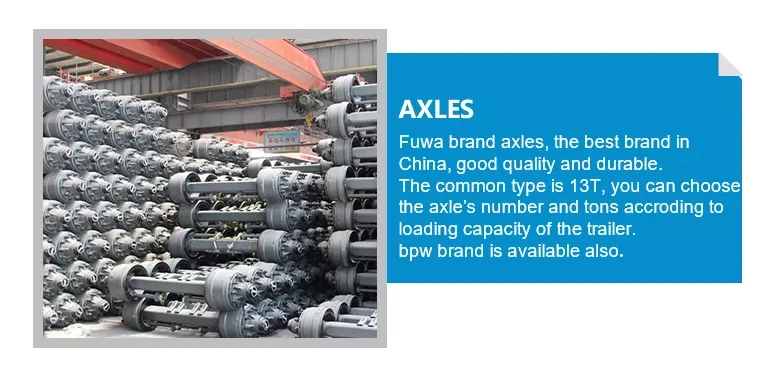

Axle |
Brand |
Fuwa |
|
Type |
13t |
|
|
Number |
3pcs |
|
|
Rim |
Type |
9.0-22.5 |
|
Number |
/12 pcs |
|
|
Tire |
Brand |
Triangle brand |
|
Type |
12R22.5 |
|
|
Number |
12pcs |
|
|

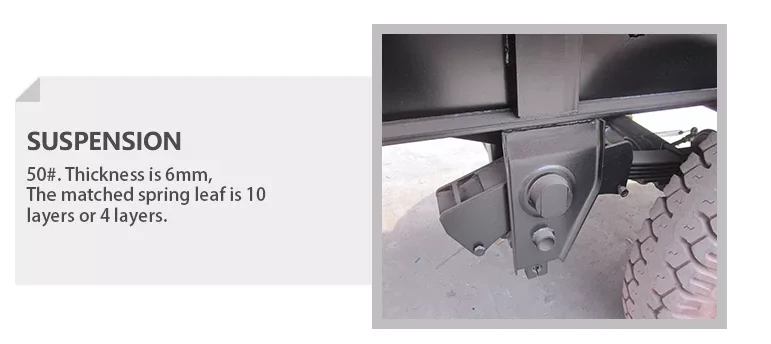

Suspension |
Mechaniacal suspension / air suspension can be optional |
|
|
Spring leaf |
Leaf width |
90mm |
|
Leaf thickness |
13mm |
|
|
Layer/set |
10 Layer |
|
|
King pin |
Type |
Bolts type |
|
Diameter |
2 inch |
|
|
Brake system |
Air tank |
45L air tanks |
|
Brake chamber |
WABCO RE6 relay valve; T30/30+T30 Spring brake chamber |
|
|
ABS |
Optional |
|
|

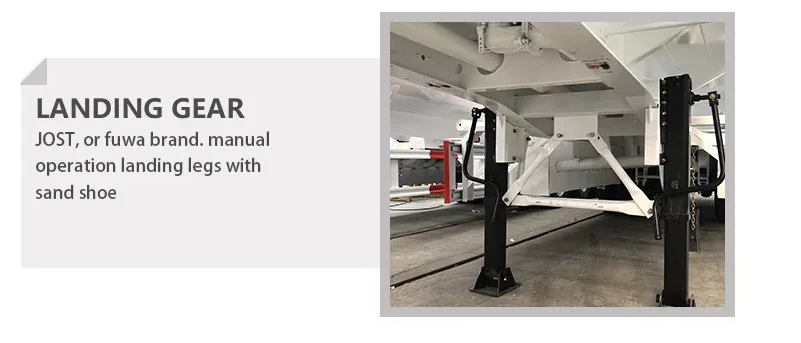

Landing gear |
Brand |
JOST |
|
Type |
A300C |
|
60000litres fuel tank truck trailer accessories:
The tanker accessories include Euro standard manhole cover ,API adaptor valve, Gravity drop coupler,dust cap;bottom valve,Vapor vent valve;vapor adaptor valve;vapor recovery joint;optic sensor,optic socket,optic sensor tester;fuel predictor.The internal tank body of the tank trailer is fitted with a corrugated reinforced wave guard every 2m. When the brakes are applied when the tank is fully loaded with oil, the wave guard can reduce the impact of the oil on the tank body and play a safe protective role. The whole tank body is fully automatic and seamlessly welded, 100% passing the strict testing requirements such as liquid penetration, air pressure testing and flaw detection, the tanker semi-trailer is safer to run and the quality is guaranteed.

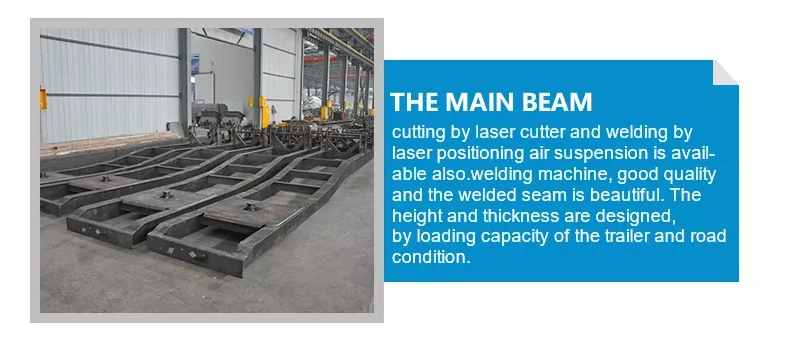

Production progress:
